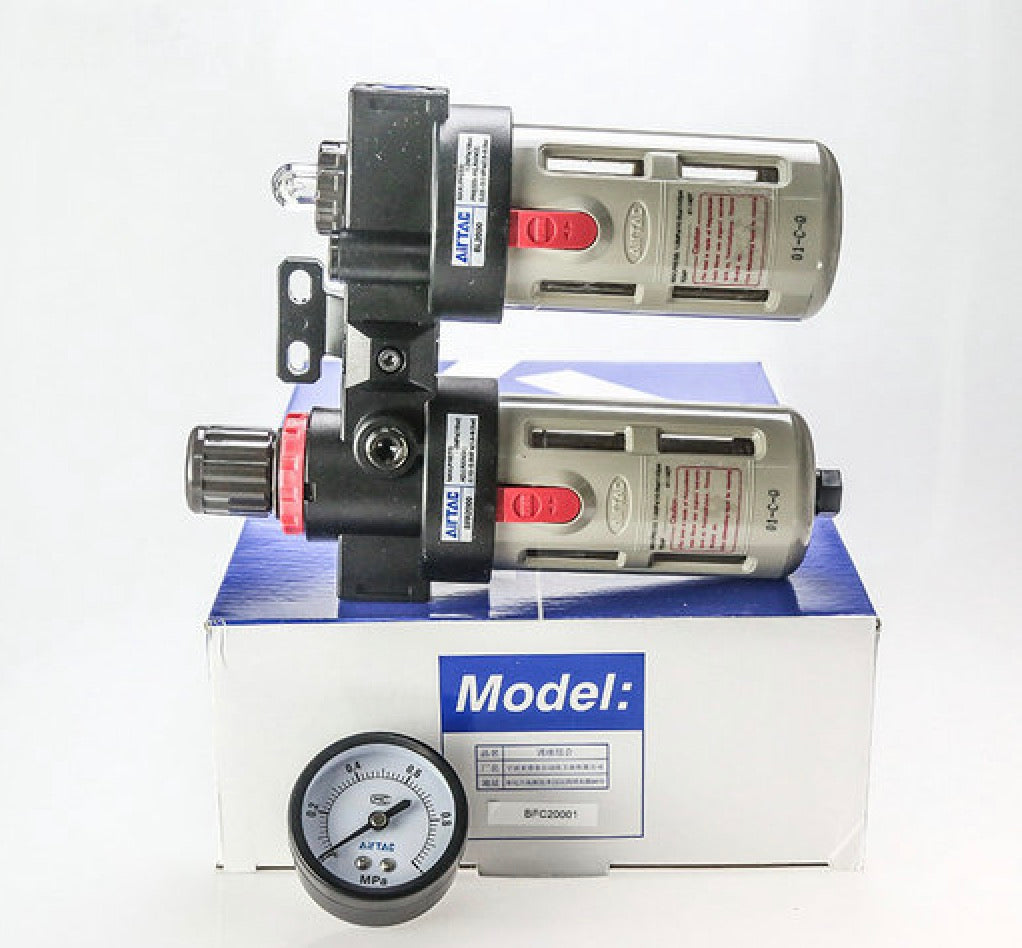

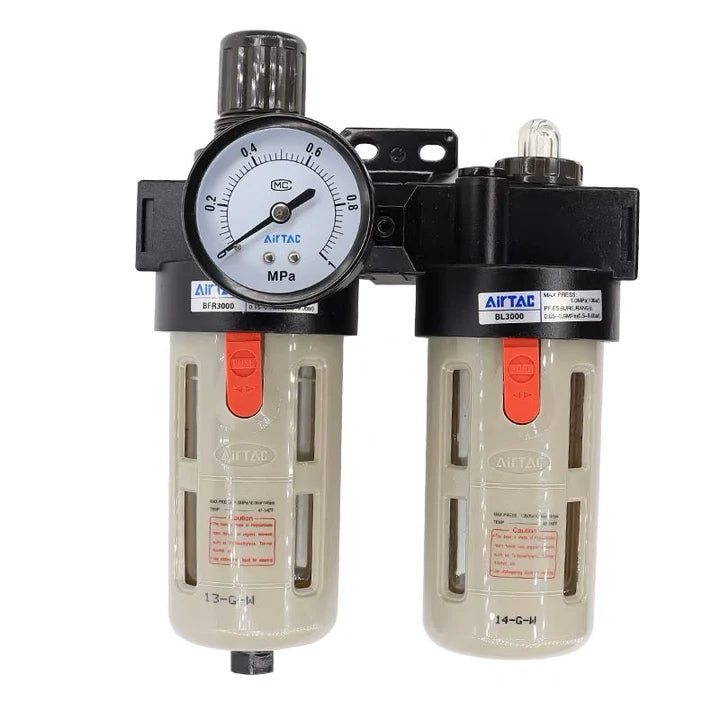

AirTAC BFC3000 F.R.L. Unit - 3/8" PT Air Filter Regulator Lubricator Combo

Description

Series: B series of two pieces,Nozzle caliber: 3/8",Drainage mode: differential pressure drainage type,Type: Standard type (0.9MPa),Pressure gauge: not attached,Filtration accuracy: 40μm level,Tooth type: PT tooth,

Port Size: 3/8" PT

Components: Filter (BF3000), Regulator (BR3000), and Lubricator (BL3000)

Pressure Range: 0.15~0.9 MPa (20~130 psi)

 Filtration Grade: 40μm or 5μm options available

 Drain Type: Semi-auto drain as standard

Click to download the Airtac catalog

Product Features

1.The structure is delicate and compact, which is convenient for installation and application.

2.The pressed-in self-locking mechanism can prevent the abnormal movement of the set pressure caused by external interfere.

3.The pressure loss is low and the efficiency of water separating is high.

4.The quantity of oil dripping can be directly observed through transparent check dome.

5.In addition to standard type, lower pressure type is optional (The highest adjustable pressure is 0.4MPa).
