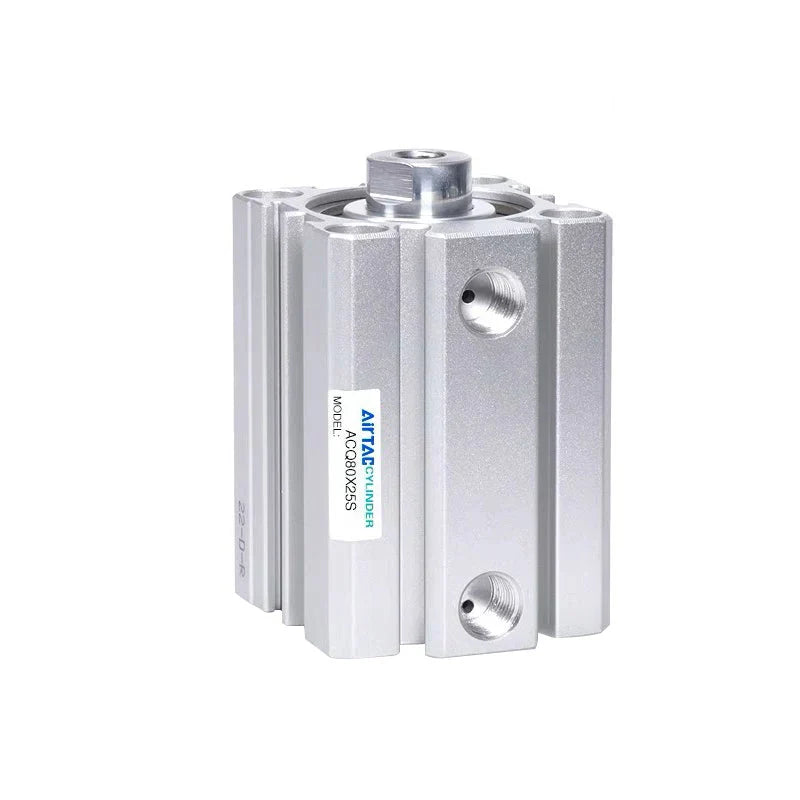

AirTAC ATQ12X20 Single-Acting Compact Cylinder, 12 mm Bore x 20 mm Stroke
AirTAC ATQ12X20 Single-Acting Compact Cylinder, 12 mm Bore x 20 mm Stroke
Couldn't load pickup availability
The AirTAC ATQ12×20 is a single-acting compact air cylinder with a 12 mm bore and 20 mm stroke. The spring extends the rod when air pressure is released.
Product Features
- The compact body helps fit the cylinder into assemblies with limited space along the stroke axis.
- Retaining rings secure the covers and the piston is riveted to the rod.
- The honed bore provides a wear-resistant running surface. An extended front cover guides the piston rod.
- The body has grooves for mounting a compatible position sensor on a magnet-equipped cylinder.
Technical Specifications
| Order code | ATQ12×20 |
|---|---|
| Action | Single acting, air retracts the rod and the spring extends it |
| Bore | 12 mm |
| Stroke | 20 mm |
| Magnetic piston | No |
| Rod end | Female thread |
| Mounting configuration | Basic cylinder mounting |
| Air ports | M5 × 0.8 |
| Working medium | Compressed air filtered through a 40 µm element |
| Operating pressure | 0.2–1.0 MPa |
| Proof pressure | 1.5 MPa |
| Ambient temperature | −20 to 70 °C |
| Operating speed | 50–500 mm/s |
| Cushioning | Fixed end bumpers |
| Catalog stroke tolerance | +1.0 / 0 mm |
Before You Order
Use the ACQ drawing for the exact bore and rod-end option. Check mounting-hole depth, rod-end engagement and fitting clearance before selecting a replacement.
AirTAC lists feet, flanges and clevis hardware by cylinder configuration. Use the accessory drawing to check the match and keep side load off the piston rod.
Confirm the required spring-return direction against the pneumatic symbol before ordering.
