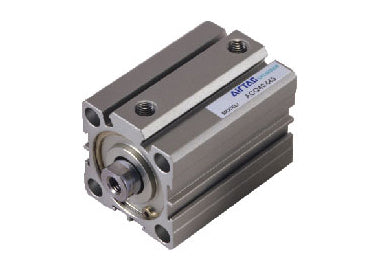

Airtac ACQ: Compact Air Cylinder, Double Acting - ACQ100X45SG  Thin Type Air Cylinder

Compact pneumatic cylinder, double acting, 100mm bore, 45mm stroke, with magnet, rod with female thread, G thread typeAirtac ACQ cylinders are a functional replacement for the SMC CQ2 series cylinders.

Product Features:

1.JIS standard is implemented.
2.C clip is adopted to connect the cylinder body and back cover or front cover, and riveted structure is adopted to connect piston and piston rod to make it compact and reliable.
3.The internal diameter of the body is treated with rolling followed by the treatment of hard anodizing, forming an excellent abrasion resistance and durability.
4.The seal of piston adopts heterogeneous two-way seal structure. It has compact dimension and the function of grease reservation.
5.Compact structure can effectively save installation space.
6.There are magnetic switch slots around the cylinder body, which is convenient to install inducting switch.
7.Installing accessories with various specifications are optional.



The Airtac ACQ Series Compact Pneumatic Cylinder
The Airtac ACQ Series Compact Pneumatic Cylinder is a space-saving actuator engineered for high-efficiency performance in automation systems and industrial machinery.

Featuring a short-stroke design and double-acting operation, the ACQ Series offers powerful linear motion within a minimal installation space — making it ISO-interchangeable with major brands (e.g., SMC CQ2 type).

🔹 Product Overview
The Airtac ACQ pneumatic cylinder utilizes advanced sealing technology to ensure stable motion and long service life. Its compact body allows installation in positions where space is limited, while maintaining force output equivalent to standard cylinders. The anodized aluminum barrel and stainless steel piston rod provide excellent wear and corrosion resistance.

🔸 Key Features
• Compact & Lightweight Design – Ideal for small or narrow installation spaces.
• Double-Acting Operation – Provides balanced output force in both directions.
• Short Stroke Cylinder – Ensures precise and efficient linear movement.
• ISO Interchangeable Dimensions – Fully compatible with SMC CQ2 and other standard compact cylinders.
• Optional Magnetic Piston – Supports sensor installation for easy position sensing.
• Multiple Mounting Options – Face mount, flange mount, or foot mount available.

🔹 Technical Specifications (Typical Range)

Specification	Description
Acting Type	Double Acting
Bore Size	Ø 12 – Ø 100 mm
Stroke Range	5 – 100 mm (Short Stroke)
Pressure Range	0.1 – 1.0 MPa
Temperature Range	–5 °C to +70 °C
Body Material	Hard-Anodized Aluminum Alloy

🏭 Common Applications
- Electronics: Component manufacturing and assembly equipment.
- Packaging: Labeling machines and small automation units.
- Robotics: Compact pick-and-place systems and grippers.
- Tooling: Clamping and positioning devices in tight mounting conditions.

🔹 Advantages
- Minimal machine footprint without sacrificing power.
- High compatibility for easy replacement of existing standard compact cylinders.
- Durable construction for continuous, high-frequency industrial use.

🔸 Recommended Accessories
For a complete setup, integrate with Airtac Solenoid Valves (4V series), FRL Units, and Magnetic Sensors.
