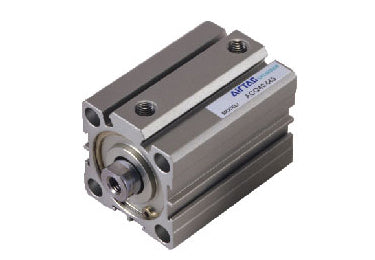

Airtac ACQ: Compact Air Cylinder, Double Acting - ACQJ25X20-10SB

Pneumatic cylinder, compact, double acting, 25mm bore, 20mm stroke, 10mm adjustable stroke, with magnet, rod with male thread, PT thread typeAirtac ACQ cylinders are a functional replacement for the SMC CQ2 series cylinders.

1.JIS standard is implemented.
2.C clip is adopted to connect the cylinder body and back cover or front cover to make it compact and reliable.
3.The internal diameter of the body is treated with rolling followed by the treatment of hard anodizing, forming an excellent abrasion resistance and durability.
4.The seal of piston adopts heterogeneous two-way seal structure. It has compact dimension and the function of grease reservation.
5.Compact structure can effectively save installation space.
6.There are magnetic switch slots around the cylinder body, which is convenient to install inducting switch.
