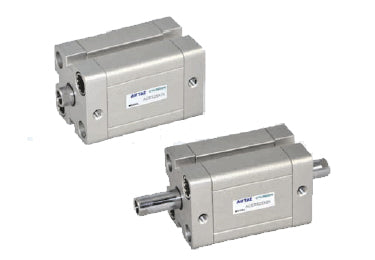

Airtac ACE: Compact Air Cylinder, Double Acting - ACE50X120SBT

Compact pneumatic cylinder, double acting, 50mm bore, 120mm stroke, without magnet, rod with male thread, NPT thread typeProduct Features:

1.In accordance with ISO21287 standard, the mounting size is vogue.
2.The cylinder body connects with the threads of the front and back cover, forming high strength and convenient maintenance.
3.The internal diameter of the body is treated with rolling followed by the treatment of hard anodizing, forming an excellent abrasion resistance and durability.
4.The seal of piston adopts heterogeneous two-way seal structure. It has compact dimension and the function of oil reservation.
5.Compact structure can effectively save fifty percent installation space with ISO15552 standard cylinder.
6.There are magnetic switch slots around the cylinder body, which is convenient to install inducting switch.
7.Bumper is available and it can availably absorb excrescent energy.
8.Installing accessories with various specifications is optional.
