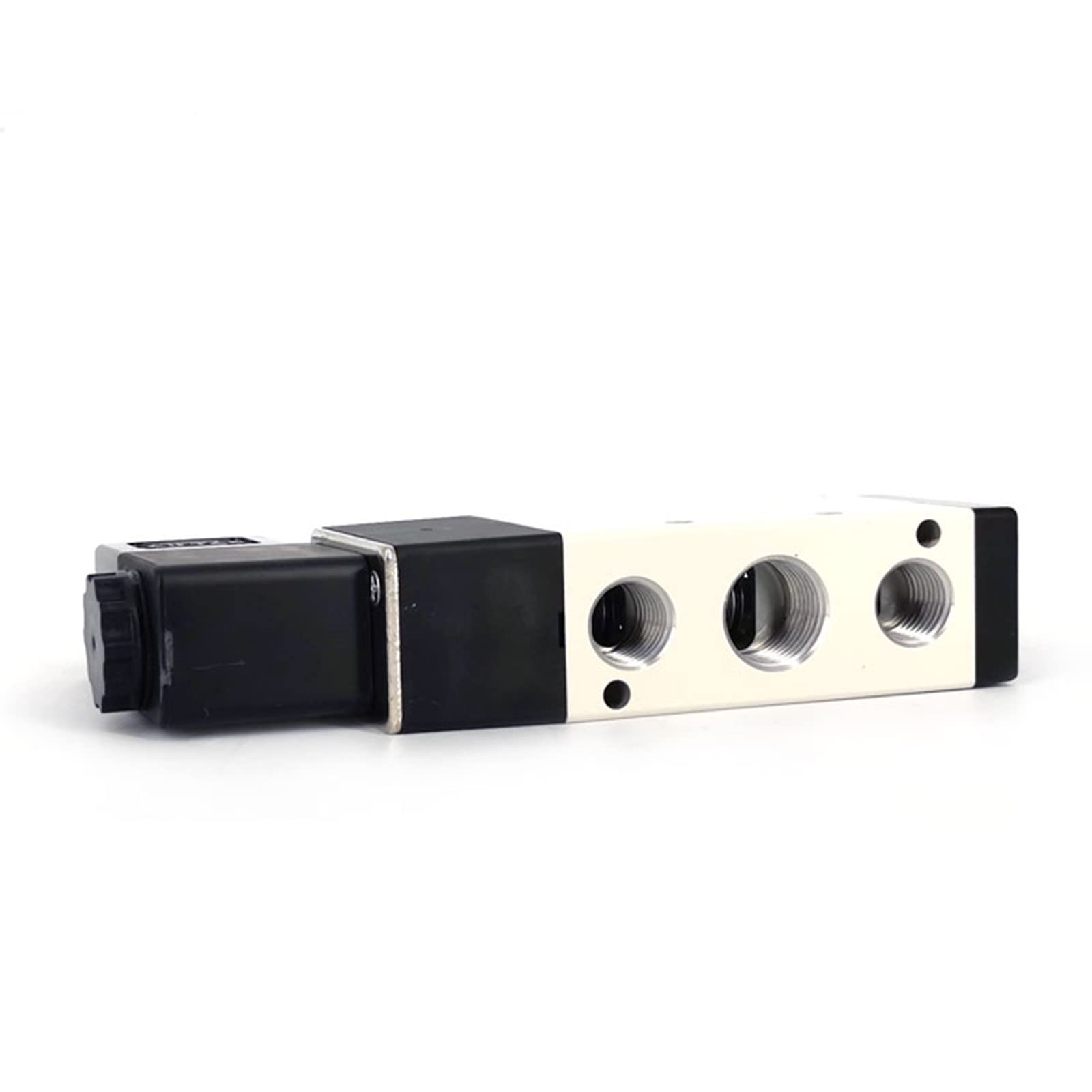

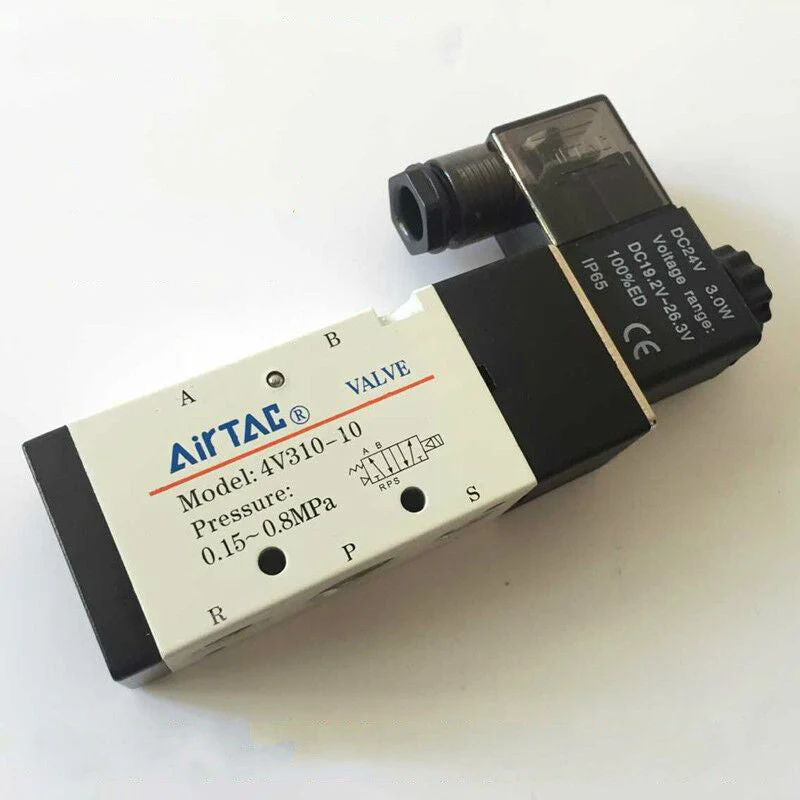

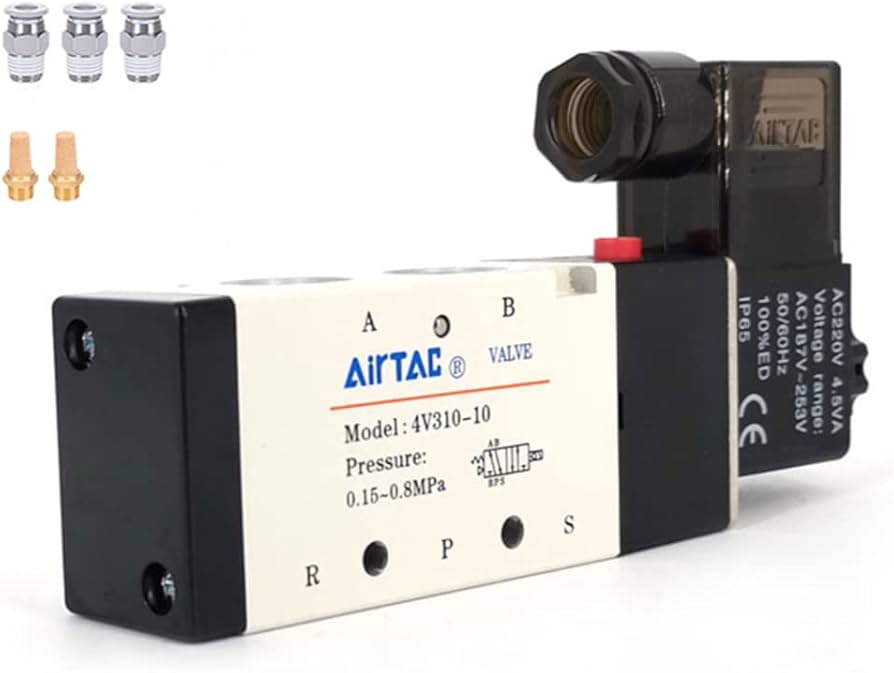

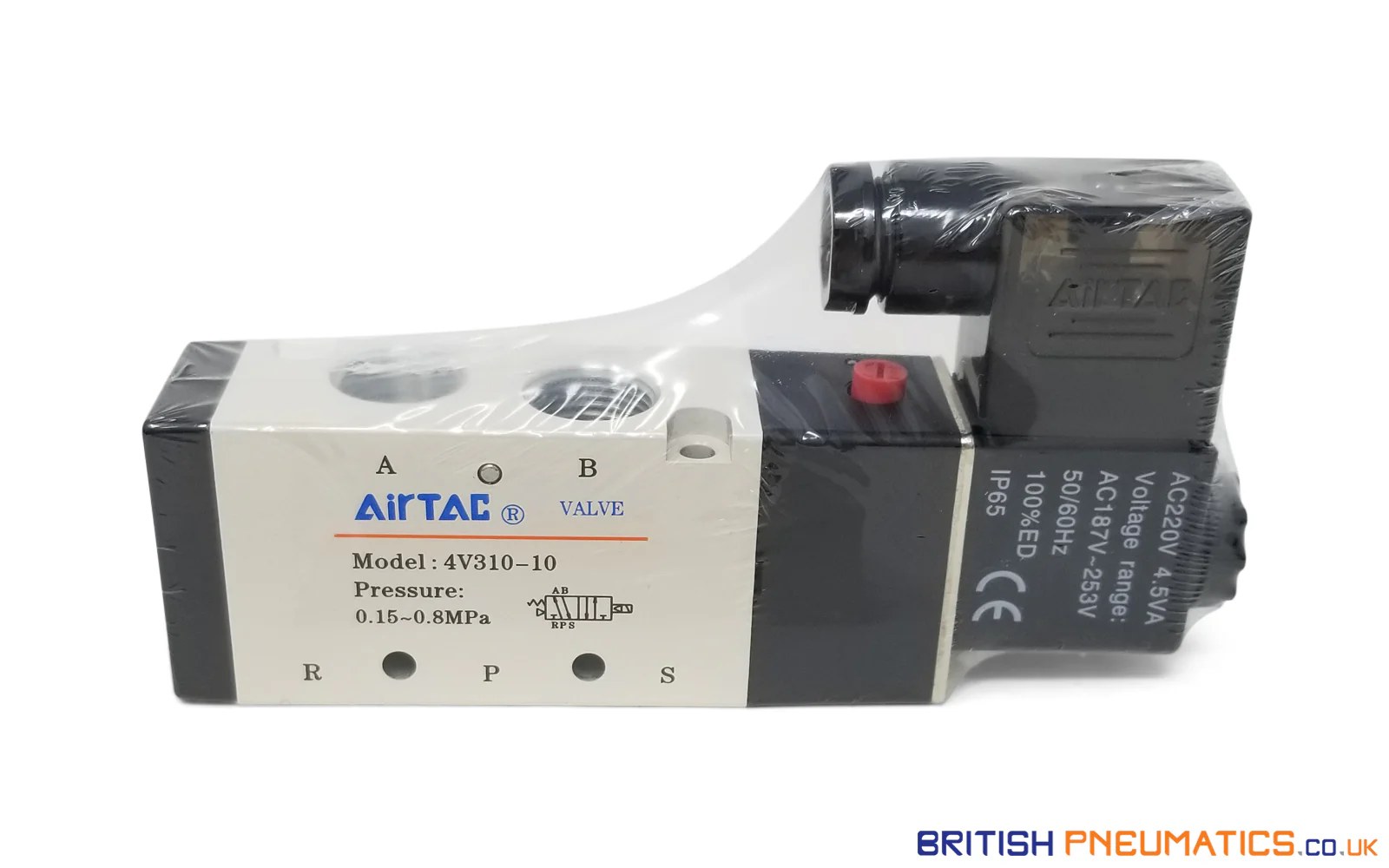

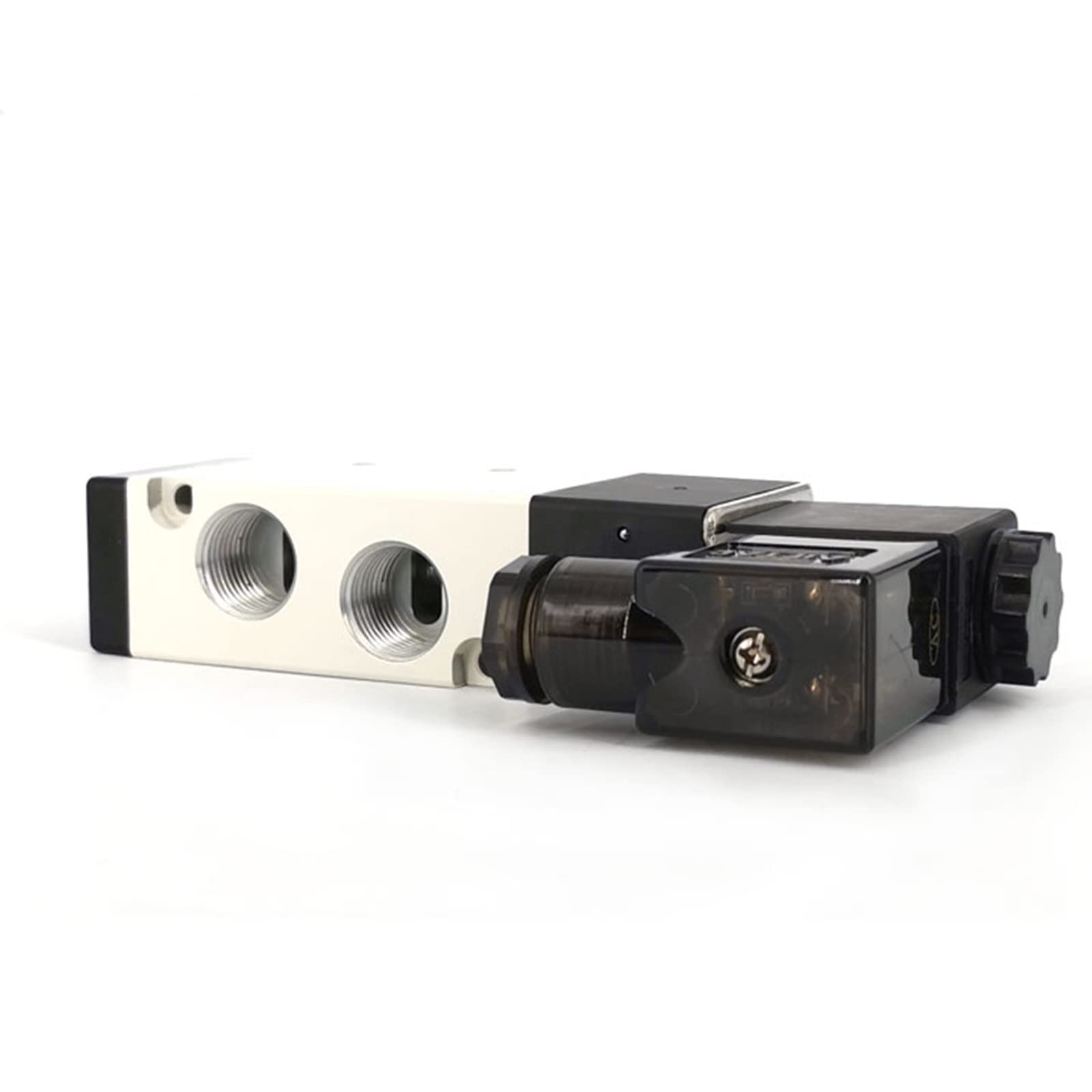

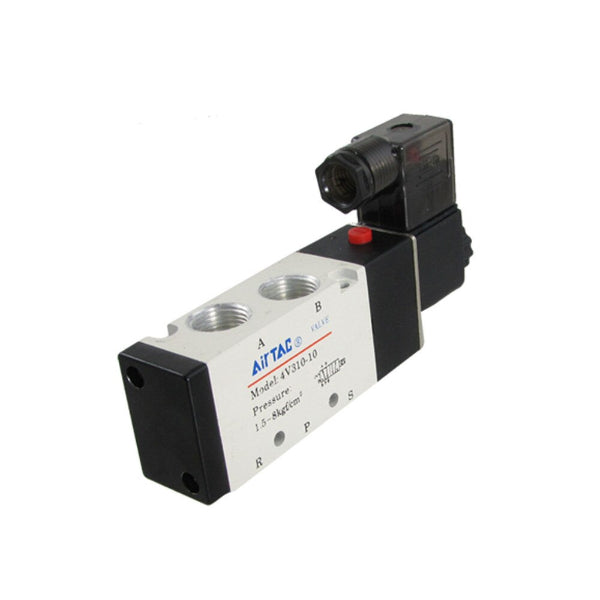

Airtac 4V310-10 DC24V Solenoid Valve G3/8" High-Flow 5/2 Way Directional Valve, Delivering Powerful Drive for Large Pneumatic Actuators

$40.30 USD

Sale Sold out

Taxes included.

Port size PT thread 3/8" NPT port

Parameter	Specification	User Value Explanation
Model	4V310-10 DC24V	Standard single-solenoid model, compatible with various control systems
Valve Structure	5-port, 2-position (Single Solenoid)	Common directional control function, fast response speed

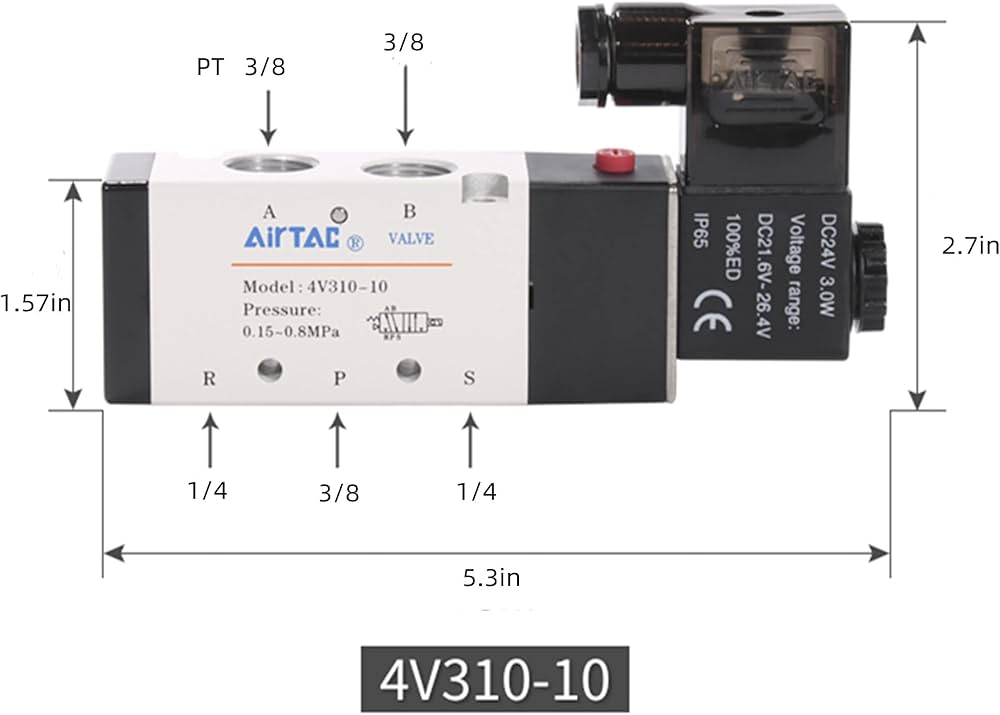

Port Size	PT or 3/8" NPT port	Large-port design ensures stable and sufficient flow
Effective Orifice	$30 mm^{2}$ ( $Cv \approx 1.67$ )	Provides powerful airflow, increasing cylinder response speed
Working Medium	$40 μ m$ filtered clean air	Protects the valve core and seals, extending lifespan
Operating Pressure Range	$0.15 \sim 0.8 MPa$	Compatible with common industrial air source systems
Voltage Specification	$DC 24 V \pm 10%$	Safe low voltage, flexible control
Body Material	Aluminum alloy	Lightweight yet robust, excellent corrosion resistance
Actuation Method	Internal Pilot	Sensitive response, low energy consumption
Operating Temperature	$- 20 \sim 7 0^{\circ} C$	Suitable for most industrial environments
Response Time	$\leq 0.05 s$	Ensures fast equipment action and precise changeover

Feature	Advantage	Typical Application
High-Flow Valve Body	Provides higher gas throughput, rapidly driving large actuators	Woodworking machinery, packaging equipment, automatic clamps
Spool Structure	Compact, excellent sealing, long service life	Automated production lines, robotics systems
Oil-Free Lubrication	Reduces maintenance costs and keeps the system clean	Automated equipment requiring long-term continuous operation
Manual Override Device	Facilitates installation, debugging, and fault clearing	Equipment maintenance and production line commissioning stages
Integrated Valve Group Compatibility	Supports integration with 300M manifolds for multi-valve control	Centralized pneumatic control systems, centralized piping layouts

Powerful Drive, High Flow Output

Features a G3/8" large-port design with a large effective orifice of $30 mm^{2}$ ( $Cv \approx 1.67$ ).
Achieves fast response and high thrust output even when driving large-bore cylinders, significantly boosting production cycle time.

Stable and Reliable, Precise Synchronization

Built with a classic spool structure, ensuring excellent sealing and sensitive action.
Maintains precise synchronization of airflow switching and low leakage rate, even under high-frequency, high-flow conditions.

Maintenance-Free Operation, Reduced Costs

The valve body is designed for oil-free lubrication, reducing maintenance frequency and preventing oil contamination.
Suitable for continuous, long-term operation in automated production equipment.

Flexible Integration, Easy System Expansion

Compatible with Airtac 300M series manifold bases, allowing for centralized, integrated control of multiple valves.
Simplifies piping layout and makes maintenance more convenient.
