Product Overview

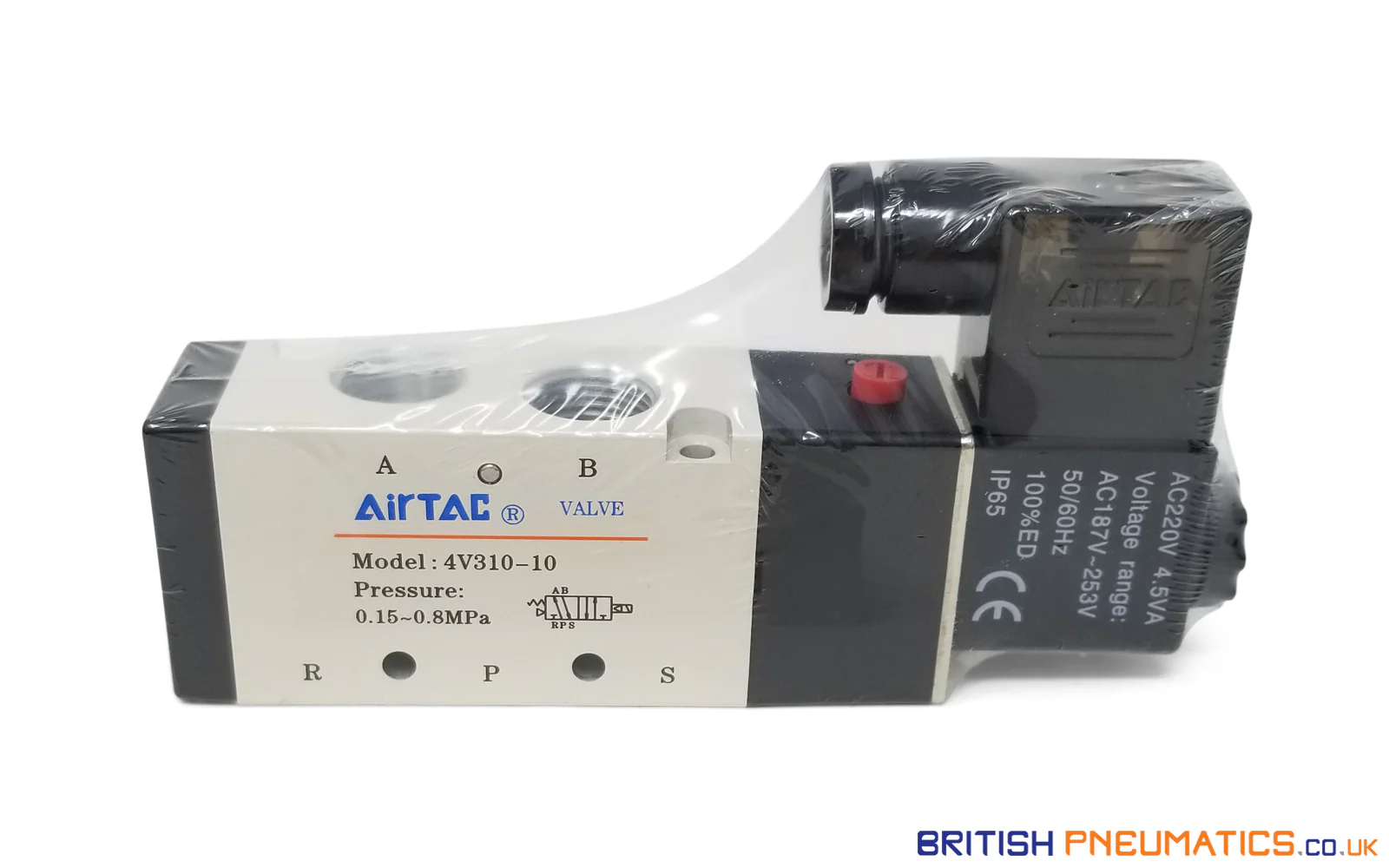

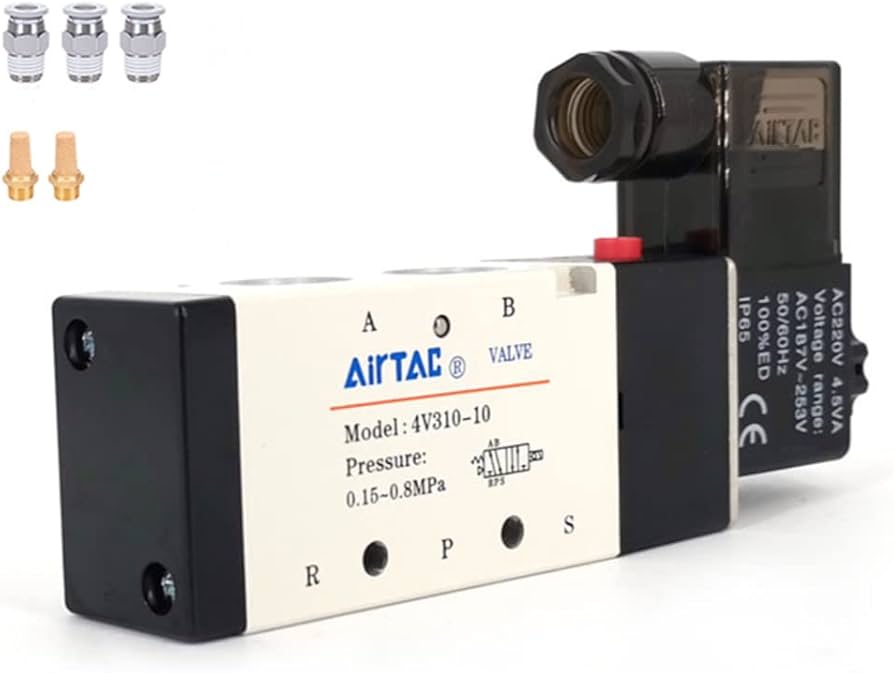

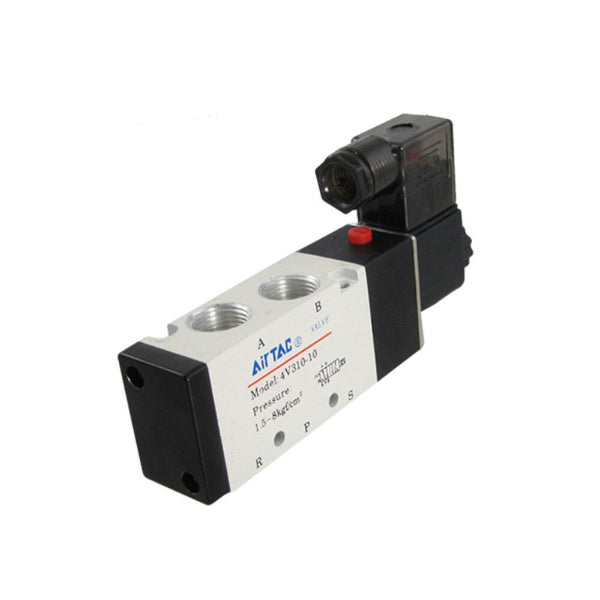

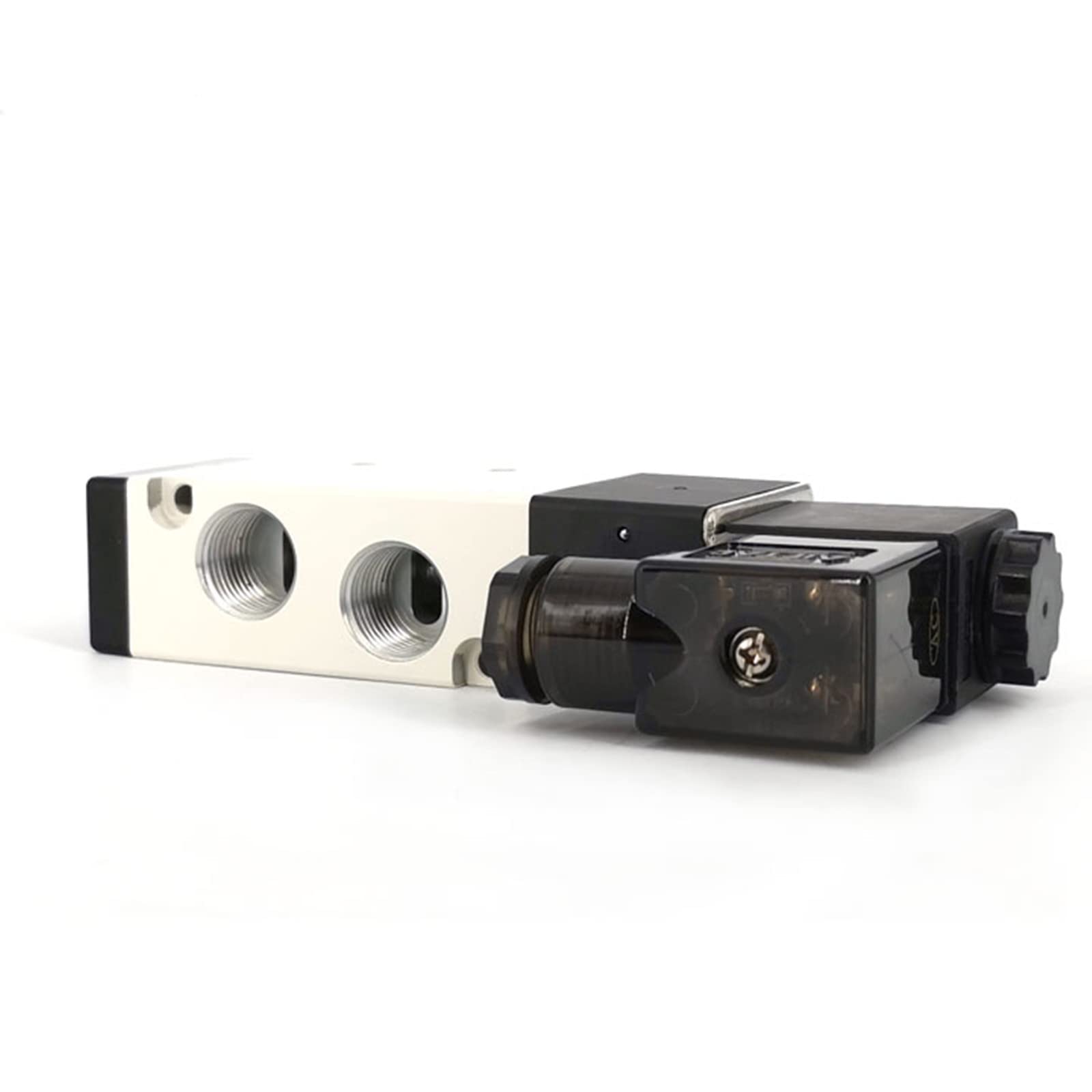

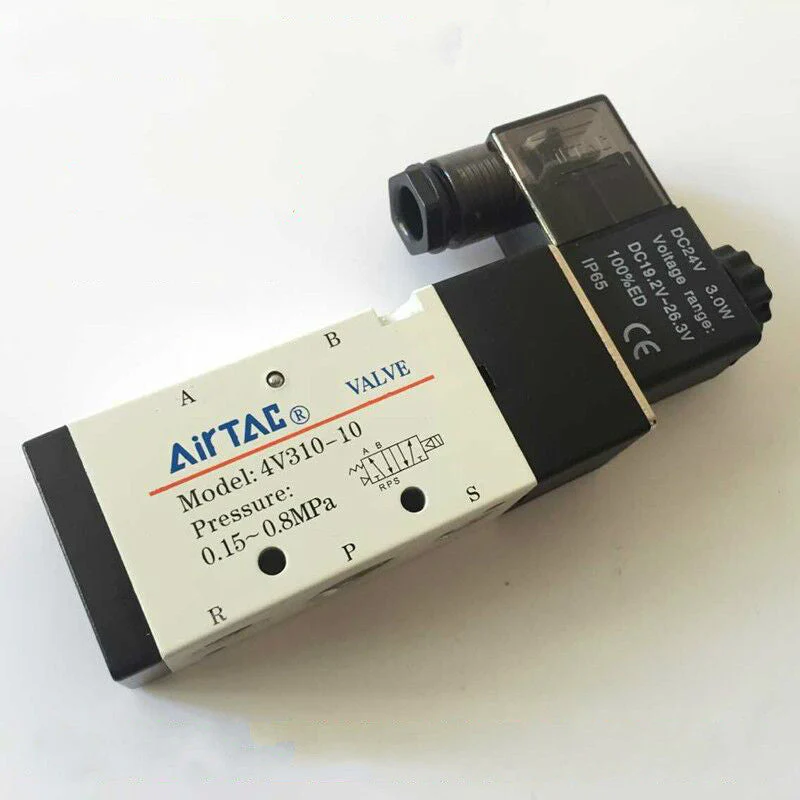

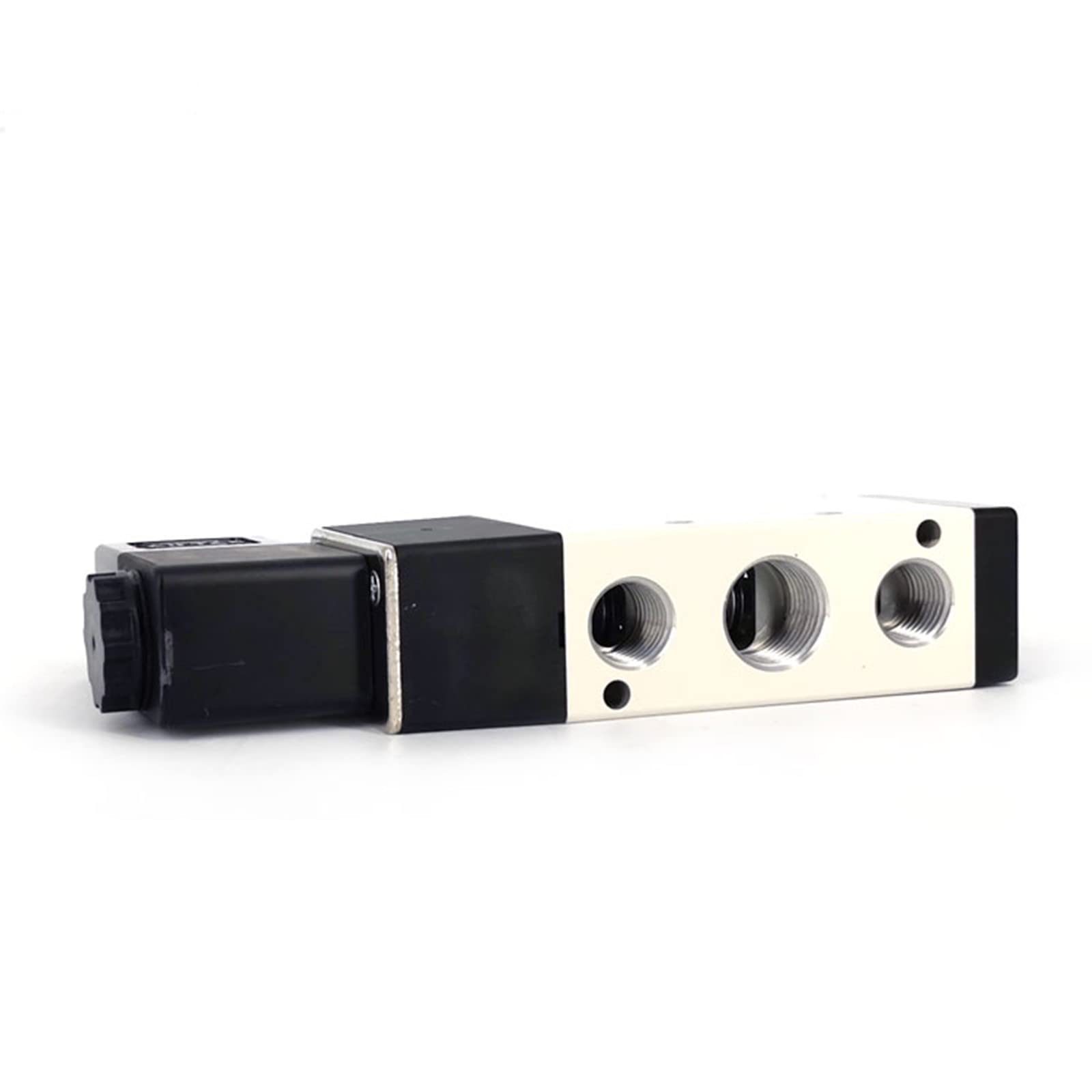

The Airtac 4V310-10 AC24V Solenoid Valve is a 5-port 2-position single solenoid directional valve designed specifically for industrial automation systems.
It features a low-voltage AC24V electromagnetic drive, ensuring safety, stability, and fast response, making it suitable for various pneumatic control circuits.
The high-strength aluminum alloy valve body, combined with Airtac's patented spool seal structure, ensures precise shifting and excellent sealing performance even under long-term, high-frequency operation.
Whether used in automated assembly lines, food packaging equipment, printing machinery, or woodworking production systems, the 4V310 AC24V provides reliable performance and long-lasting power support for your equipment.
Technical Specifications
| Parameter | Specification | Advantage Statement |
| Model Number | 4V310-10 AC24V | 5-Port 2-Position single solenoid valve. |
| Actuation | Internal Pilot Operated | Fast start-up, precise control. |

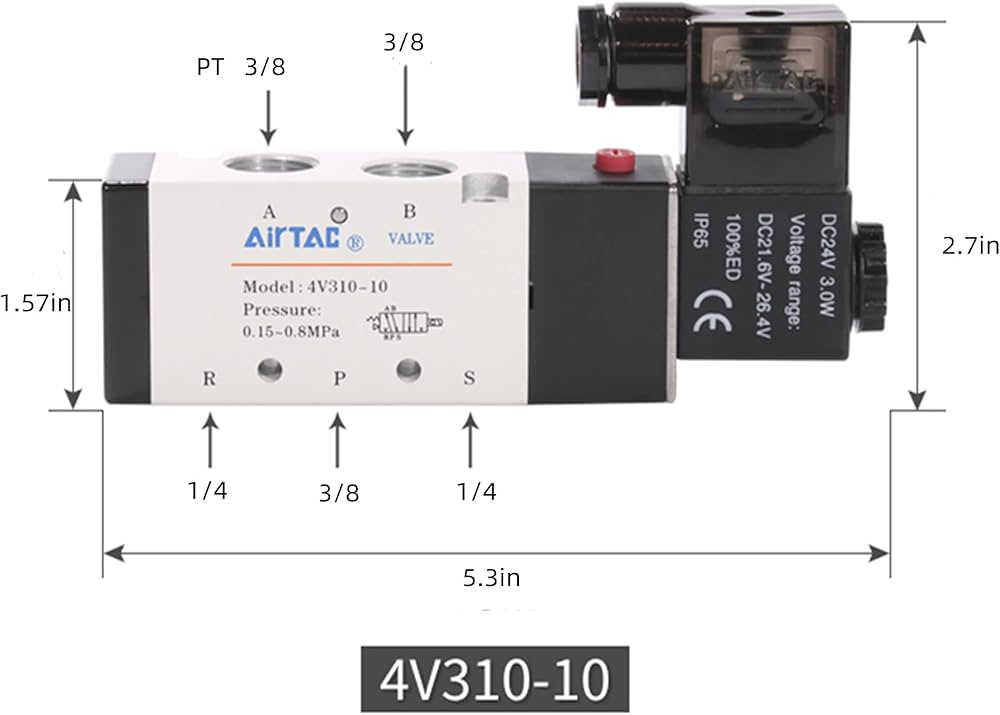

| Port Size | PT OR 3/8" NPT port | Large bore for ample flow. |
| Effective Area / Cv | $30\text{ mm}^2$ / Cv $\approx 1.67$ | Fast shifting, enhances execution efficiency. |
| Working Pressure | $0.15 \sim 0.8 \text{ MPa}$ | Adaptable to various industrial environments. |
| Working Medium | $40\text{ μm}$ filtered clean air | Prevents clogging, extends lifespan. |
| Voltage Range | AC $24\text{V} \pm 10\%$ | Safe low-voltage, compatible with diverse control systems. |
| Power Consumption | Approx. $4.5 \text{ VA}$ | Low energy consumption, good heat dissipation. |
| Response Time | $\le 0.05 \text{ seconds}$ | High-speed shifting. |
| Operating Temperature | $-20^\circ\text{C} \sim +70^\circ\text{C}$ | Adapts to a wide temperature range. |
| Body Material | Anodized Aluminum Alloy | Lightweight, robust, strong corrosion resistance. |
Data is based on Airtac official experimental conditions and is for reference only.
Core Product Advantages
1. Safe Low-Voltage Drive for Higher Reliability
Utilizes a low-voltage AC24V power supply, effectively reducing operational risks while minimizing electromagnetic interference. It is particularly suitable for equipment scenarios with high safety and stability requirements.
2. G3/8” Large Bore for High Flow Rate
Compared to the standard 4V210 series, the 4V310 series features a larger bore (Cv $\approx 1.67$). It exhibits faster response and stronger output capacity in cylinder drive or multi-circuit control systems.
3. Airtac Patented Spool Structure
The core valve element features Airtac's self-lubricating spool design, ensuring reliable sealing, high wear resistance, and longer lifespan. It can sustain continuous high-frequency start/stop cycles exceeding tens of millions of times.
4. Lubrication-Free Maintenance for Low Failure Rate
Employs high-molecular-weight seals and self-lubricating materials, eliminating the need for additional oiling and maintenance. Significantly reduces maintenance costs and downtime.
5. Manual Button for Convenient Debugging
Each solenoid valve is equipped with a manual test button, making it easy to quickly switch states during installation, debugging, and maintenance, thus greatly improving on-site operational efficiency.
Applicable Scenarios
| Application Industry | Typical Use |
| Automated Production Lines | Controlling cylinder and actuator movement. |
| Food Packaging Equipment | Rapid air source switching, maintaining precise cycles. |
| Woodworking and Printing Machinery | High-frequency directional control, smooth and reliable. |
| Logistics Conveying Systems | Multi-channel pneumatic switching and centralized control. |
| Testing and Assembly Equipment | Precise control of positioning and clamping mechanisms. |
Installation & Wiring Guide
Installation Recommendations:
-
Mounting: Horizontal installation is recommended to ensure even force on the spool.
-
Air Quality: Ensure the air source is clean; installing a $40\text{ μm}$ filter is recommended.
-
Piping: Pipe connections must match the G3/8” standard thread to avoid leakage or flow loss from necking down.
-
Exhaust: Exhaust ports must remain clear to prevent back pressure from affecting switching speed.
Electrical Wiring Instructions:
-
Rated Voltage: AC $24\text{V} \pm 10\%$
-
Wiring Method: L (Live/Hot) $\to$ Red wire; N (Neutral) $\to$ Black wire
-
Safety Note: Please confirm the supply voltage is correct and ensure good grounding to prevent coil burnout.
Recommended Accessories & Combination Solutions
| Accessory Type | Recommended Model | Function Description |
| Manifold Base | Airtac 300M Series | Enables modular installation of multiple valves. |
| Air Preparation Unit | Airtac BFC / AC Series (FRL) | Stabilizes air pressure and filters impurities. |
| Muffler | G3/8” Muffler | Reduces noise and ensures smooth exhausting. |
| Quick Connect Fittings | PC / PL Series | Quick installation and reliable sealing. |
Quality Assurance
Airtac (Yadeke), as an internationally renowned manufacturer of pneumatic components, has products certified by international standards including CE, ISO9001, and RoHS.
Every product undergoes rigorous testing in every outgoing procedure.
You will receive:
-
✅ High Sealing Performance and Low Leakage Rate
-
✅ Stable High-Frequency Shifting Performance
-
✅ Excellent Pressure Resistance, Anti-Shock, and Long Lifespan
-
✅ Compatibility with Global Industrial Standards
Airtac 4V310-10 AC24V Solenoid Valve — empowering your automation system with higher efficiency and extended lifespan.
