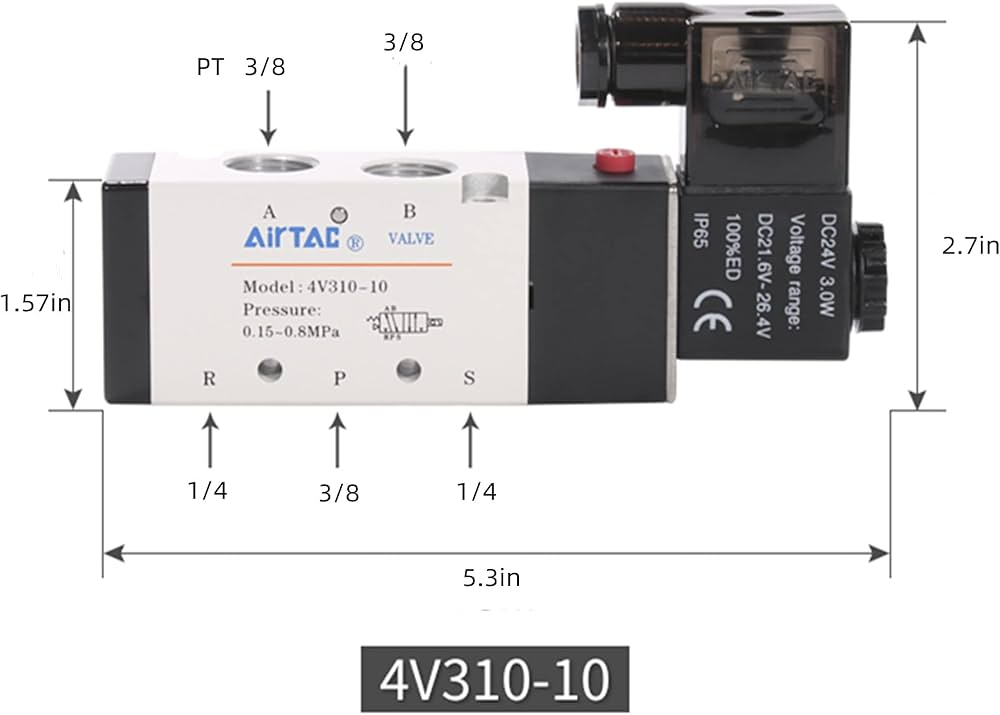

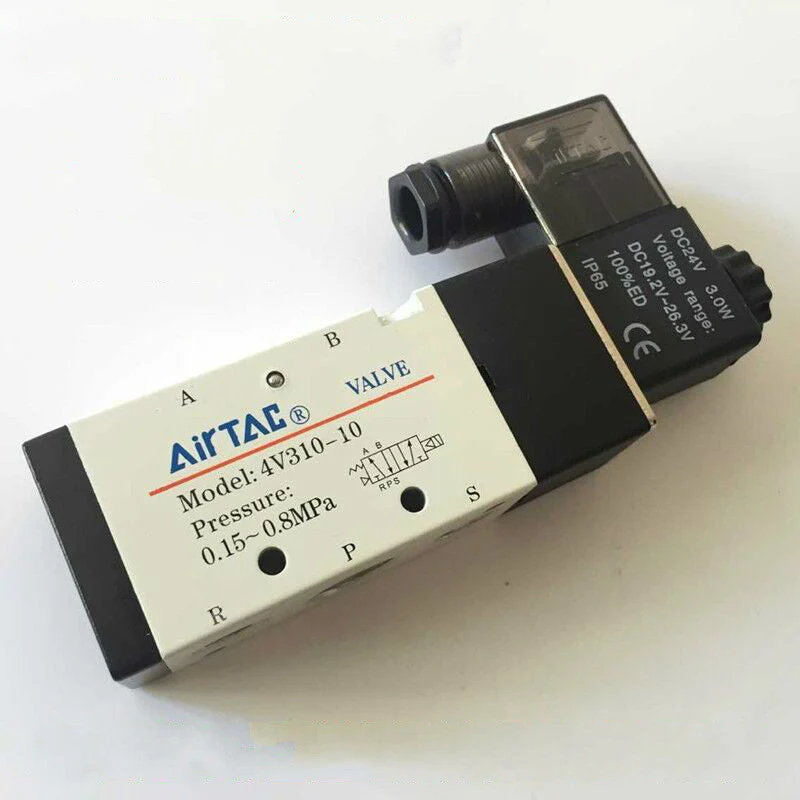

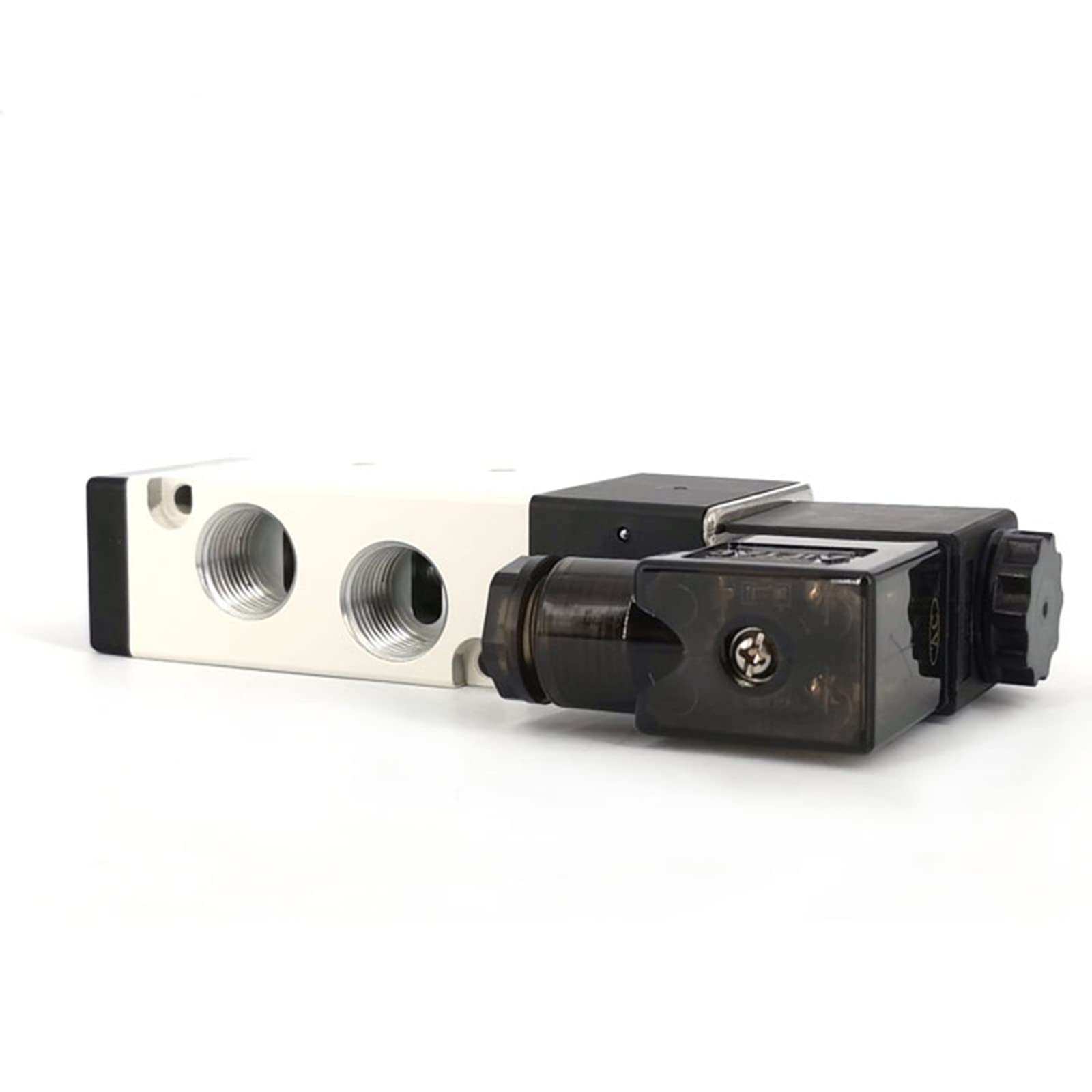

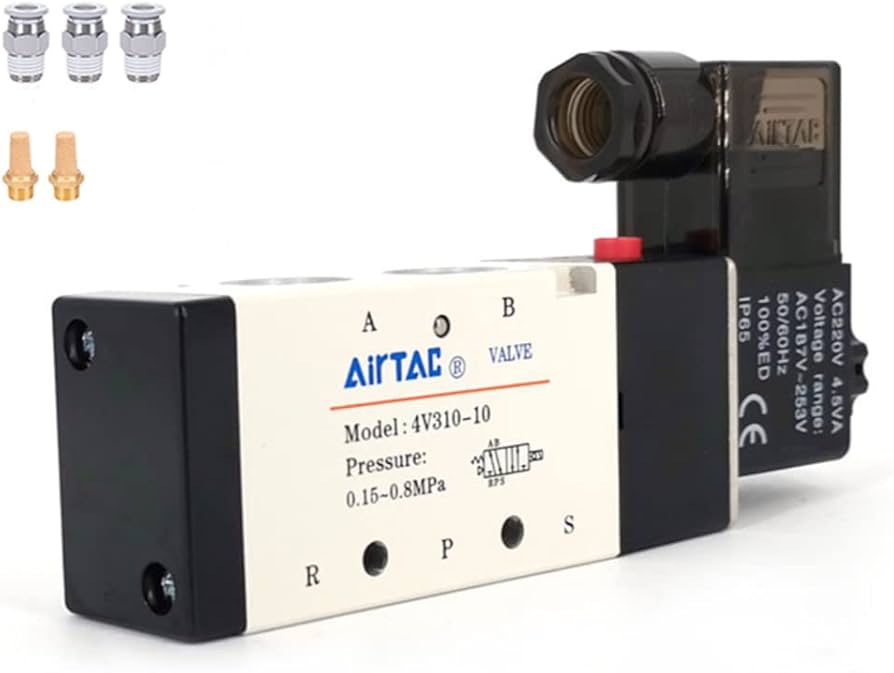

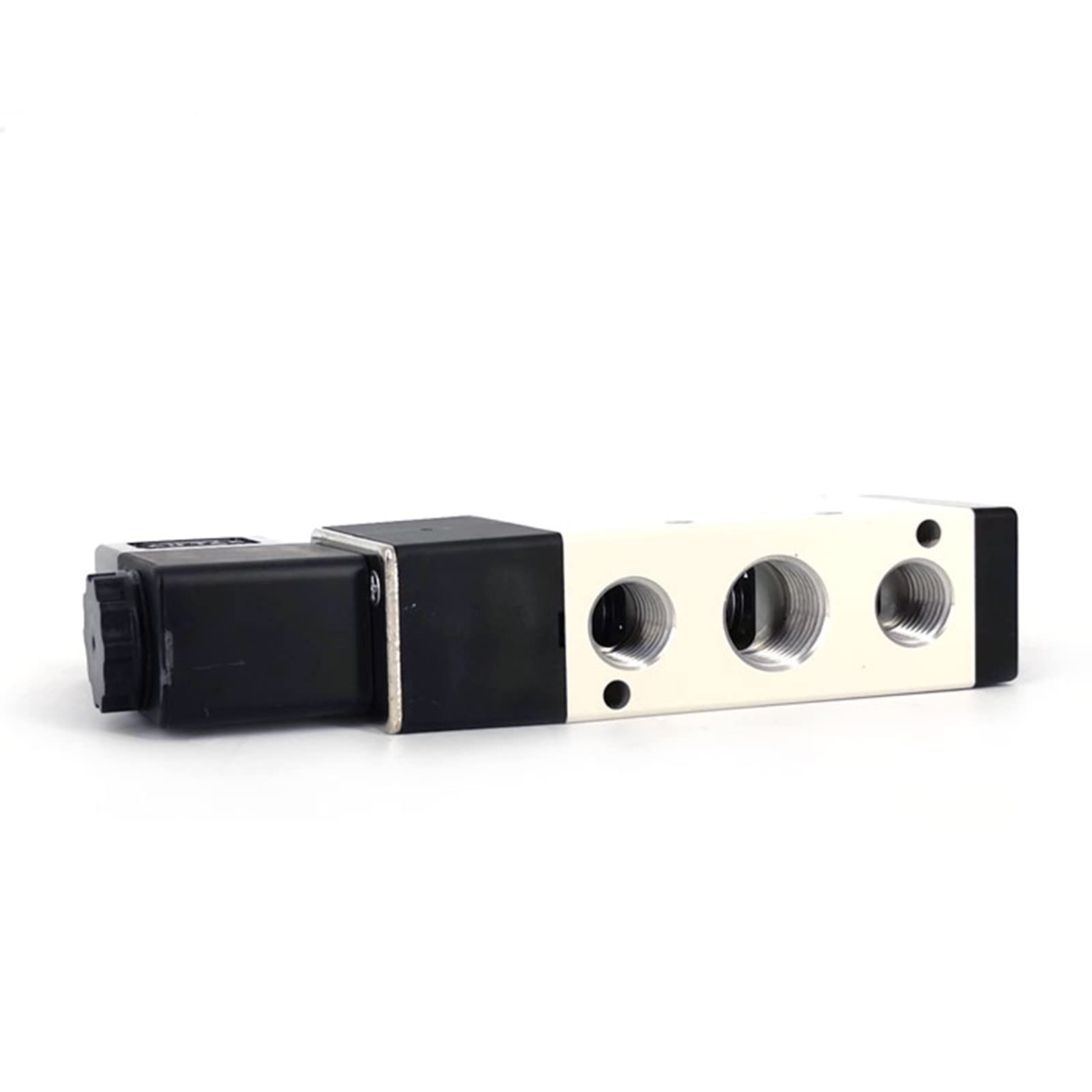

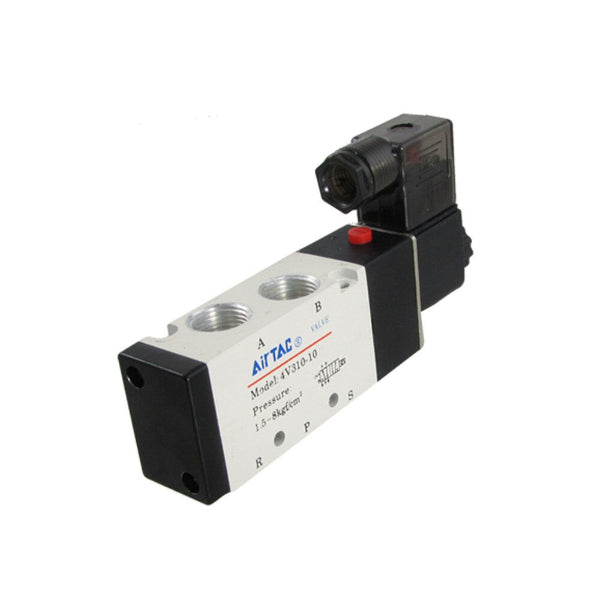

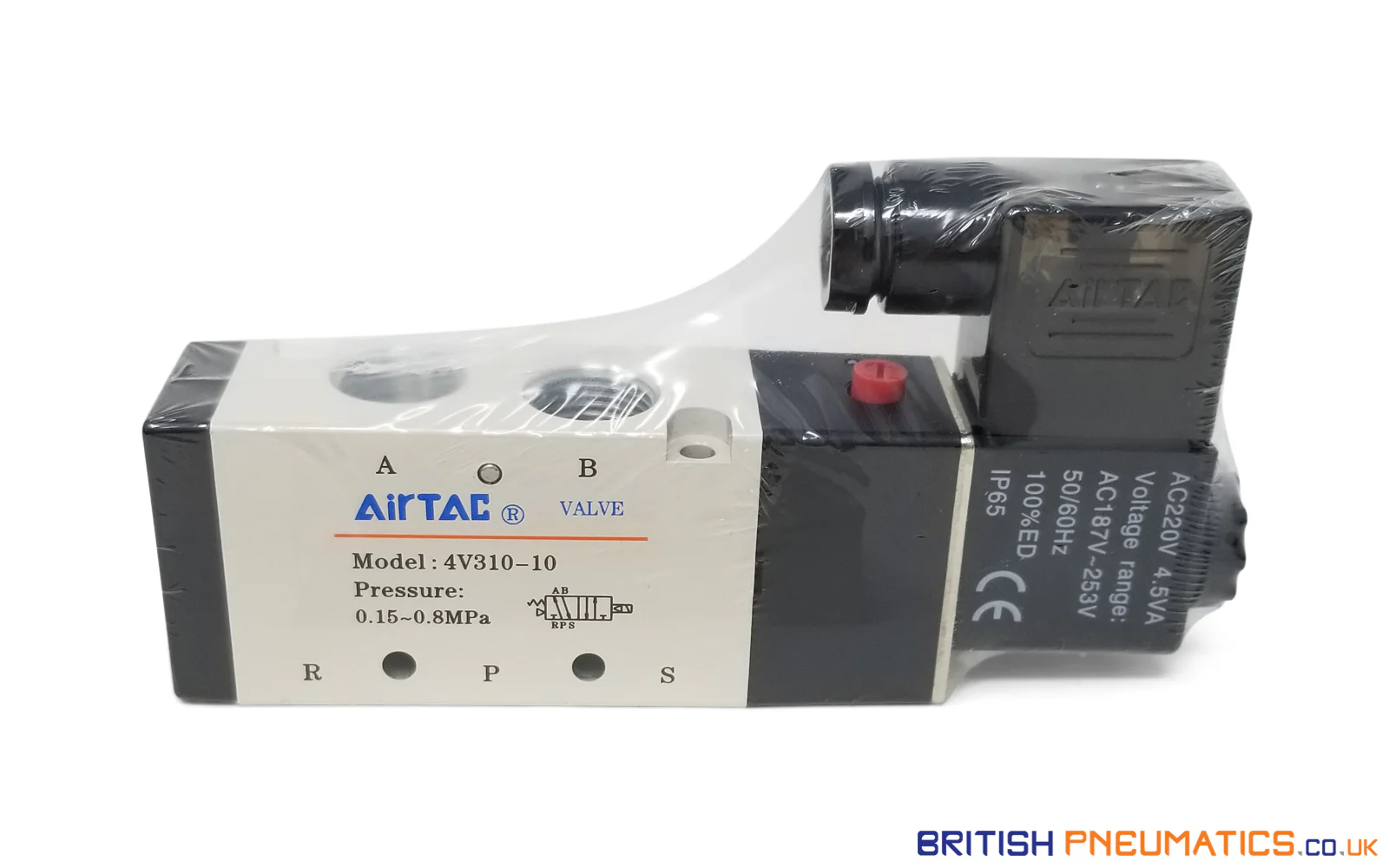

Function: 5/2 Way, Single Solenoid (Spring Return)
Voltage: DC12V
Port Size: G3/8
Effective Area: 25 mm²
Cv Value: 1.00
Working Pressure: 0.15 – 0.8 MPa (1.5 – 8 bar)
Temperature Range: -10°C ~ 50°C (14°F ~ 122°F)
Medium: Filtered Air (40 μm)
Operating Frequency: Up to 5 cycles/second
Application Scenarios
Optimized for DC12V systems requiring high flow from G3/8 ports. Suitable for large pneumatic cylinders, heavy-duty machinery, and industrial automation requiring stable single-solenoid control.
