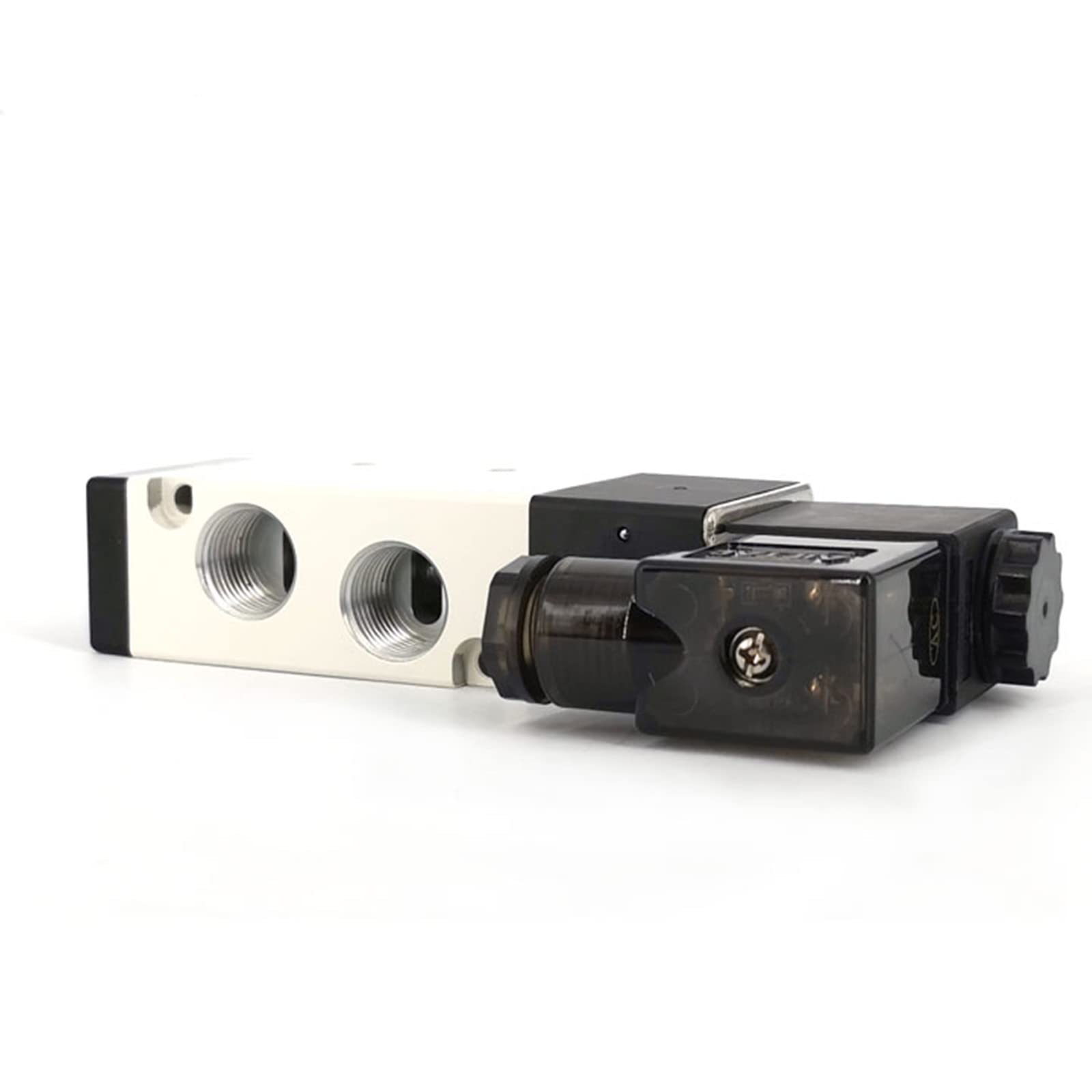

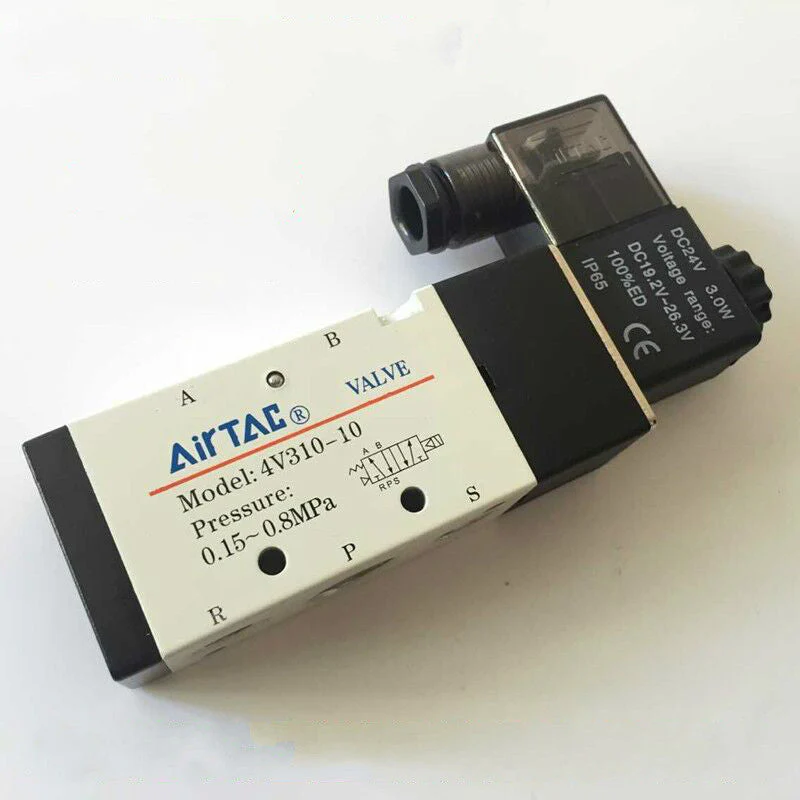

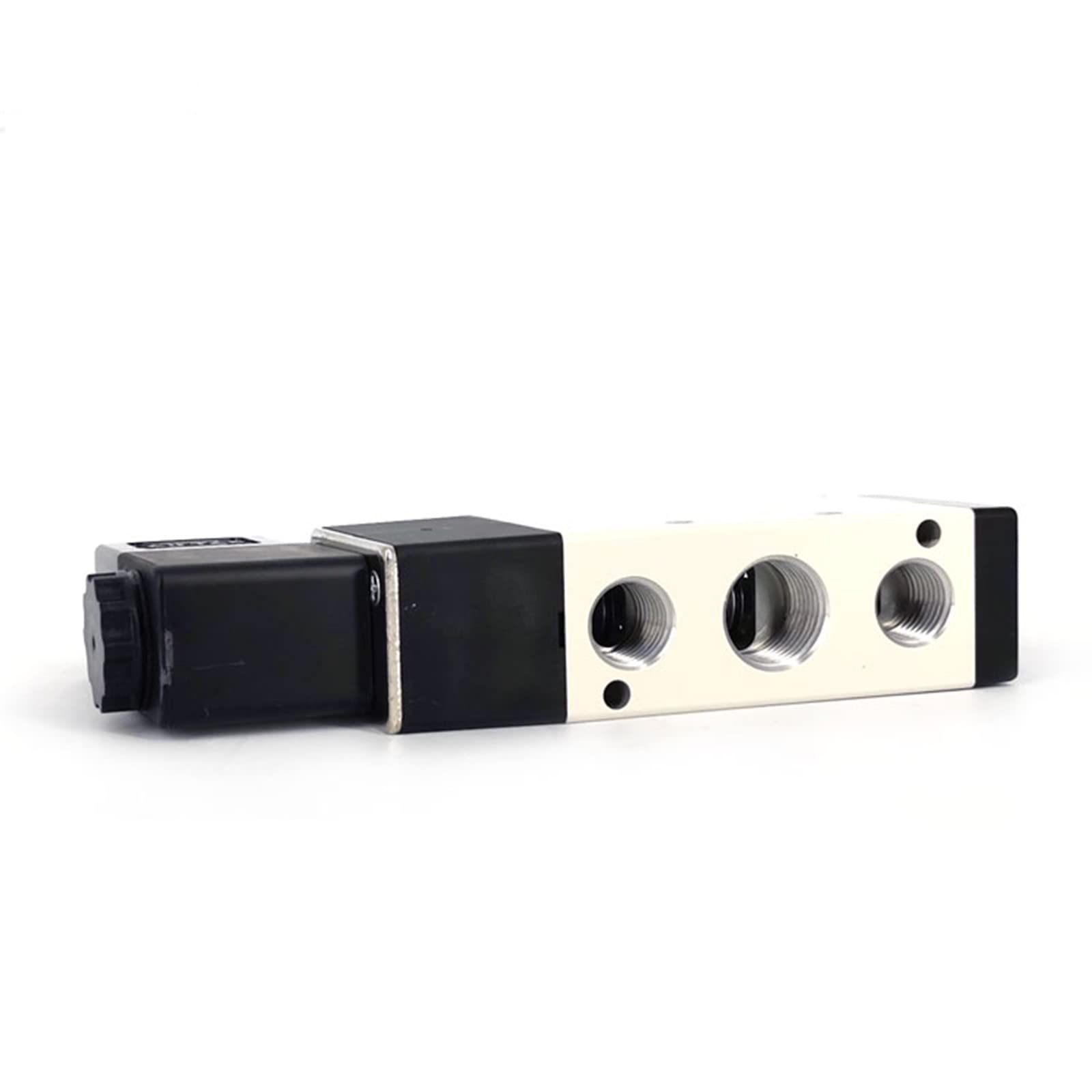

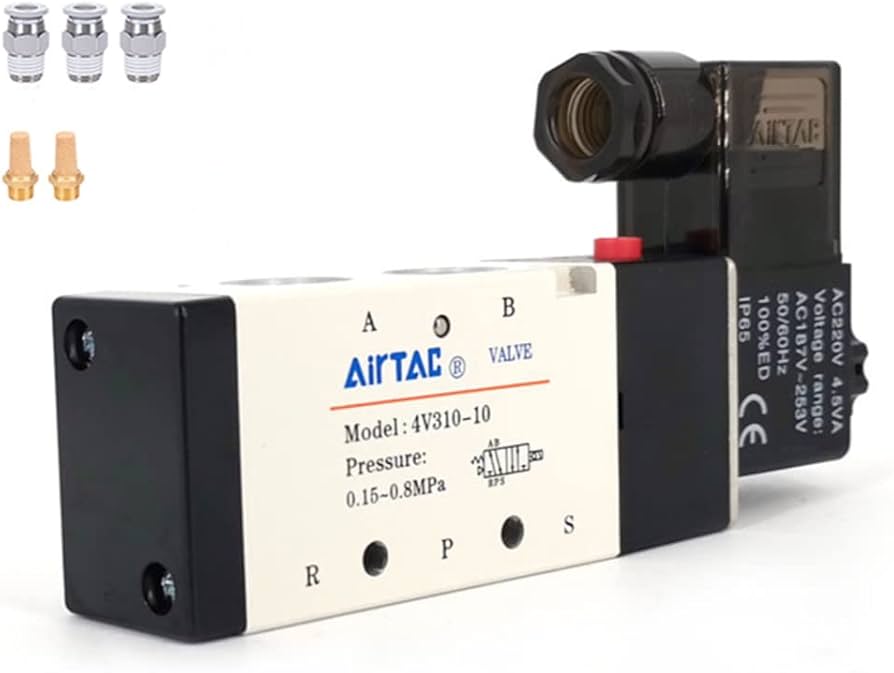

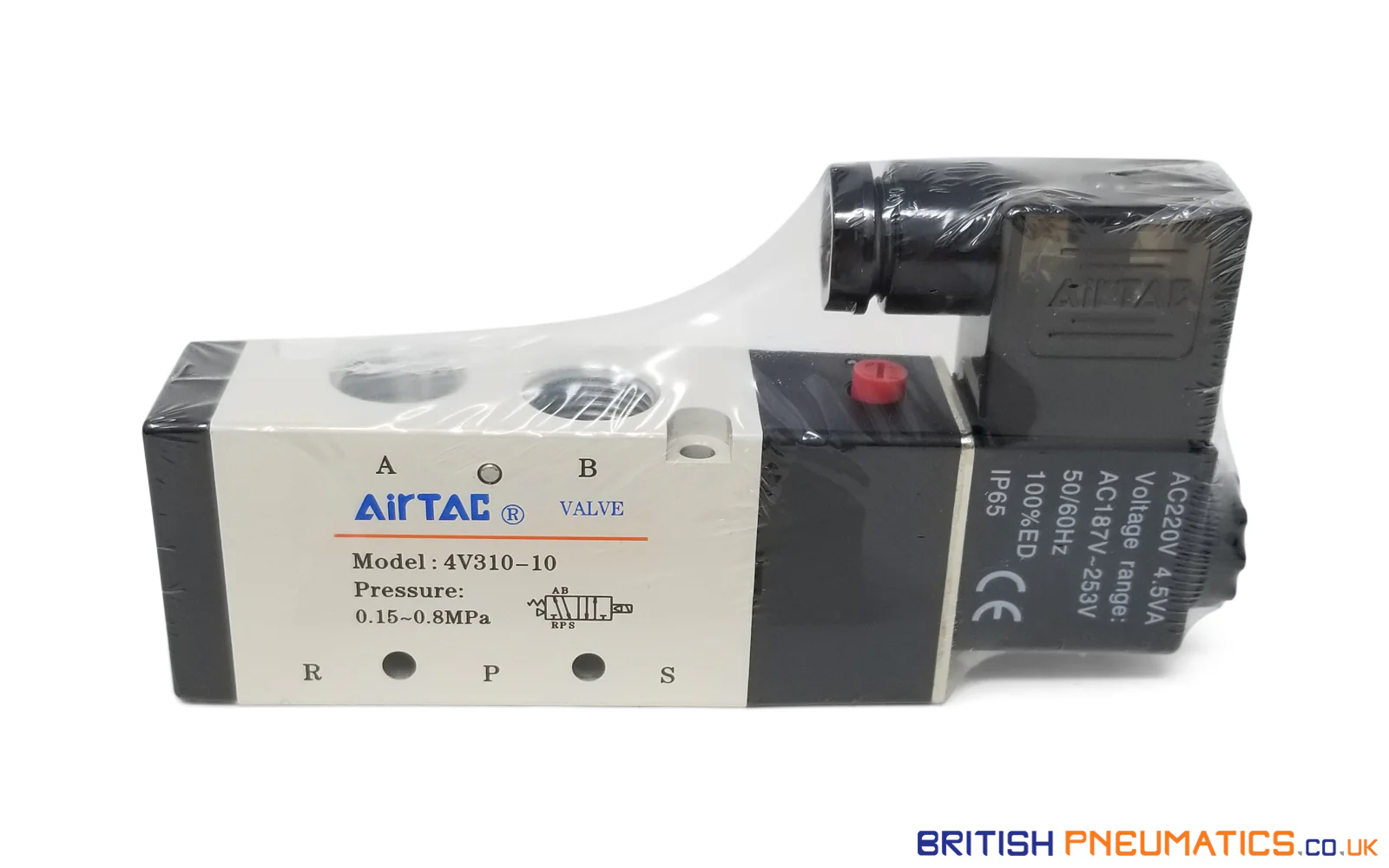

Airtac 4V310-08 AC220V Solenoid Valve

Product Parameters

• Brand: Airtac
• Model: 4V310-08
• Function: 5/2 Way, Single Solenoid (Spring Return)
• Voltage: AC220V
• Port Size: G1/4
• Effective Area: 16 mm²
• Cv Value: 0.89
• Working Pressure: 0.15 – 0.8 MPa (1.5 – 8 bar)
• Temperature Range: -10°C ~ 50°C (14°F ~ 122°F)
• Medium: Filtered Air (40 μm)
• Operating Frequency: Up to 5 cycles/second

Application Scenarios

Designed for AC220V-driven automation lines and pneumatic control systems. Offers dependable large-port airflow for industrial-grade cylinders.

Advantages

• High-strength AC220V coil
• Excellent voltage tolerance (±10%)
• Fast switching speed
• Corrosion-resistant aluminum body
• Supports manifold or individual mounting
