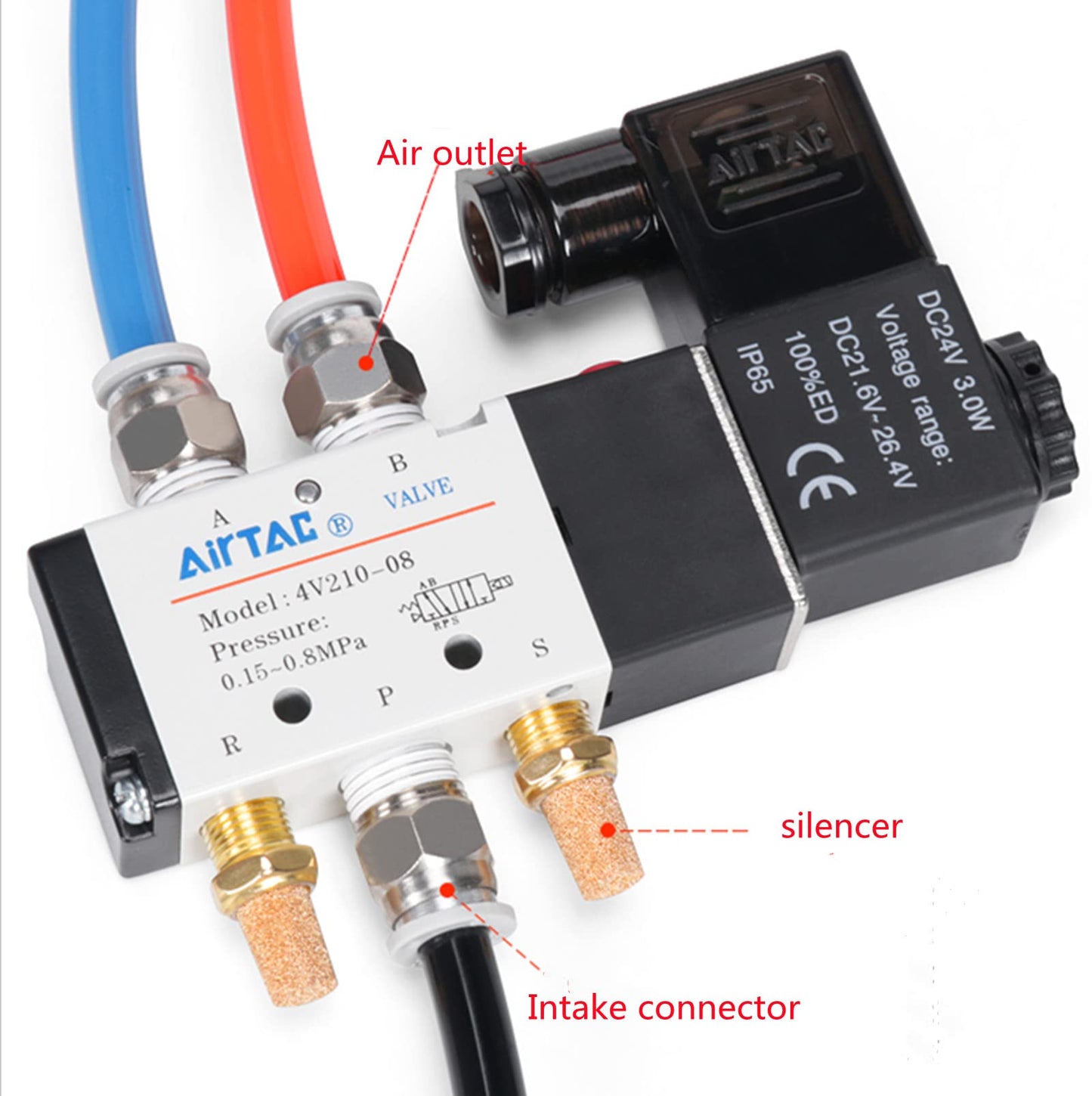

AirTAC 4V210-08 Solenoid Valve|5/2 Way Pneumatic Solenoid Valve|1/4" Port|AC220V / AC110V / AC24V / DC24V / DC12V

$31.50 USD

Sale Sold out

Taxes included.

Thread Options PT 1/4" NPT 1/4" G 1/4"

Voltage Options AC220V AC110V AC24V DC24V DC12V

Pilot type Standard (Terminal Box) -W (Terminal + External Pilot) -I (Direct Lead Wire / Grommet) -I-W (Direct Wire + External Pilot)

Quick Highlights

✅ Dropshipping Supported (No MOQ): Buy 1 piece for a localized repair or scale your e-commerce store with zero minimum order requirements.
✅ 100% White-Label Fulfillment: Blind shipping guaranteed. Absolutely no invoices, price sheets, or our store branding inside the package—your customer data remains entirely secure.
✅ Global Pipeline Standards: Available in precise PT, G, and NPT threads to integrate seamlessly with international machinery networks.
✅ Genuine AirTAC Quality: Industrial-grade 5/2-way directional control valves providing an ultra-long service life of over 20 Million cycles.

Technical Specifications

Item	Specification
Model	AirTAC 4V210-08 Series (5 Port 2 Position Single Control)
Port Size	Inlet & Outlet = 1/4" (PT / NPT / G); Exhaust = 1/8"
Fluid	40 Micron Filtered Compressed Air
Acting	Internal Pilot (Standard) / External Pilot (Optional -W)
Orifice Size	16.0 mm² (Cv = 0.89)
Pressure Range	Internal Pilot: 0.15 ~ 0.8 MPa (21 ~ 114 Psi) External Pilot (-W): Main: -0.1 ~ 0.8 MPa; Pilot: 0.15 ~ 0.8 MPa
Proof Pressure	1.2 MPa (174 Psi)
Temperature	-20 ~ 70°C (Unfrozen Status)
Lubrication	Not Required (Class-F Premium Internal Grease)
Max. Frequency	5 Cycles / Second
Response Time	Less than 0.05 Seconds
Power Consumption	AC: 4.5VA / DC: 3.0W (Class F Insulation Protection)
Voltage Range	±10% of Rated Voltage

Click to download the catalog

Professional Analysis

The AirTAC 4V210-08 solenoid valve stands as the international benchmark for 5/2-way single-control pneumatic directionality. Engineered with a high-precision sliding spool structure that is micro-finished to minimize internal friction, this core component ensures highly responsive actuation under rigorous workloads. It is widely applied across automatic packaging, textile machineries, and automated electronic assembly lines.

To guarantee structural alignment, each unit conforms fully to the universal 4v210 08 solenoid valve specification sheet. We offer custom order support for specialized configurations to fit worldwide grid frameworks and pneumatic plumbing metrics. Whether your engineering team is evaluating an airtac 4v210 08 manual for layout deployment or sourcing a standard replacement airtac valve 4v210 08, our flexible fulfillment model scales reliably to meet both micro-procurements and cross-border distribution lines.

Configure Your Suffix Variations

Please verify your technical configurations carefully before checking out to ensure absolute drop-in compatibility:

1. Voltage Suffix Options (完整电压代码选择):
⚡ AC220V (Code A): The global manufacturing mainline standard for industrial power grids.
⚡ DC24V (Code B): The premier choice for modern, high-stability PLCs and robotic control loops.
⚡ AC110V (Code C): Widely utilized standard voltage across North American and specific regional industrial grids.
⚡ AC24V (Code E): Lower-voltage AC option engineered for enhanced operational safety in wet or high-risk environments.
⚡ DC12V (Code F): Perfect for mobile systems, automotive pneumatics, and battery-powered applications.
2. Thread & Port Suffix Options:
📐 Standard (PT 1/4"): Tapered pipe thread for Asian and general markets.
📐 "G" Suffix (G 1/4"): Parallel ISO 228 threads optimal for European machinery with O-rings.
📐 "T" Suffix (NPT 1/4") [Built-to-Order]: North American standard tapered threads. Please note that NPT models are custom-sourced and involve specific production lead times.
3. Wiring & Pilot Combinations:
⚙️ Terminal Type (Standard): Features a standard DIN terminal box with an integrated LED indicator. Ideal for standard cabinet wiring and easy coil replacement.
⚙️ Terminal Type + External Pilot (-W): Combines the reliable DIN terminal connector with an independent M5 external pilot port. Perfect for vacuum systems that require standard plug-in wiring.
⚙️ Direct Lead Wire Type (-I / Grommet): Space-saving 500mm direct-wire outlet. Eliminates bulky connectors, maximizing density on compact valve banks while improving vibration resistance.
⚙️ Direct Lead Wire + External Pilot (-I-W): The ultimate configuration for high-density vacuum automated loops. Combines the ultra-compact Grommet direct wire profile with independent external pilot control, handling down to -0.1 MPa without taking up extra cabinet space.

No MOQ Limits – Custom-Tailored for Cross-Border E-Commerce

100% Blind Dropshipping (White-Label): We deeply understand the unique needs of independent e-commerce businesses. Our fulfillment process supports a completely blind shipping model. Packages will absolutely never contain any labels, price sheets, or invoices pointing to our store. Your client assets remain 100% secure, and you can trust us completely with your fulfillment.

Sample & Retail-Buyer Friendly: You never have to build up a large order just to purchase a single component. We welcome individual sample testing orders, meeting the exact needs of small engineering workshops, machine DIY enthusiasts, and localized repair demands.

Frequently Asked Questions (FAQ)

Q: How long will it take for my order to ship?
A: For general specifications (such as standard voltage models with PT or G threads), we quickly arrange shipment within a few business days after validating the order. If you select the North American standard NPT thread models, they require a specific production lead time. Please reach out to us before purchasing to confirm the exact timeline.

Q: Do you support cross-border dropshipping and bulk wholesale?
A: Yes, 100%. We operate with no minimum order quantity (No MOQ), meaning you can place dropshipping orders directly on our site starting from one piece. If you are a distributor or have a large bulk order requirement, please reach out via our contact form to unlock your custom tiered wholesale pricing.

Q: Can I replace a DC24V coil with an AC220V coil on the same valve body?
A: Yes. The mechanical structures of the underlying metallic valve bodies across the AirTAC 4V210-08 series are fully interchangeable. If your machine's control system shifts voltage, you only need to swap out the electromagnetic coil. However, always ensure your input power strictly matches the new coil's rated voltage to prevent immediate burnout.
