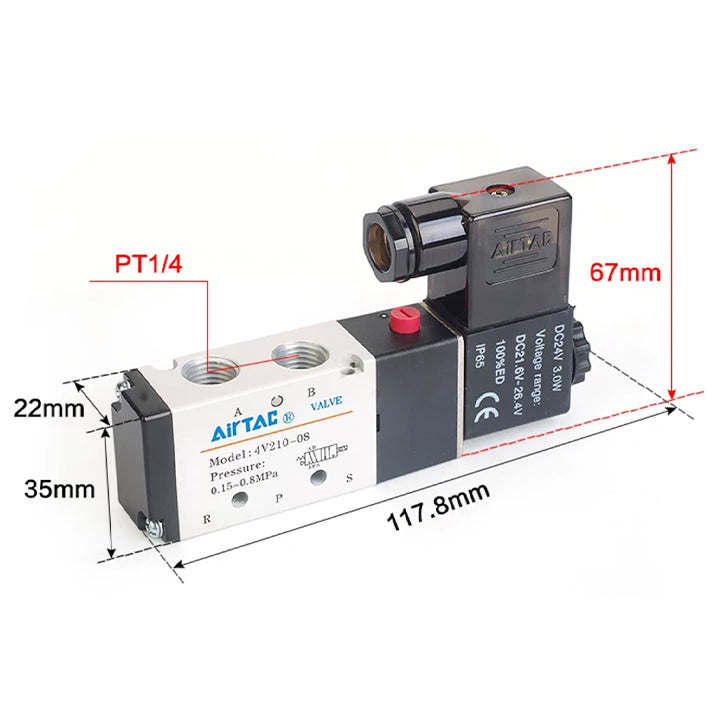

Airtac 4V210-08 5/2-Way Solenoid Air Valve

AirTAC 4V210-08 Solenoid Air Valve

Official product classification: Control Components > Solenoid Valves > 4V Series (Five-port Two-position and Five-port Three-position) > 4V200 Series Solenoid Valves > 4V210-08.

The AirTAC 4V210-08 is the 200-series, 5-port, 2-position, single-solenoid pneumatic directional valve with 1/4-inch inlet and outlet ports and 1/8-inch exhaust ports. This single product page combines the voltage, electrical-connection, pilot-mode and thread options permitted by the AirTAC ordering rules.

Specifications

Selectable configurations

• Coil voltage: AC220V, DC24V, AC110V, AC24V or DC12V
• Electrical connection: DIN socket or 0.5 m lead wire
• Pilot mode: internal pilot or external pilot
• Thread standard: PT, G or NPT

Product features

• Internal-pilot and external-pilot configurations are available
• Sliding-column structure provides reliable sealing and responsive operation
• Specially processed bore provides low friction, low starting pressure and long service life
• No oil lubrication required
• Manual override supports installation and testing
• Can be mounted on a manifold to save installation space

About AirTAC

AirTAC International Group was established in Taiwan in 1988. The AirTAC brand specializes in industrial transmission and automation products, including air preparation units, control components, pneumatic actuators, accessories and linear guides. AirTAC pneumatic components are used across machinery manufacturing, automotive, electronics, packaging, food processing and other automated industries. The 4V210-08 belongs to the AirTAC control-components portfolio and the AirTAC 4V200 solenoid valve family.

Frequently Asked Questions

What is the AirTAC 4V210-08?

It is a 5-port, 2-position, single-solenoid pneumatic directional control valve in the AirTAC 4V200 series.

What port size does the AirTAC 4V210-08 use?

The inlet and outlet ports are 1/4 inch, while the exhaust ports are 1/8 inch.

What is the operating-pressure range?

The specified working-pressure range is 0.15-0.8 MPa (21-114 psi), with a proof pressure of 1.2 MPa (175 psi).

Which coil voltages are available?

Available voltage codes cover AC220V, DC24V, AC110V, AC24V and DC12V.

Can I select DIN or lead-wire connection?

Yes. The AirTAC ordering rules provide DIN socket and 0.5 m lead-wire configurations.

Does the valve support internal and external pilot operation?

Yes. Both internal-pilot and external-pilot variants are available. External-pilot SKU codes end in -W.

Which thread standards are offered?

PT, G and NPT thread variants are available for the 4V210-08.

Does the AirTAC 4V210-08 require lubrication?

No oil lubrication is required. If lubrication is introduced, the official catalog recommends ISO VG32 or an equivalent oil and advises against interrupting lubrication afterward.

Download the AirTAC 4V200 series catalog

Confirm voltage, electrical connection, pilot mode and thread standard before ordering. The product image is representative; connector appearance may vary by configuration.
