Airtac 4V210-08 DC 12V Solenoid Valve: Efficient, Durable, and Cost-Effective 5/2 Way Directional Valve

$31.50 USD

Sale Sold out

Taxes included.

Port size PT thread (internationa） 1/8" NPT (Shipment will be made in two weeks)

Product Specifications

Parameter	Specification
Model Number	4V210-08
Operating Voltage	DC 12V
Valve Type	5-port, 2-position
Operation Method	Internal or external pilot
Fluid Medium	40-micron filtered air
Effective Orifice	17.0mm² (Cv=1.0)
Port Size	Inlet/Outlet: 1/4"; Exhaust: 1/8"
Operating Pressure	0.15~0.8 MPa (approx. 21~114 psi)
Max. Actuation Frequency	5 times/second
Min. Excitation Time	0.05 seconds
Operating Temperature	-20~70℃
Body Material	Aluminum alloy
Weight	Approx. 220g

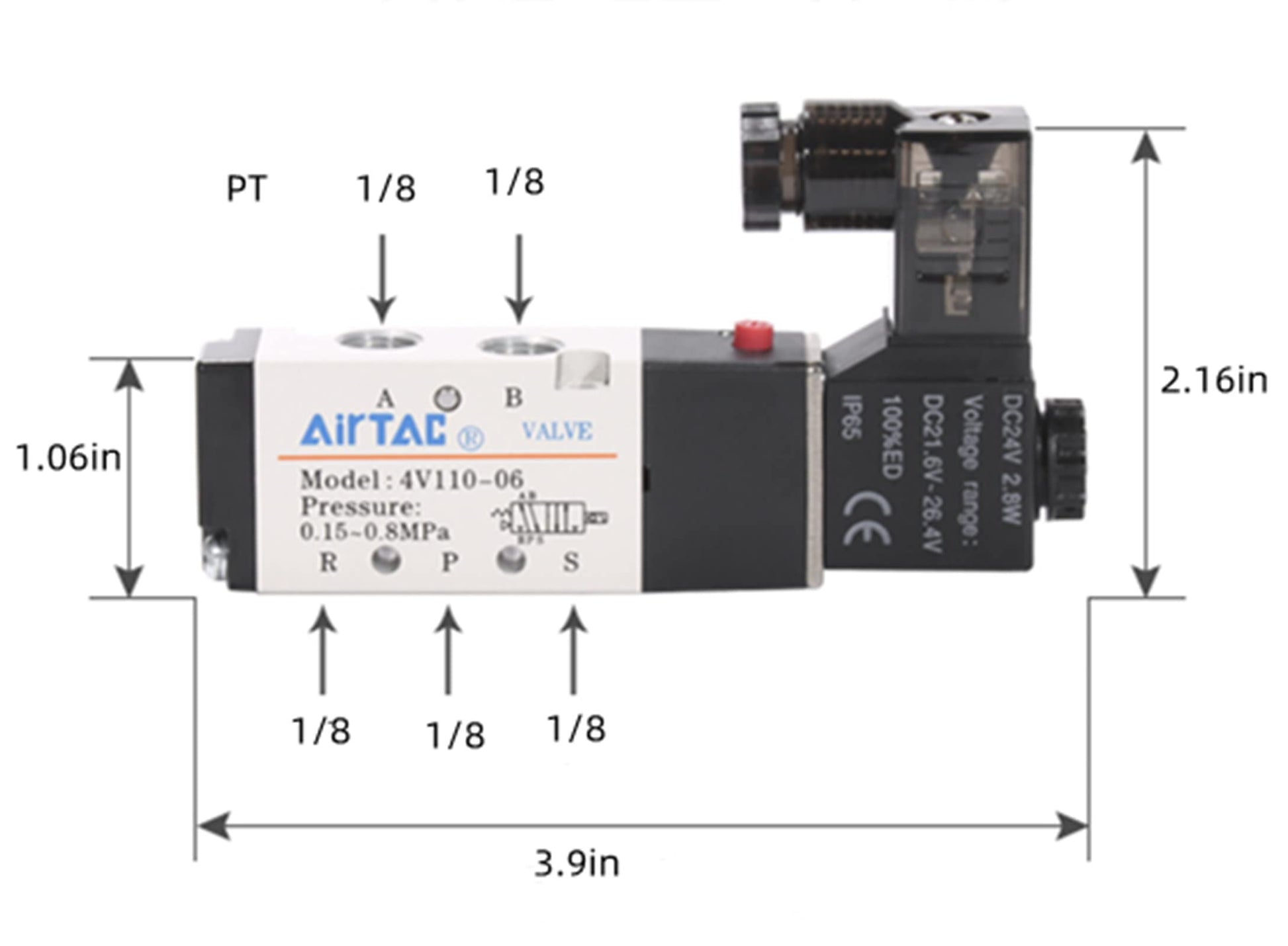

Physical Dimensions and Installation

To facilitate the integration of our device into your design, we provide precise CAD drawings. [Clear Call-to-Action (CTA)] $\to$ [Download CAD Drawings]

Product Features & Applications

Spool Structure

Advantage: The spool provides superior sealing, which minimizes air leakage and boosts system energy efficiency. Its responsive design ensures precise and synchronized equipment movements.
Application: Ideal for automated production lines that demand high response speed and precision, such as in packaging, sorting, and assembly machinery.

Manual Override

Advantage: Simplifies the installation and debugging process. Technicians can test valve operation without power, significantly improving work efficiency.

Multiple Thread Options

Advantage: Offers various thread types like G and NPT, making it easy to select the right fit for different regional and equipment standards.

Installation & Operation Guide

For best performance and longevity, follow these installation guidelines:

Air Source: Use clean air that has been filtered with a 40μm filter element.
Port Identification: P is the inlet port, A/B are the working ports, and R/S are the exhaust ports.
Wiring: For DC 12V coils with an indicator light, there are polarity requirements. Connect "1" to the positive pole and "2" to the negative pole.

Common Troubleshooting

Problem	Possible Cause	Solution
Valve fails to actuate	1. Air source is off or pressure is too low. 2. Coil is not powered or there's a power supply failure. 3. Valve spool is stuck.	1. Check the air source and pressure. 2. Check the power supply, wiring, and voltage. 3. Clean the valve spool to remove any blockages.
Excessive leakage	1. Valve spool or seal is worn. 2. Foreign matter is inside the valve body.	1. Replace any worn or aged components. 2. Clean the inside of the valve body.
Sluggish action	1. Clearance between the valve spool and sleeve has increased. 2. Impurities or deposits are inside.	1. Inspect and adjust the clearance. 2. Clean the inside of the valve.

Key Selling Points (Why Choose Us?)

High Efficiency & Fast Response: With an effective orifice of 17.0mm² and a Cv value of 1.0, this valve ensures quick response and precise, synchronized movements in your pneumatic system.
Oil-Free, Low Maintenance: The spool structure provides excellent sealing without the need for lubrication. This significantly cuts down on maintenance tasks and costs while maximizing equipment uptime.
Flexible Installation, Broad Application: The DC 12V is a common low-voltage safety standard, widely used in mobile equipment and specific industrial environments. It can be integrated with a dedicated manifold to form a compact valve group, saving installation space.
High-Value Industrial Solution: Airtac is renowned for providing pneumatic components that offer stable, durable, and reliable performance at a competitive price.

Recommended Accessories (One-Stop Solution)

Manifold/Base: It is recommended to use the 4V200 series manifold to simplify piping layouts and save space.
Air Preparation Unit: Pair it with an Airtac FRL series (Filter, Regulator, Lubricator), particularly the filter with a 40μm element, to ensure clean air.

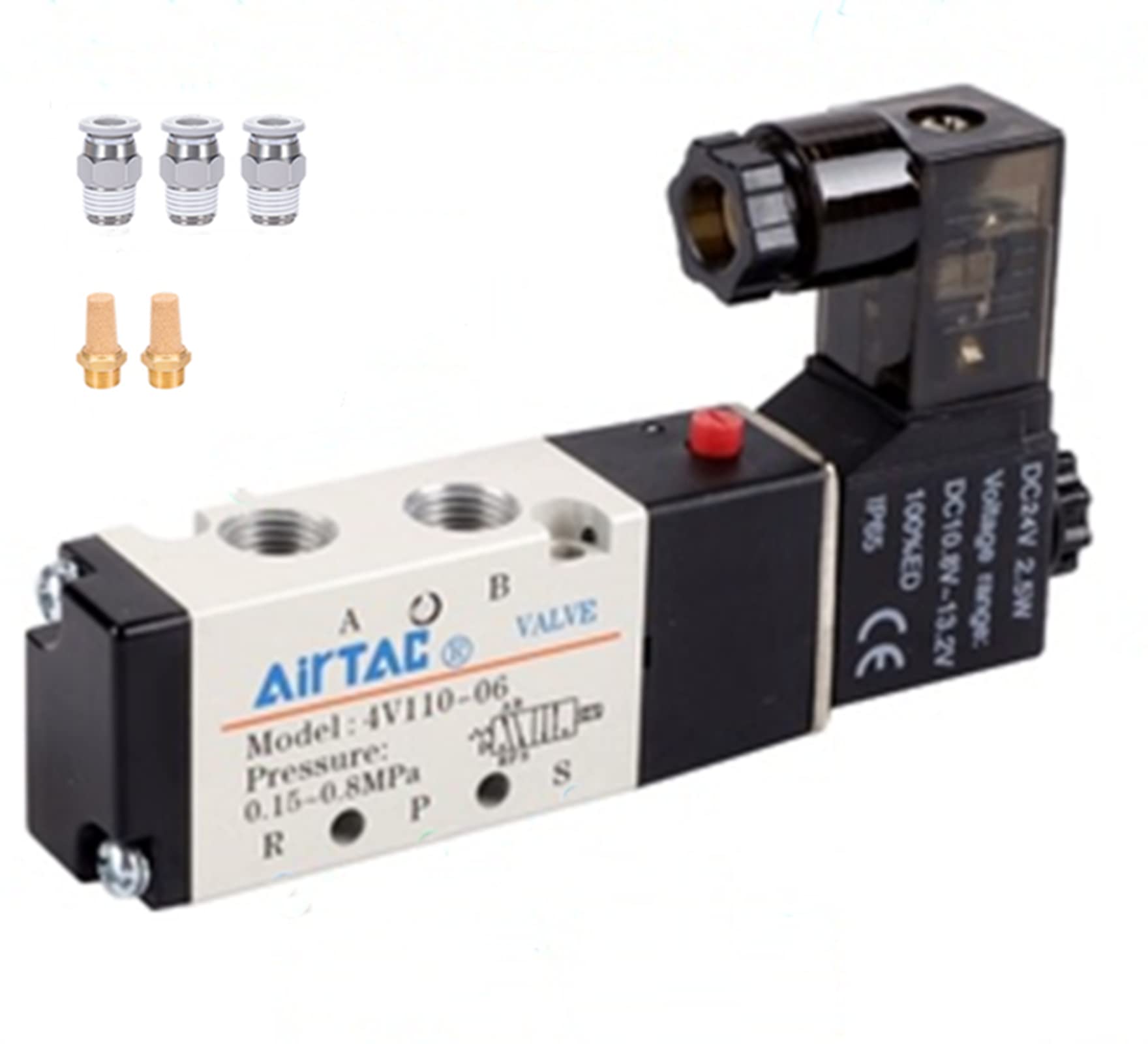

Silencer & Fittings: Install a silencer on the exhaust port to prevent dust, and use quick-connect fittings for the 1/4" and 1/8" ports for easy installation.
