Airtac 4V210-08 AC110V Solenoid Valve: A High-Efficiency, Long-Life 5-Port, 2-Position Directional Valve Offering Reliability and Cost-Effectiveness
Airtac 4V210-08 AC110V Solenoid Valve: A High-Efficiency, Long-Life 5-Port, 2-Position Directional Valve Offering Reliability and Cost-Effectiveness
Couldn't load pickup availability
Product Technical Parameters
| Parameter Category | Technical Specification |
| Product Model | 4V210-08 |
| Operating Voltage | AC110V |
| Valve Type | 5-Port 2-Position |
| Actuation Type | Internally or Externally Piloted |
| Fluid Medium | Air filtered to 40 microns |
| Effective Area | 17.0mm² (Cv=1.0) |
| Port Size | Inlet/Outlet: 1/4"; Exhaust: 1/8" |
| Operating Pressure | 0.15–0.8 MPa (approx. 21–114 psi) |
| Max. Operating Frequency | 5 cycles/sec |
| Min. Excitation Time | 0.05 seconds |
| Operating Temperature | -20~70℃ |
| Body Material | Aluminum Alloy |
| Weight | Approx. 220g |
Note: For detailed dimension drawings and technical manuals, please contact customer service or download them from our official website.
Click to download the 4v200 Airtac catalog
Product Features and Application Scenarios
- Spool-Type (Sliding Column) Structure
Advantage: Provides excellent sealing, effectively reducing air leakage to improve system energy efficiency. It also offers a sensitive response, ensuring precise and synchronized equipment operation.
Application: Suitable for automated production lines with strict requirements for response speed and precision, such as packaging, sorting, and assembly equipment.
- Manual Override
Advantage: Simplifies the installation and debugging process. Field engineers can test the valve's actuation without power, greatly improving work efficiency.
- Multiple Thread Types Available
Advantage: Offers various options, including G and NPT threads, allowing you to select the appropriate type based on regional and equipment standards.
Installation and Operation Guide
To ensure optimal performance and service life, please adhere to the following installation points:
- Air Source Requirement: Must use clean air filtered through a 40μm filter element.
- Port Identification: Port P is the air inlet, Ports A/B are the working ports, and Ports R/S are the exhaust ports.
- Wiring: For DC coils with an indicator light, the terminals are polarized: "1" connects to the positive pole, and "2" connects to the negative pole. This requirement does not apply to AC coils.
Common Troubleshooting
| Symptom | Possible Cause | Solution |
| Solenoid valve does not actuate | 1. Air source is off or pressure is too low. 2. The coil is not energized or there is a power supply failure. 3. The valve spool is stuck. |
1. Check the air source and pressure. 2. Check the power supply, wiring, and voltage. 3. Clean the valve spool and remove any obstructions. |
| Excessive Leakage | 1、The valve spool or seals are worn. 2、Foreign matter is trapped inside the valve body. |
1. Replace worn or aged components. 2. Clean the interior of the valve body. |
| Sluggish Actuation | 1. The clearance between the valve spool and sleeve has increased. 2. There are impurities or deposits inside. |
1. Check and adjust the clearance. 2. Clean the interior of the valve. |
Core Selling Points (Why Choose Us?)
· High Efficiency, Reliability, and Rapid Response: With an effective area of 17.0mm² and a Cv value of 1.0, it ensures a swift response and precise, synchronized actuation in pneumatic systems.
·Lubrication-Free, Low Maintenance Costs: It features a spool-type design (sliding column structure) with excellent sealing properties that requires no additional lubrication. This significantly reduces routine maintenance, lowers costs, and extends equipment uptime.
· Flexible Installation, Wide Application: Available in a standard AC110V option, along with various other voltage specifications (e.g., AC220V, DC24V), it can be integrated with a dedicated base to form a compact valve bank, saving installation space.
·Cost-Effective Industrial-Grade Solution: The Airtac brand is known for providing high-performance, durable, and reliable pneumatic components at a great value.
Recommended Companion Products (One-Stop Solution)
Manifold/Base: Recommended for use with the 4V200 series manifold to simplify piping layout and save installation space.
Air Source Treatment Unit: Pair with the Airtac FRL series (Filter, Regulator, Lubricator), especially a filter with a 40μm element, to ensure clean air.

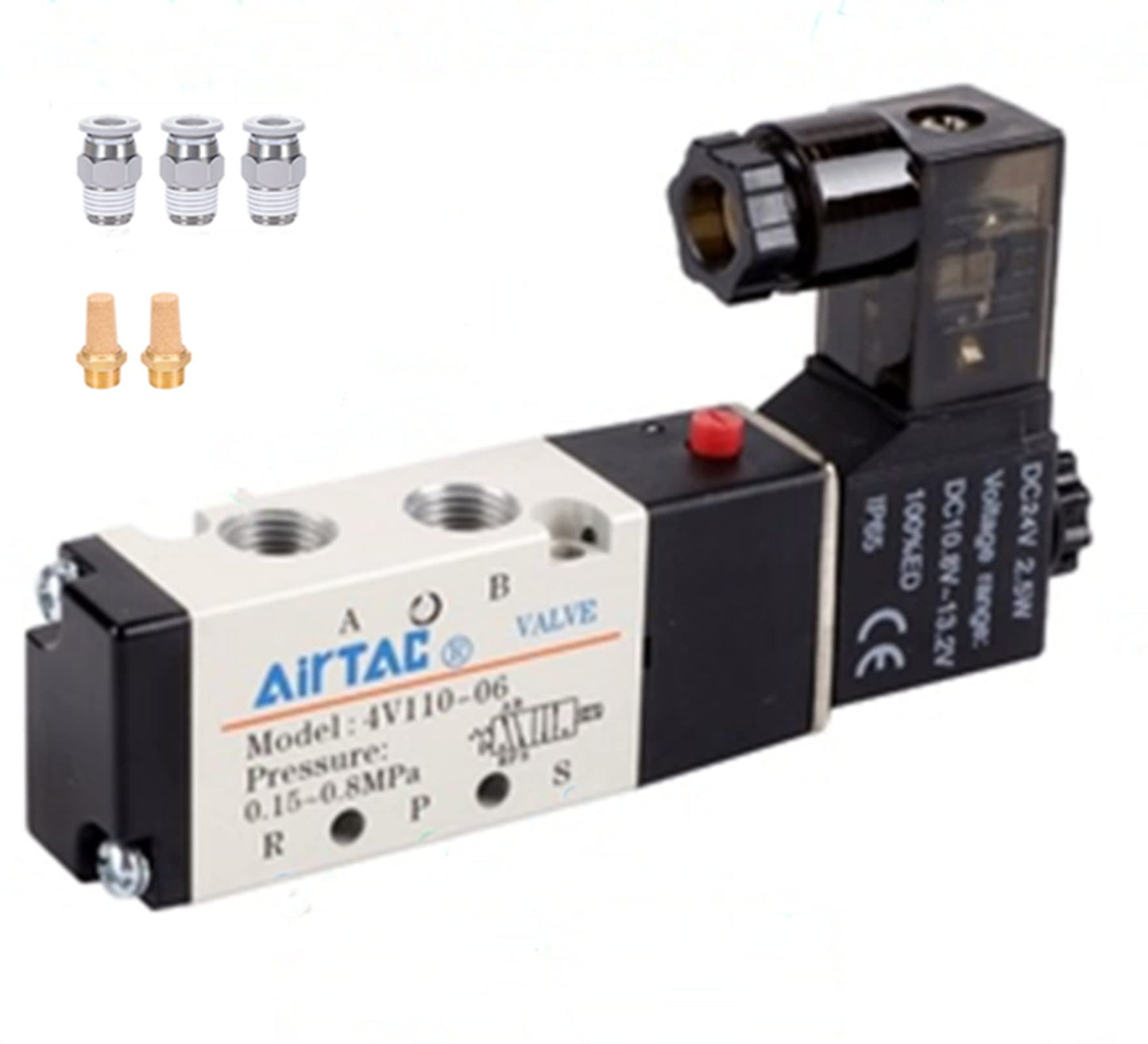

Mufflers and Fittings: Install a muffler on the exhaust port to prevent dust ingress and use quick-connect fittings suitable for 1/4" and 1/8" ports for convenient installation.
