Airtac 4V110-06B DC24V Solenoid Valve | 5/2 Way | Compact | Official Product

1. Core Advantages

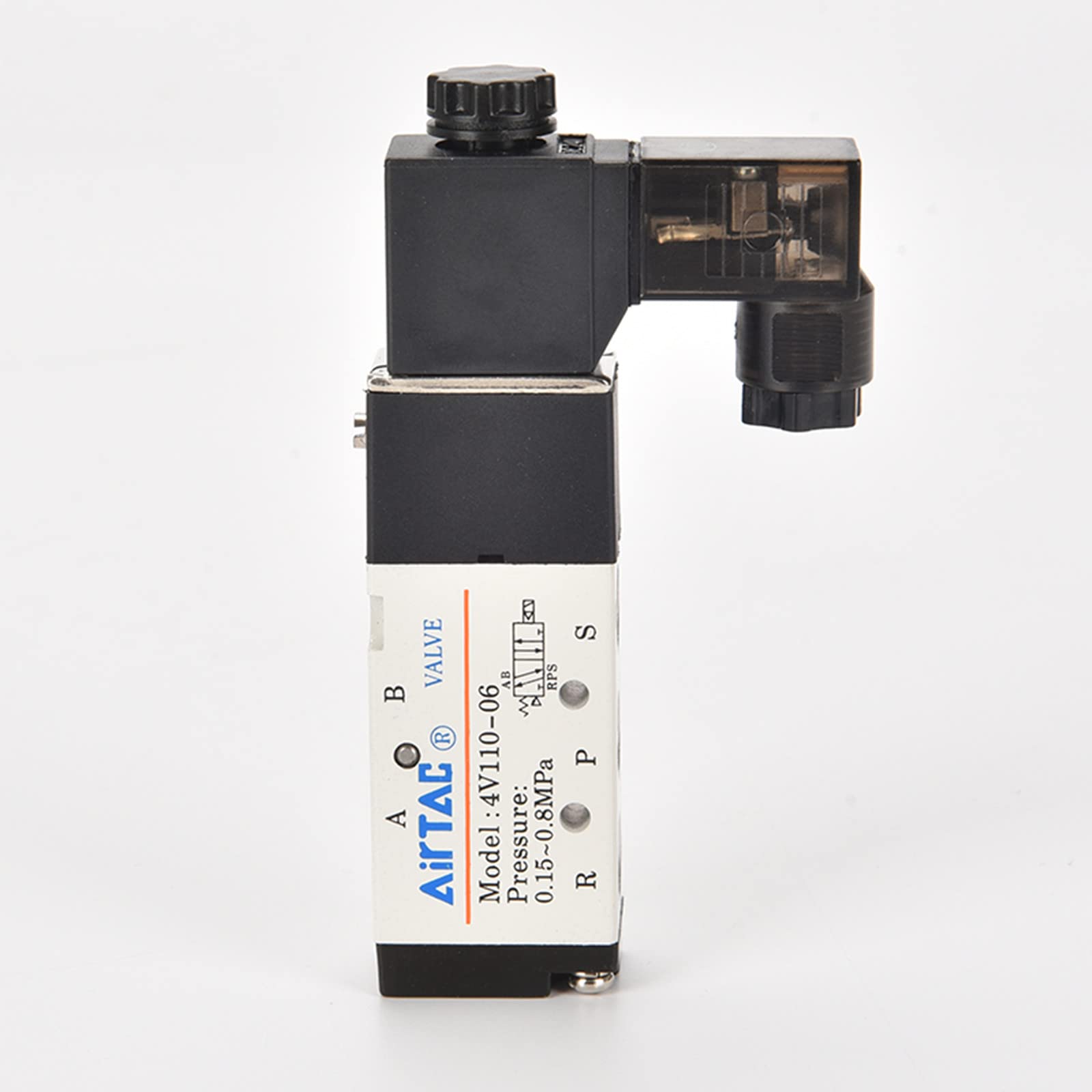

The Airtac 4V110-06 DC24V solenoid valve is the most compact model in the 4V series, engineered specifically for automation equipment with space constraints. It's a perfect fit for PLC control systems, and with its low power consumption and excellent anti-interference capabilities, it ensures stable and efficient operation in densely integrated environments. The safe, low-voltage DC24V power also significantly enhances operational safety.

2. Product Features

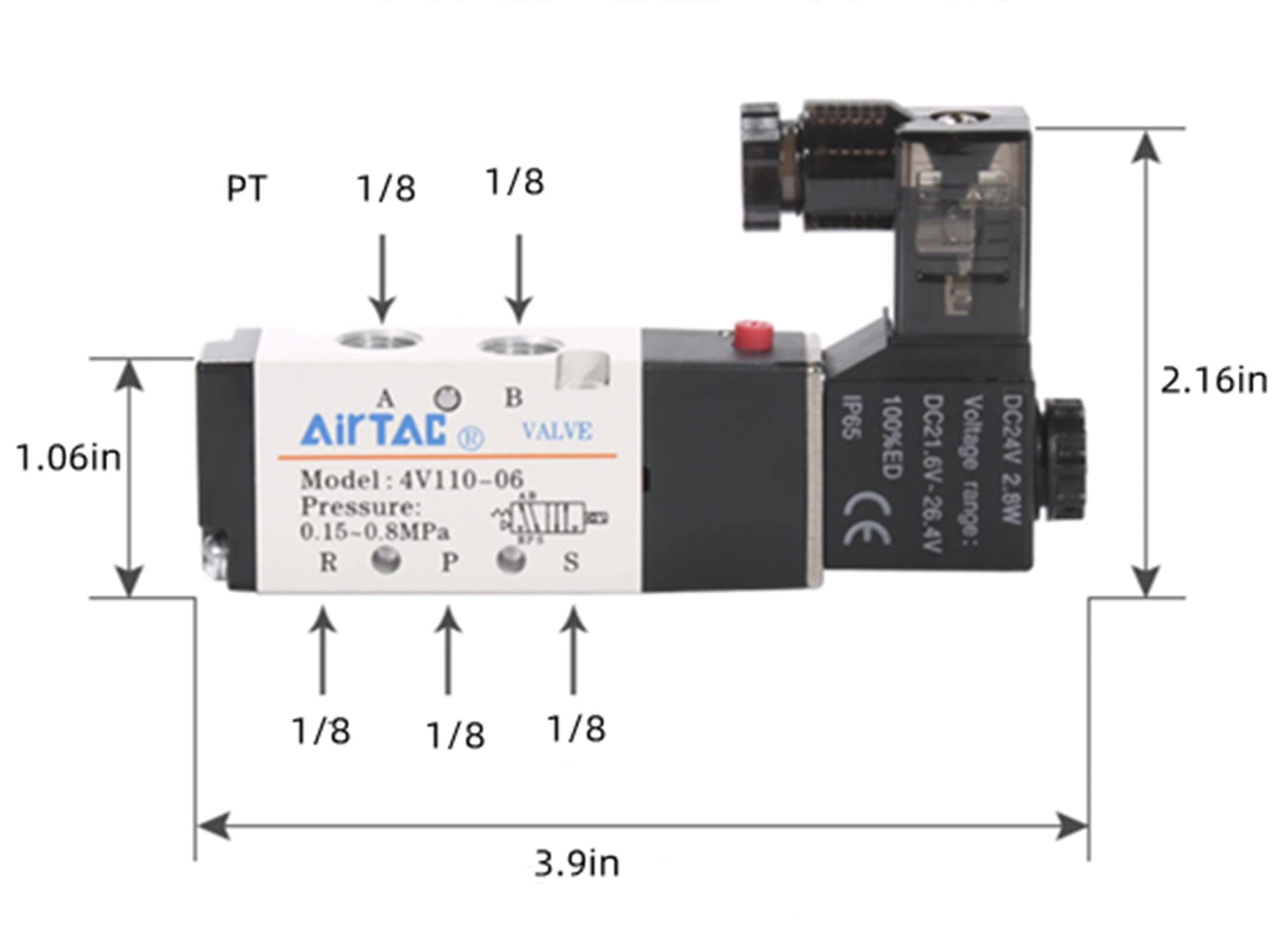

• Compact Size, Space-Saving: With a 1/8-inch port size and a compact body, it's an ideal choice for small machinery and control cabinets.

• Low Power Consumption & High Safety: Its low power consumption of 3.0W results in minimal temperature rise, and when combined with the safe DC24V voltage, it effectively protects both equipment and personnel.

• Seamless PLC Compatibility: It requires no additional conversion circuits and can be connected directly to mainstream PLC control modules, simplifying design and wiring.

3. Technical Specifications

FAQs

1. What are the main application scenarios for the 4V110-06B DC24V solenoid valve?

Due to its compact size and low-voltage DC24V characteristics, this solenoid valve is primarily used in automation equipment where space is limited and power consumption and safety are key. It is particularly well-suited for use with PLC control systems, small robotic arms, and precision pneumatic fixtures.

2. Why choose the 4V110-06B over a larger port model?

The main advantage of the 4V110-06B is its 1/8-inch port size, which is an excellent match for small cylinders and pneumatic components. In applications that don't require high flow, choosing this model can significantly save installation space and cost while also reducing power consumption.

3. How can I tell if a DC24V solenoid valve coil is working properly?

The simplest ways to check are:

• Listen for a sound: When the coil is powered on, you should hear a crisp "click," which indicates the coil has energized.

• Look at the indicator light: If the solenoid valve has an LED indicator, it will light up when powered on.

• Measure with a multimeter: Disconnect the power and use a multimeter to measure the resistance across the coil's terminals. If it shows an open circuit or an abnormal resistance value, the coil may be damaged.

4. What are the advantages of the 4V110-06B compared to other voltage versions?

Compared to the AC versions, the DC24V version has the advantages of being silent, generating less heat, and offering superior anti-interference capabilities. Additionally, it can be connected directly to industrial control systems (like PLCs), making it an ideal choice for low-voltage control circuits.

5. What should I pay attention to when installing this solenoid valve?

• Ensure a clean air source: You must use filtered compressed air to prevent impurities from entering the valve body and affecting its operation.

• Verify the voltage: Before installation, always double-check that the power supply voltage is DC24V to prevent the coil from burning out due to a voltage mismatch.

• Install according to the arrow direction: Strictly follow the airflow direction arrows marked on the valve body during connection to prevent incorrect installation.
