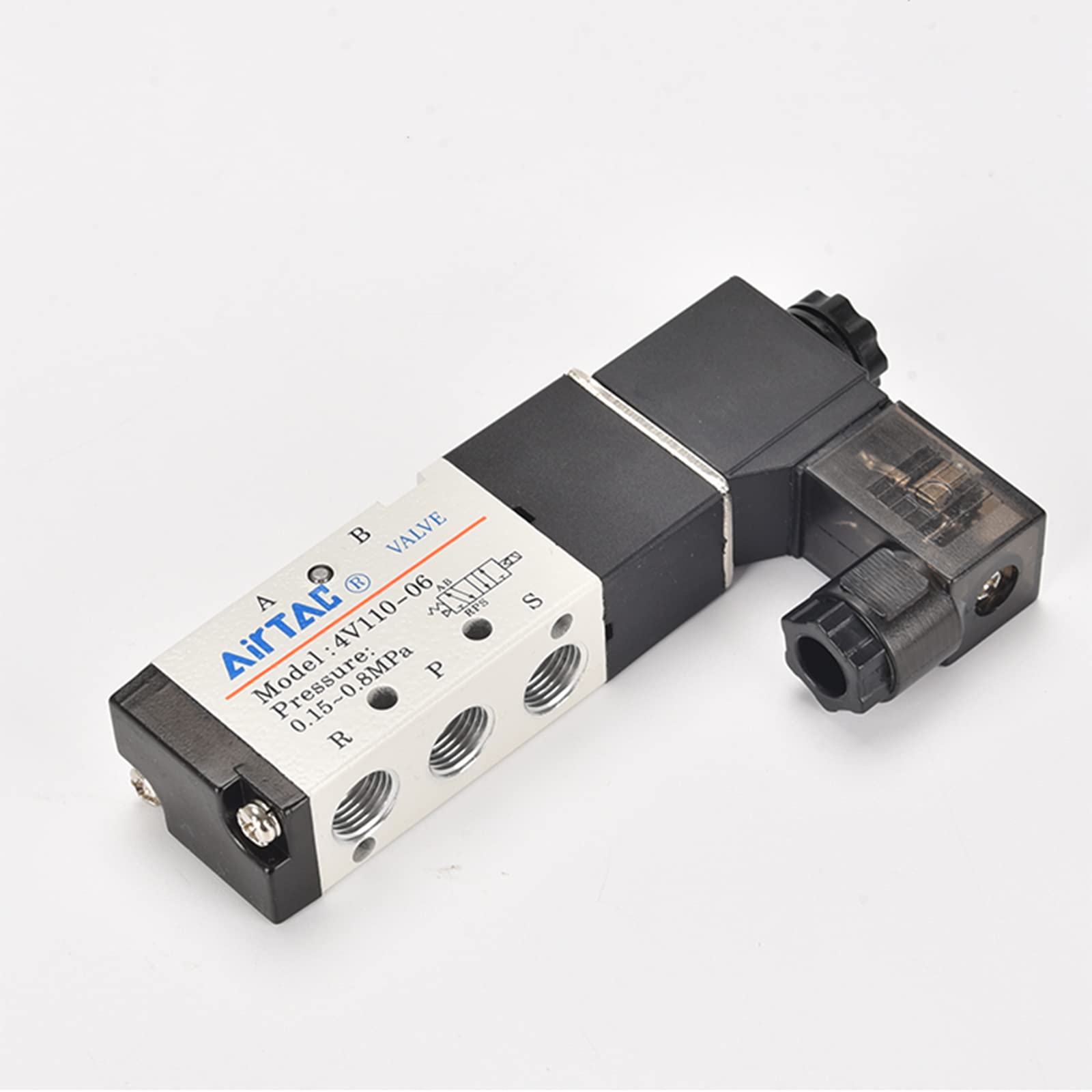

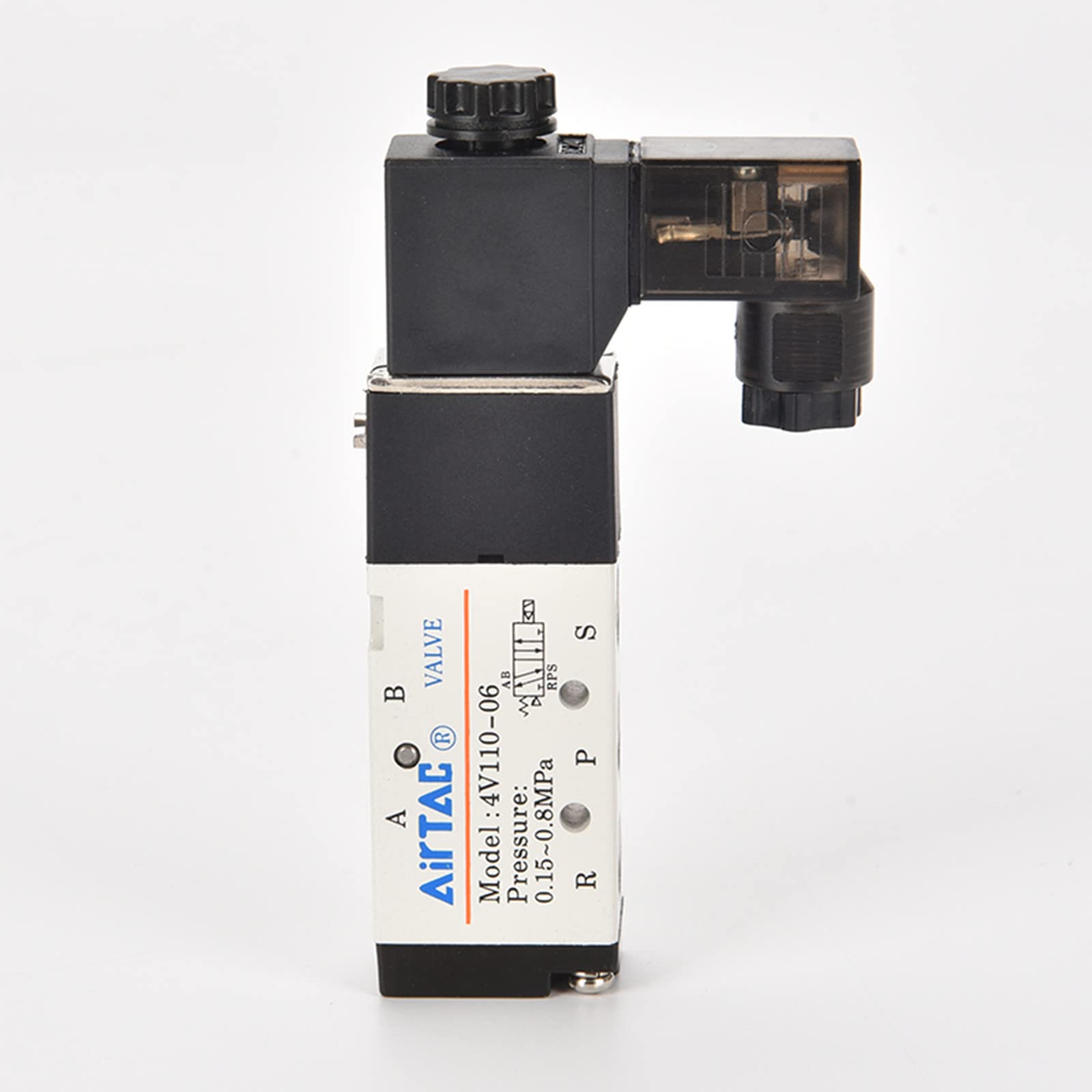

Airtac 4V110-06 AC110V Solenoid Valve | Ultra-Compact 5/2 Way, Ideal for North American and Export Equipment

$27.88 USD

Sale Sold out

Taxes included.

Port size PT thread 1/8" NPT

Technical Specifications

Parameter Category	Technical Specification	User Value
Product Model	4V110-06	The "-06" suffix represents the G1/8" port, designed for precision applications.
Working Voltage	AC 110V	Adapts to specific regional power grids (e.g., North America, Japan) and export equipment, eliminating the need for a transformer.
Valve Type	5 Port 2 Position (Single Solenoid)*	Single coil spring return; simple and reliable structure. Automatically resets upon power loss, ensuring system safety.

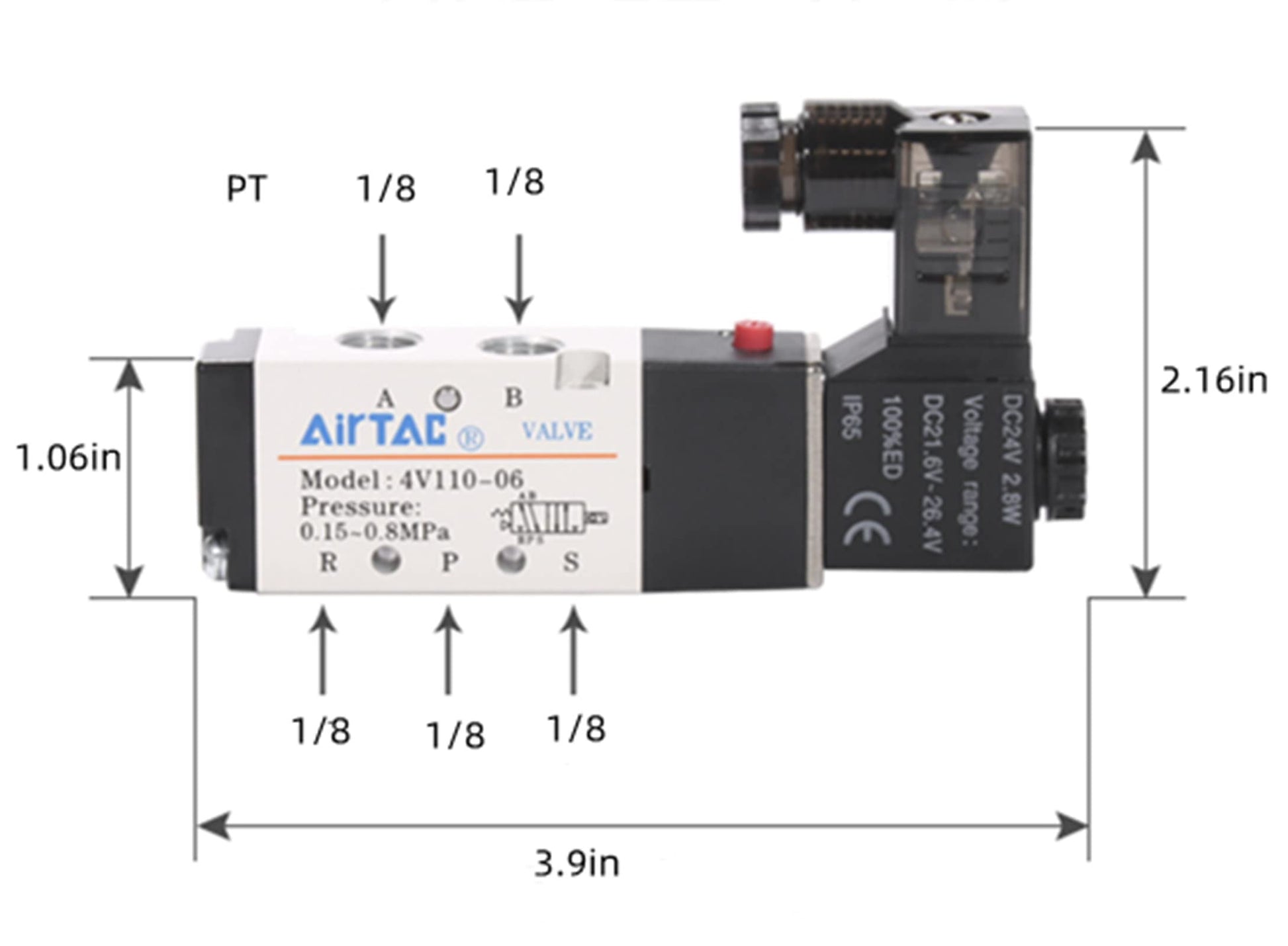

Port Size	PT or 1/8 NPT	Adapts to pneumatic connections for precision control, saving space and facilitating compact layouts.
Effective Orifice Area	$\approx 12.0 mm^{2}$ ( $C_{v} \approx 0.67$ )*	Optimized for medium-to-low flow applications, resulting in lower energy consumption and sensitive response.
Working Pressure	$0.15 \sim 0.8 MPa (21 \sim 114 psi)$ *	Wide pressure range, suitable for the standard air source of most precision equipment.
Working Temperature	$- 20 \sim 7 0^{\circ} C$ *	Ensures stable operation in various conventional industrial environments.
Body Material	Aluminum Alloy*	Lightweight and sturdy material with good heat dissipation, ensuring long-term stability.

Note: Some parameters are estimated based on common characteristics of the Airtac 4V series. Please refer to the official product manual for final specifications.

Feature Analysis

Feature	Advantage	Typical Application Scenarios
Compact Valve Body	Greatly saves installation space, supports high-density integration, and reduces overall equipment size and weight.	Robot arms, medical analysis instruments, portable testing devices.
Spool Type Structure	Sensitive reaction and excellent sealing, guaranteeing the synchronicity and reliability of precision control.	Semiconductor wafer handling, mobile phone screen lamination, automated dispensing equipment.
Lubrication-Free	Reduces maintenance costs and prevents oil contamination, suitable for clean environments.	Food packaging, pharmaceutical production, optical component assembly.
Manual Override Device	Simplifies initial installation/commissioning and subsequent troubleshooting processes.	All equipment integrating this valve during installation, commissioning, and maintenance phases.

Core Selling Points

Ultra-Compact, Maximizes Valuable Space: Significantly smaller than standard valves, supporting high-density mounting. This allows for more flexible and lighter equipment design.
Instant Response, Pinpoint Accuracy: Optimized specifically for medium-to-low flow precision control ( $C_{v} \approx 0.67$ *), ensuring every direction change is fast and reliable.
Stable and Durable, Lifetime Lubrication-Free: Inherits the reliable quality of the 4V series, drastically reducing maintenance costs and equipment downtime risk.
Regionally Compliant, Broad Application: Features AC 110V standard voltage, perfectly matching the grid standards in regions like North America and Japan, and meeting export equipment requirements without the need for additional voltage conversion.

Installation & Wiring Guide

Installation Points

Port Identification: You must confirm the correct connection of the P port (Inlet), A/B ports (Working), and R/S ports (Exhaust).
Air Quality: It is strongly recommended to use clean, dry air filtered by a $40 μ m$ filter element.
Installation Torque: Due to the compact size of the valve body, please use a tool with an appropriate torque during installation to avoid damaging the threads.

Electrical Wiring Guide

Voltage Confirmation: Please ensure the power supply is AC 110V.
Polarity Requirement: Easy Wiring! The AC (Alternating Current) coil has no positive or negative polarity requirements, making wiring fast and simple.

Trust & Assurance

AirTAC is a globally renowned professional pneumatic equipment supplier. Products are certified by multiple international quality systems, providing you with the most reliable quality assurance.

Recommended Companion Products (One-Stop Solution)

Manifold/Base: We highly recommend pairing with the 100M series manifold to create a compact valve assembly and maximize space utilization.
Air Preparation Unit: Recommended matching with AirTAC's AC/BC series FRL products designed for low flow, ensuring a clean air source.

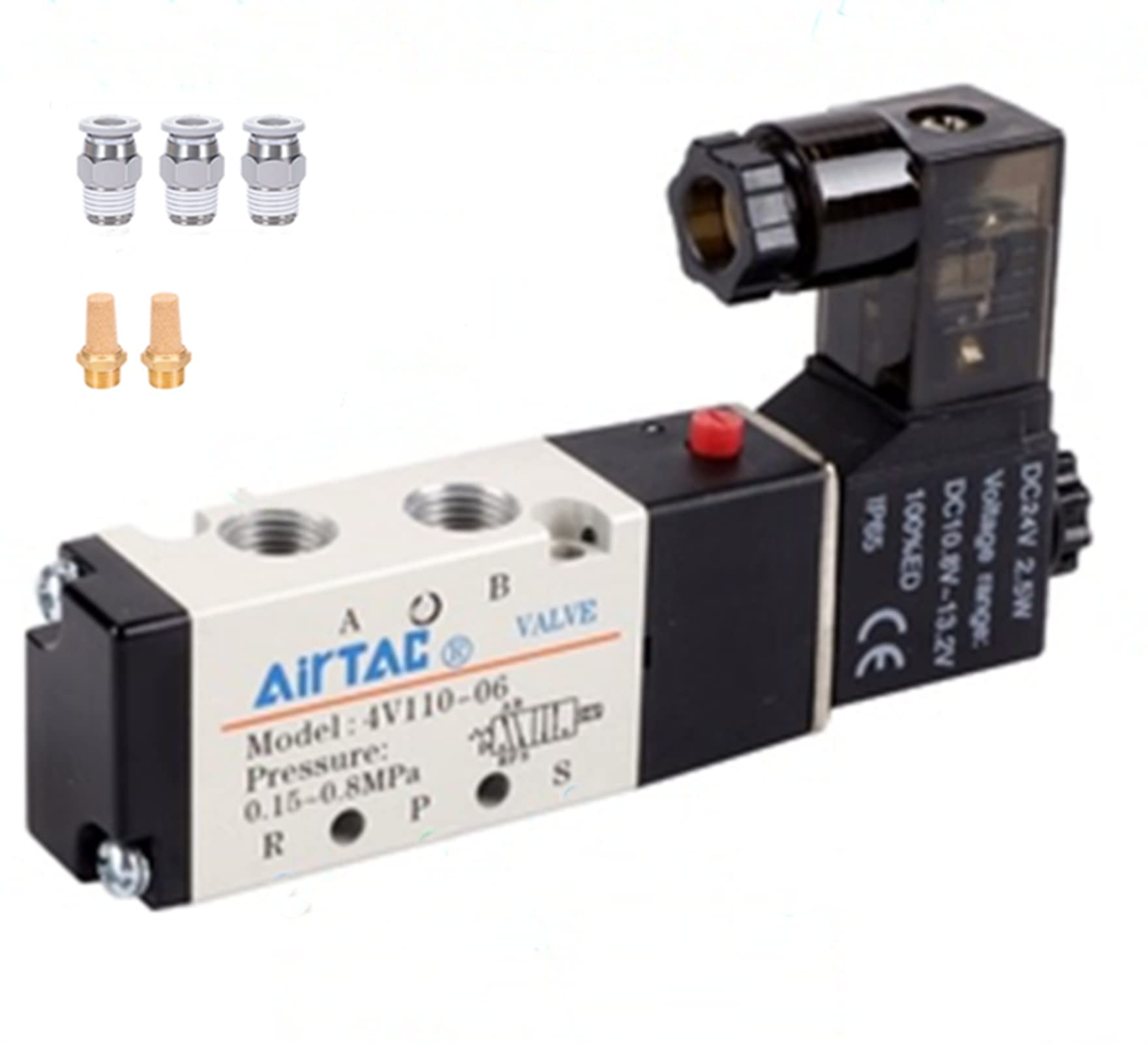

Silencers and Fittings: Recommended silencers and quick connectors suitable for the G1/8" port.
