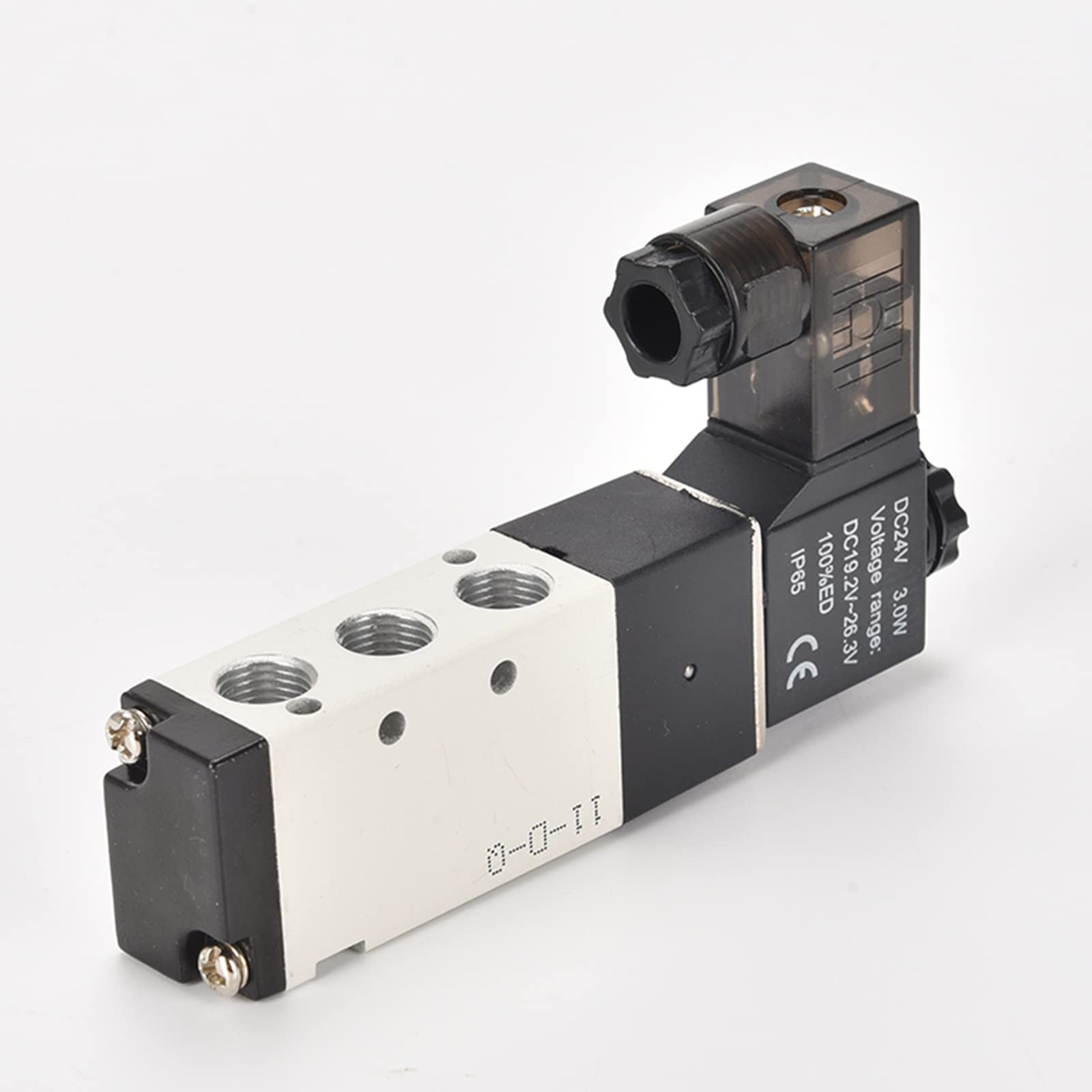

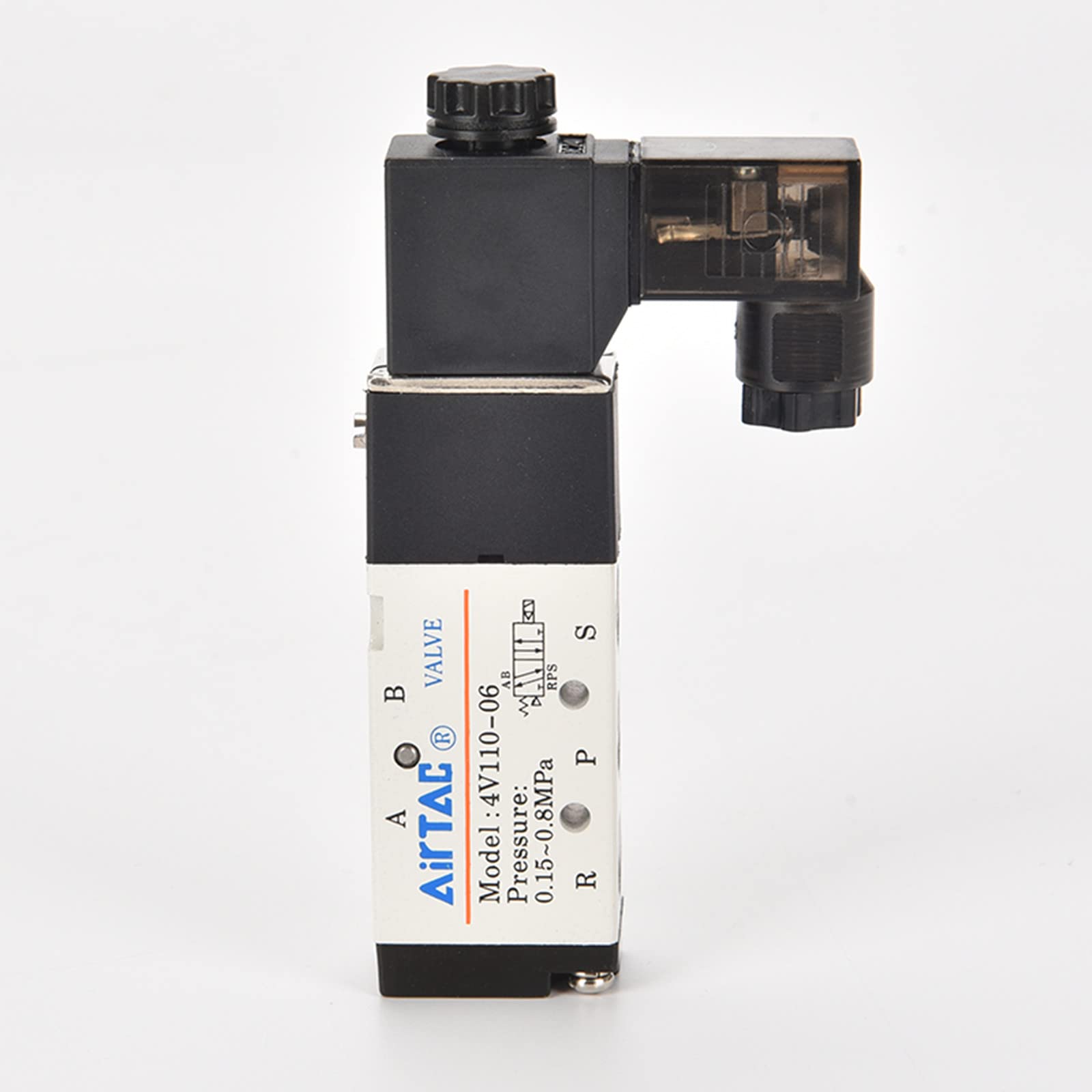

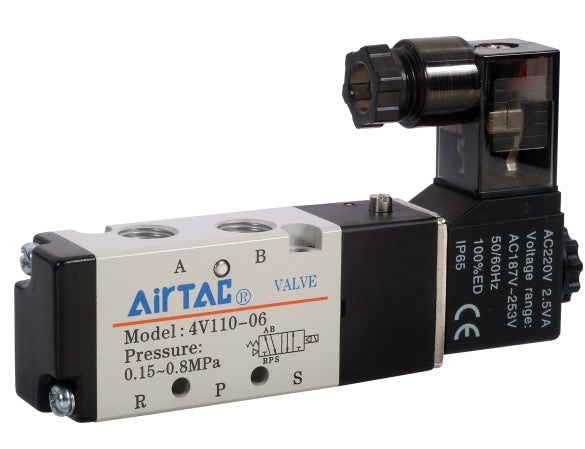

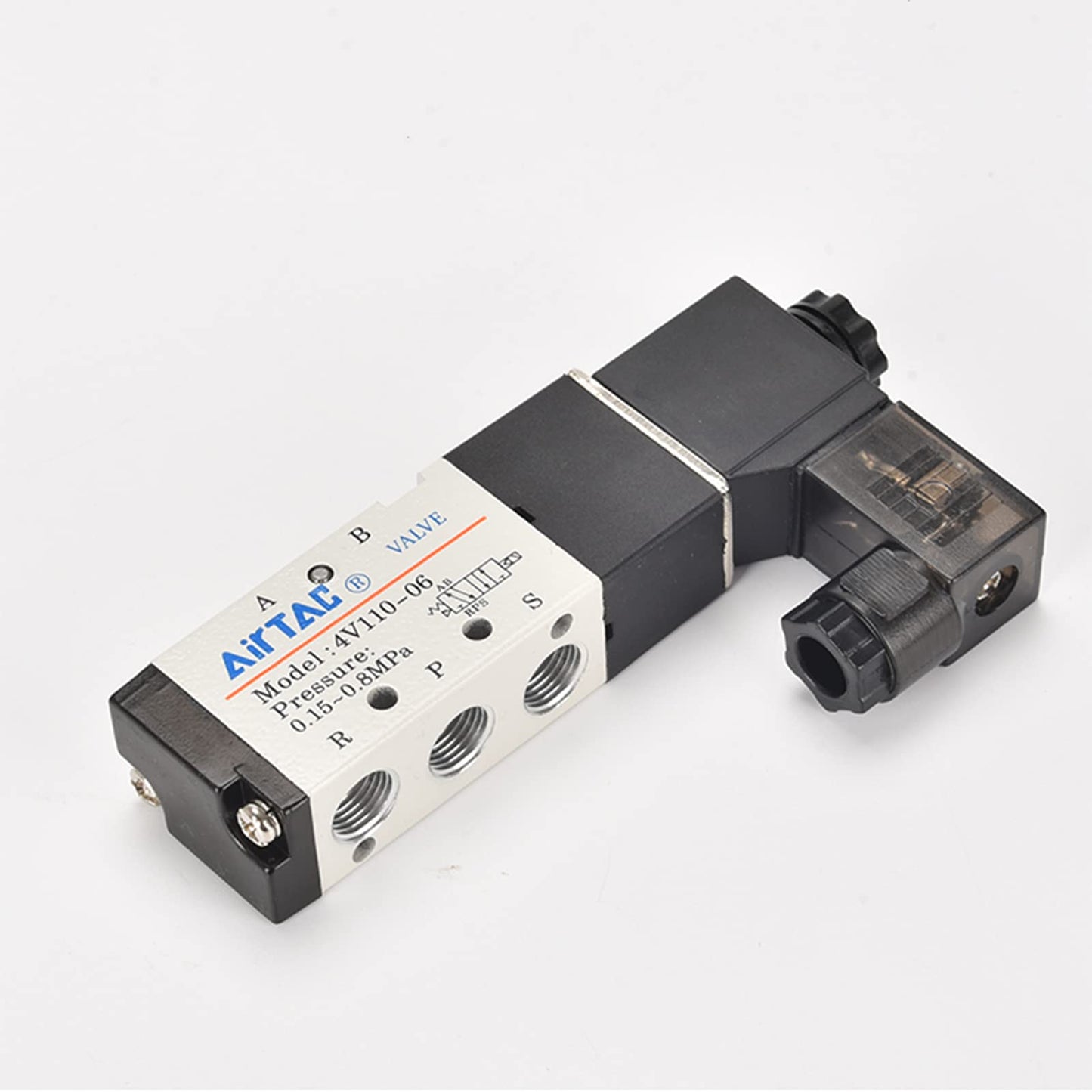

Airtac 4V110-06 DC 12V Solenoid Valve | Ultra-Compact 5/2 Way for Mobile Devices and Low-Pressure Precision Control

$27.88 USD

Sale Sold out

Taxes included.

Port size PT thread 1/8" NPT

Core Selling Points

Ultra-Compact, Maximizes Valuable Space: Significantly smaller than standard valves, supporting high-density mounting. Allows for more flexible and lighter equipment design.
Instant Response, Pinpoint Accuracy: Optimized specifically for medium-to-low flow precision control ( $C_{v} \approx 0.67$ *), ensuring every direction change is fast and reliable.
Stable and Durable, Lifetime Lubrication-Free: Inherits the reliable quality of the 4V series, drastically reducing maintenance costs and equipment downtime risk.
Flexible Integration, Wide Adaptability: DC 12V safe low voltage, making it ideal for mobile devices, vehicle systems, and various low-pressure precision control scenarios.

Technical Specifications Details

Note: Some parameters are inferred based on common characteristics of the Airtac 4V series. Please refer to the official product manual for final specifications.

Parameter Category	Technical Specification	User Value
Product Model	4V110-06	The "-06" suffix denotes a G1/8" port, designed specifically for precision applications.
Working Voltage	DC 12V	Safe low voltage, suitable for mobile, vehicle, and precision low-pressure control systems.
Valve Type	5 Port 2 Position (Single Solenoid)*	Single coil spring return; simple and reliable structure. Automatically resets upon power loss, ensuring system safety.

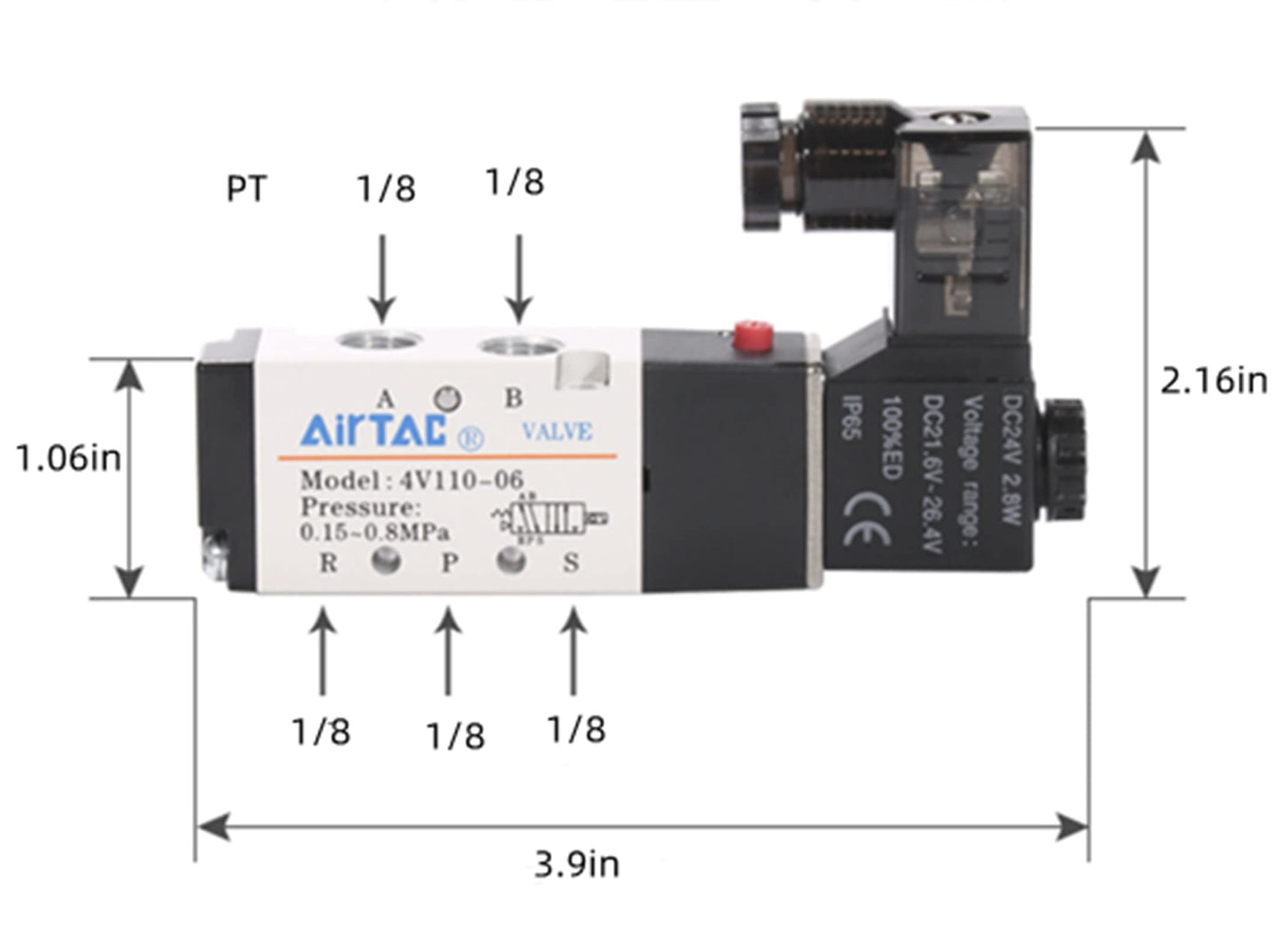

Port Size	PT or 1/8NPT	Adapts to the pneumatic connections required for precision control, saving space and facilitating compact layouts.
Effective Orifice Area	$\approx 12.0 mm^{2}$ ( $C_{v} \approx 0.67$ )*	Optimized for medium-to-low flow applications, resulting in lower energy consumption and sensitive response.
Working Pressure	$0.15 \sim 0.8 MPa (21 \sim 114 psi)$ *	Wide pressure range, suitable for the standard air source of most precision equipment.
Working Temperature	$- 20 \sim 7 0^{\circ} C$ *	Ensures stable operation in various conventional industrial environments.
Body Material	Aluminum Alloy*	Lightweight and sturdy material with good heat dissipation, ensuring long-term stability.

Feature Analysis

Feature	Advantage	Typical Application Scenarios
Compact Valve Body	Greatly saves installation space, supports high-density integration, and reduces overall equipment size and weight.	Robot arms, medical analysis instruments, portable testing equipment.
Spool Type Structure	Sensitive reaction and good sealing performance, guaranteeing the synchronicity and reliability of precision control.	Semiconductor wafer handling, mobile phone screen lamination, automated dispensing equipment.
No Lubrication Required	Reduces maintenance costs and prevents oil contamination, suitable for clean environments.	Food packaging, pharmaceutical production, optical component assembly.
Manual Override Device	Simplifies the initial installation/commissioning and subsequent troubleshooting process.	All equipment integrating this valve during installation, commissioning, and maintenance phases.

Installation & Wiring Guide

Installation Points

Port Identification: You must confirm the correct connection of the P port (Inlet), A/B ports (Working), and R/S ports (Exhaust).
Air Quality: It is strongly recommended to use clean, dry air filtered by a $40 μ m$ filter element.
Installation Torque: Due to the compact size of the valve body, please use a tool with an appropriate torque during installation to avoid damaging the threads.

Electrical Wiring Guide

Voltage Confirmation: Please ensure the power supply is DC 12V.
Polarity Requirement: Important! The DC solenoid coil has positive and negative polarity requirements. Please wire correctly according to the instructions (typically "1" for positive, "2" for negative); otherwise, it may result in the indicator light not illuminating or coil damage.

Trust & Assurance

AirTAC is a globally renowned professional pneumatic equipment supplier. Products are certified by multiple international quality systems, providing you with the most reliable quality assurance.

Recommended Companion Products (One-Stop Solution)

Manifold/Base: We highly recommend pairing with the 100M series manifold to create a compact valve assembly and maximize space utilization.
Air Preparation Unit: Recommended matching with AirTAC's AC/BC series FRL products designed for low flow, ensuring clean air source.
Silencers and Fittings: Recommended silencers and quick connectors suitable for the G1/8" port.
