Function: 5/2 Way, Single Solenoid (Spring Return)
Voltage: DC24V

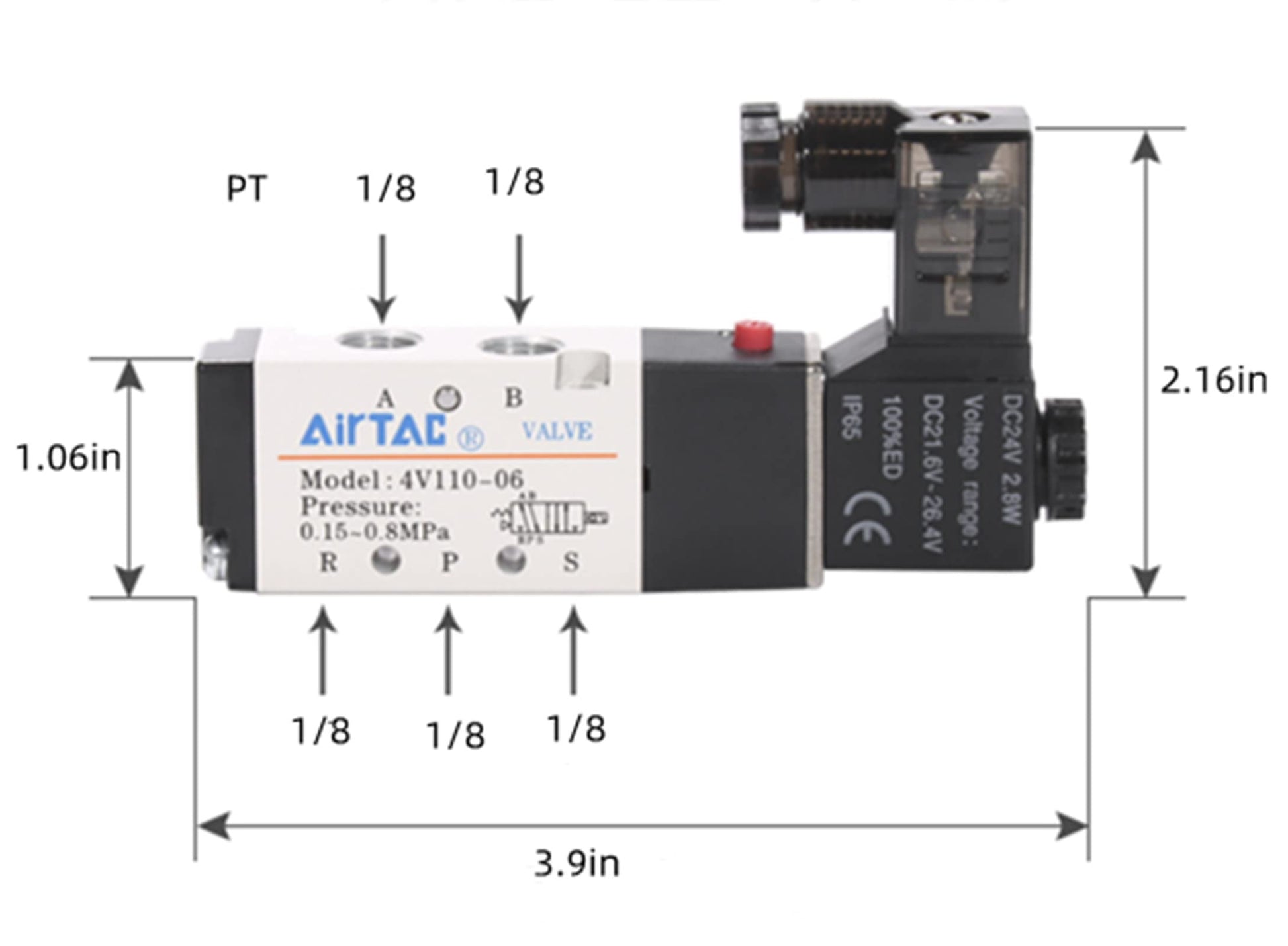

Port Size: G1/8"
Effective Area: 5.5 mm²
Cv Value: 0.30
Working Pressure: 0.15 – 0.8 MPa (1.5 – 8 bar)
Temperature Range: -10°C ~ 50°C (14°F ~ 122°F)
Medium: Filtered Air (40 μm)
Operating Frequency: Up to 5 cycles/second
Application Scenarios
Suitable for industrial automation, packaging machines, and assembly lines powered by DC24V. The 5/2 single solenoid design with spring return ensures reliability under PLC control.
