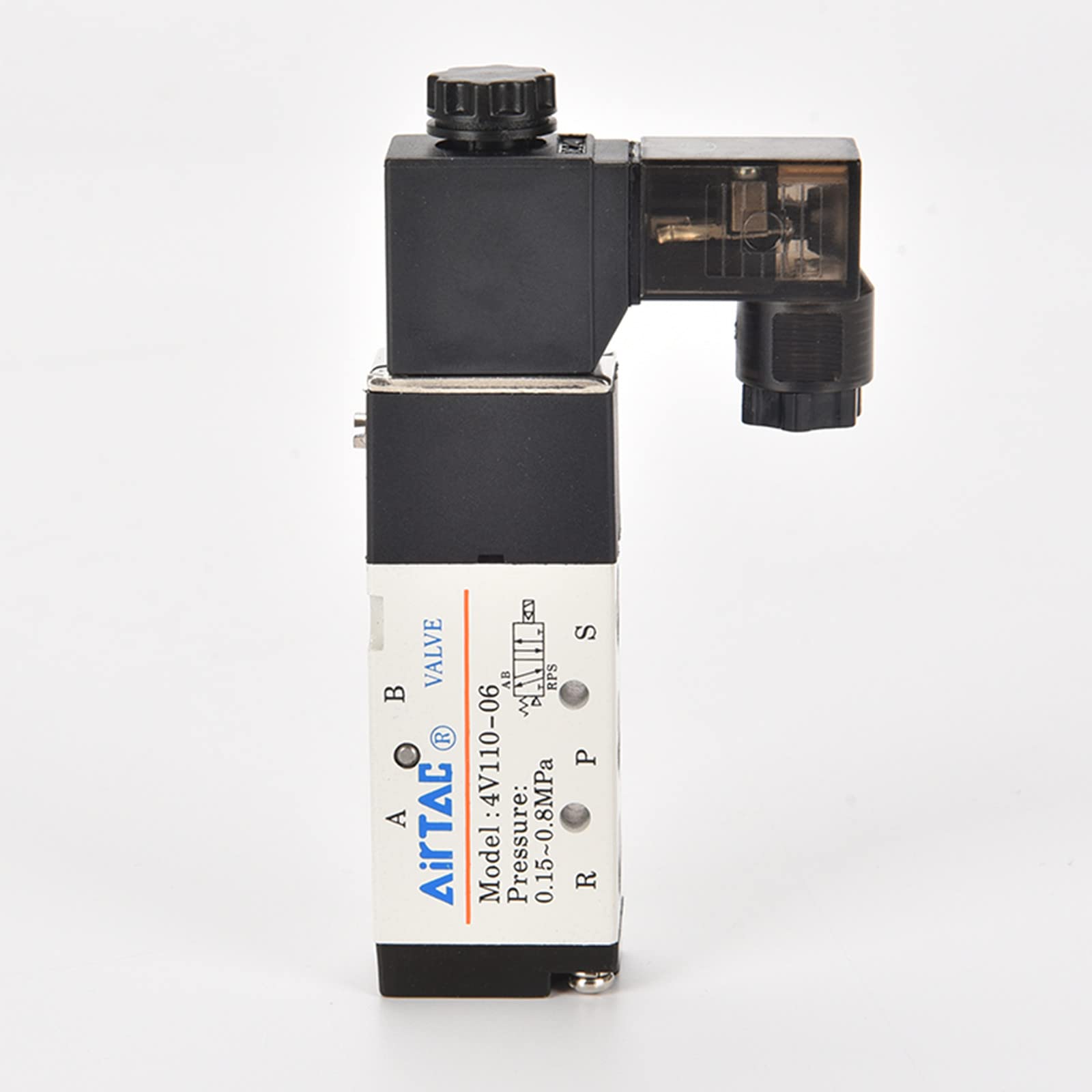

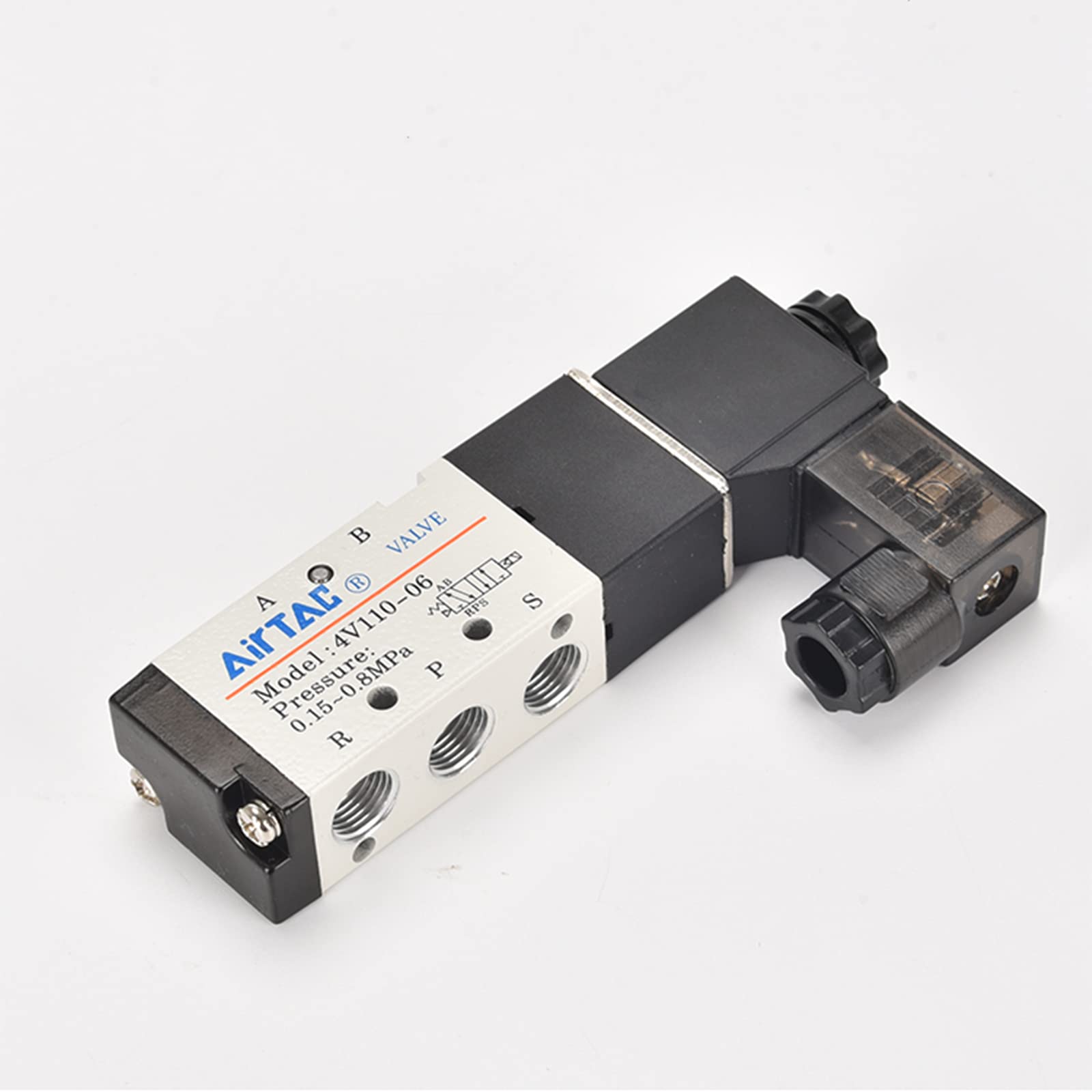

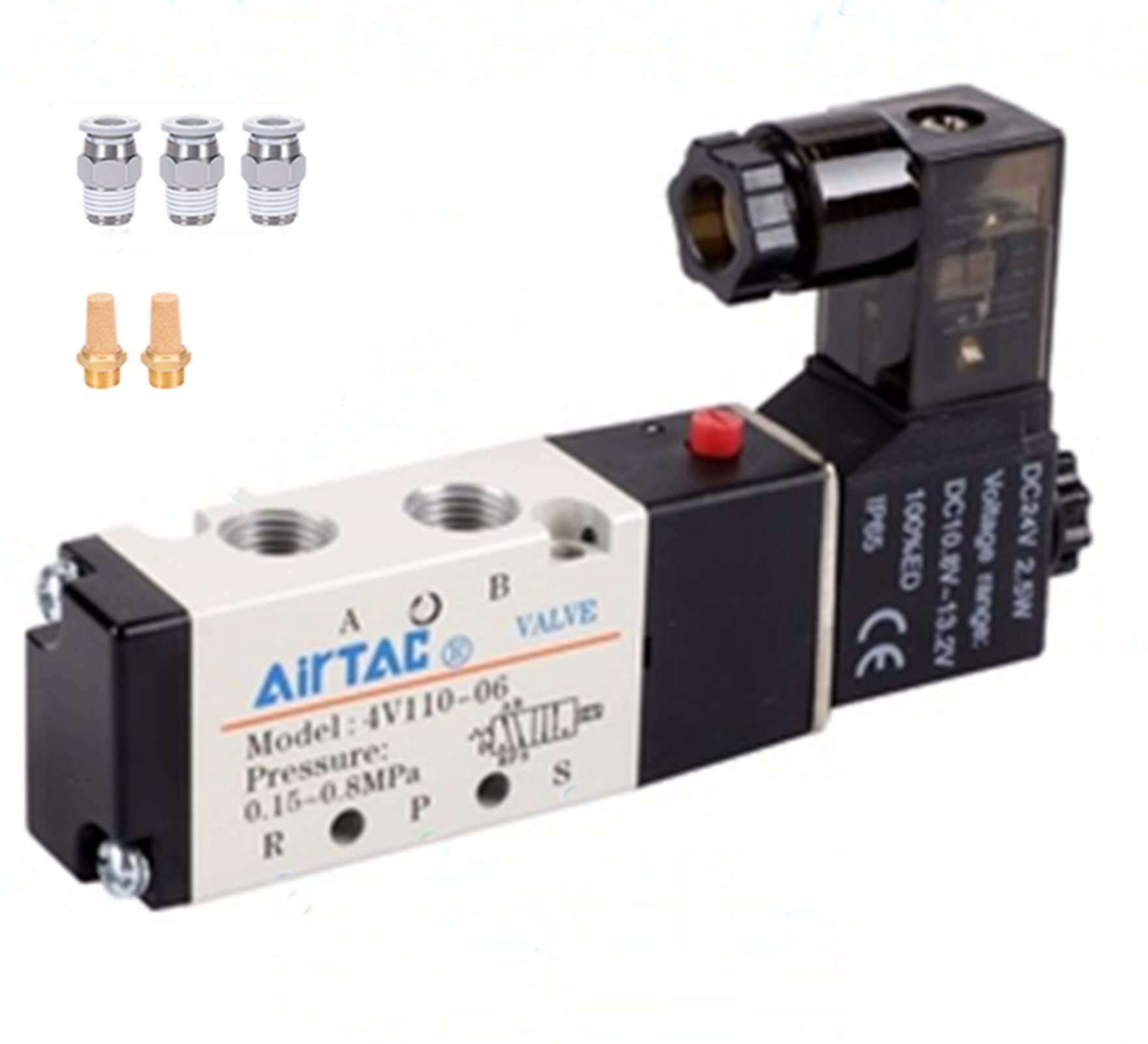

Function: 5/2 Way, Single Solenoid (Spring Return)
Voltage: DC12V

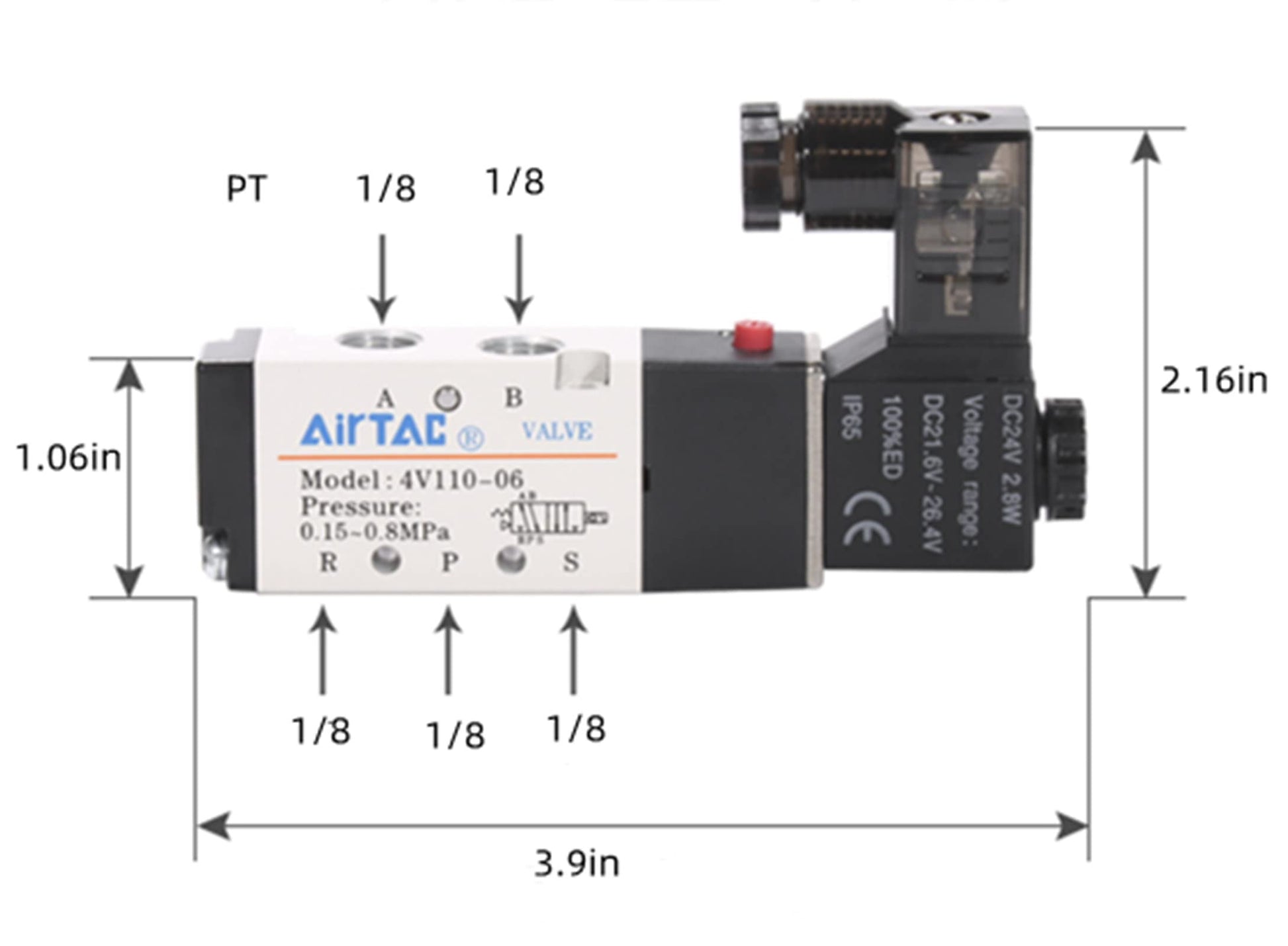

Port Size: G1/8"
Effective Area: 5.5 mm²
Cv Value: 0.30
Working Pressure: 0.15 – 0.8 MPa (1.5 – 8 bar)
Temperature Range: -10°C ~ 50°C (14°F ~ 122°F)
Medium: Filtered Air (40 μm)
Operating Frequency: Up to 5 cycles/second
Application Scenarios
This DC12V 5/2 single solenoid valve with spring return is ideal for compact pneumatic systems, laboratory automation, and small workstations. The G1/8" ports offer sufficient airflow for most light-duty actuators.
