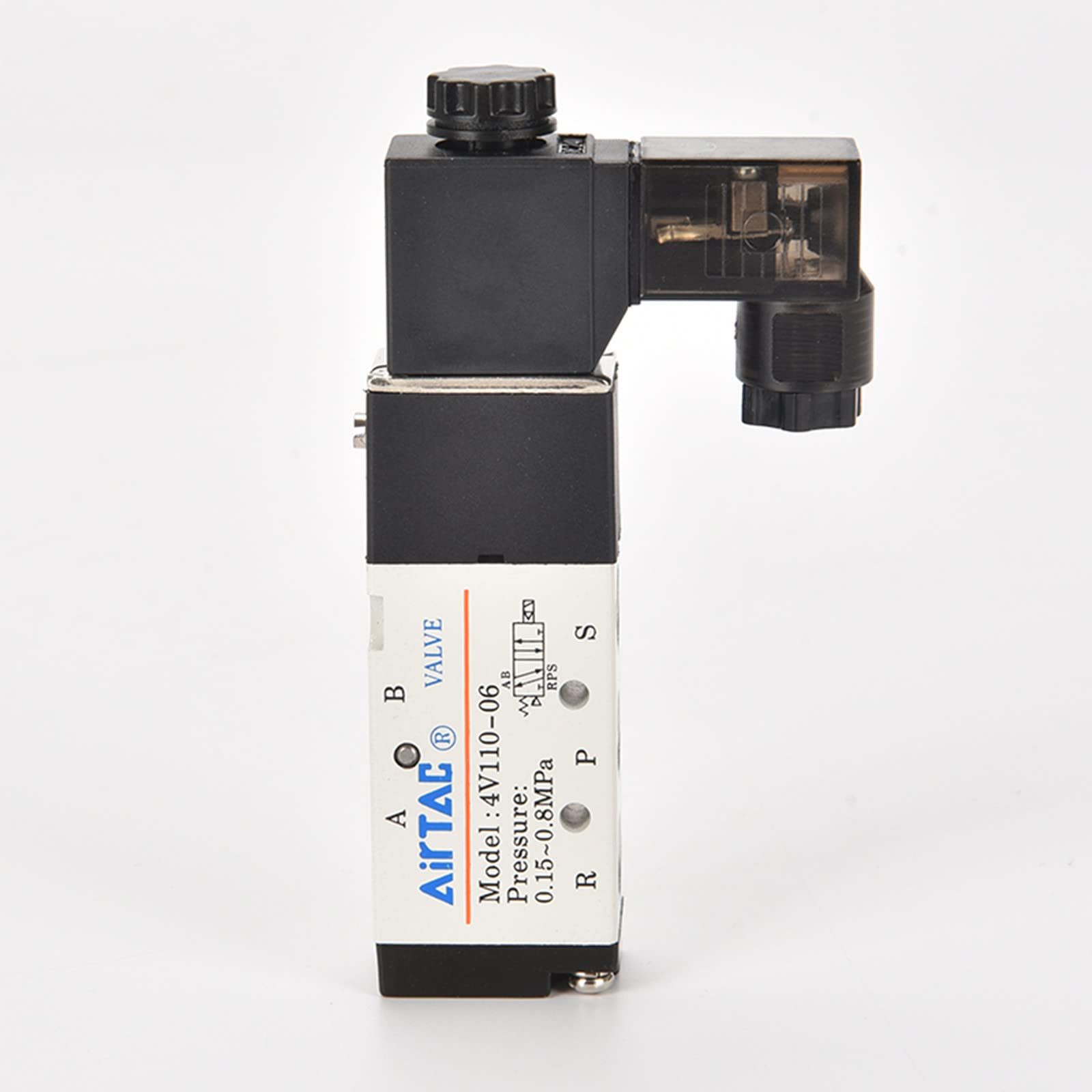

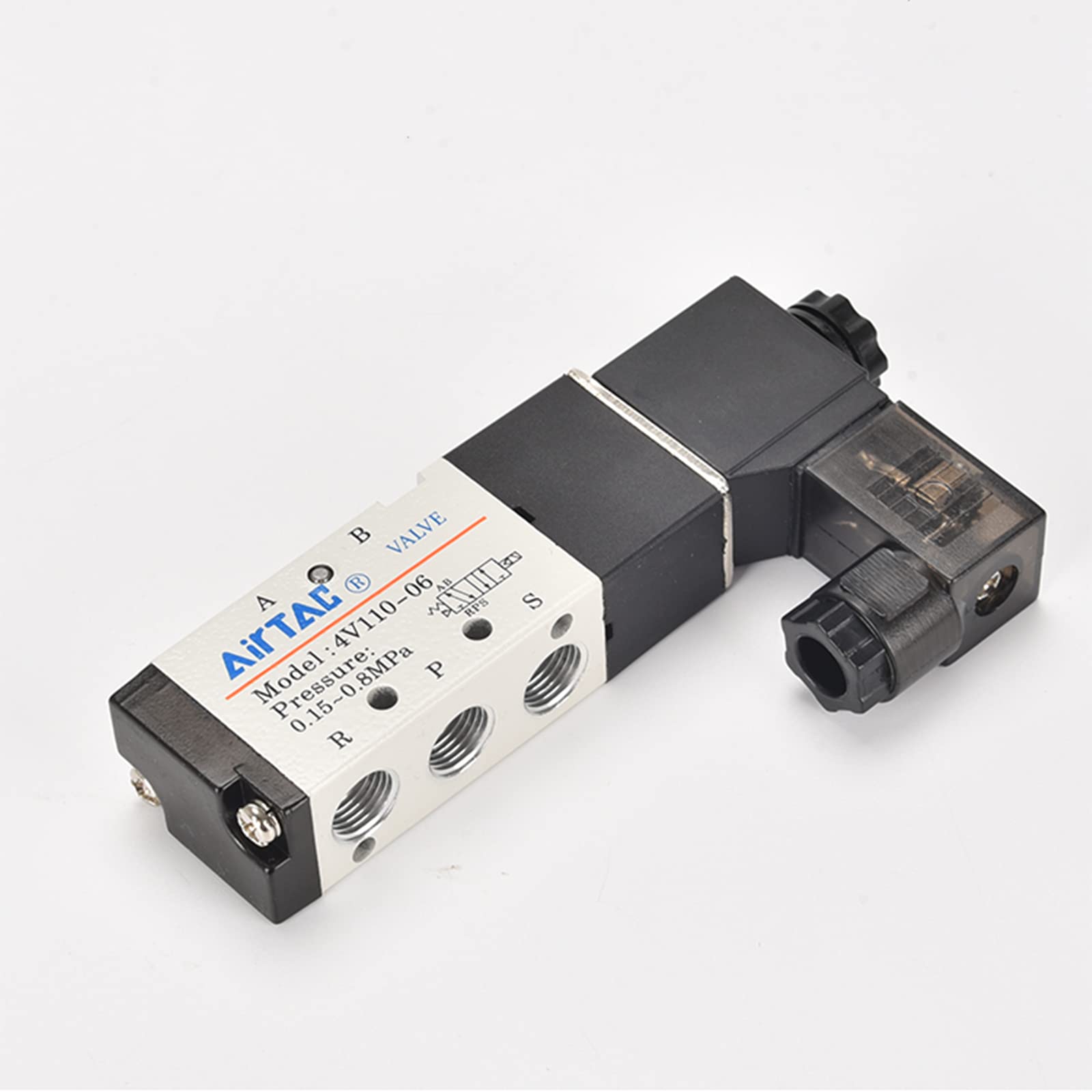

Airtac 4V110-06 AC220V Solenoid Valve

Product Parameters

• Brand: Airtac
• Model: 4V110-06
• Function: 5/2 Way, Single Solenoid (Spring Return)
• Voltage: AC220V

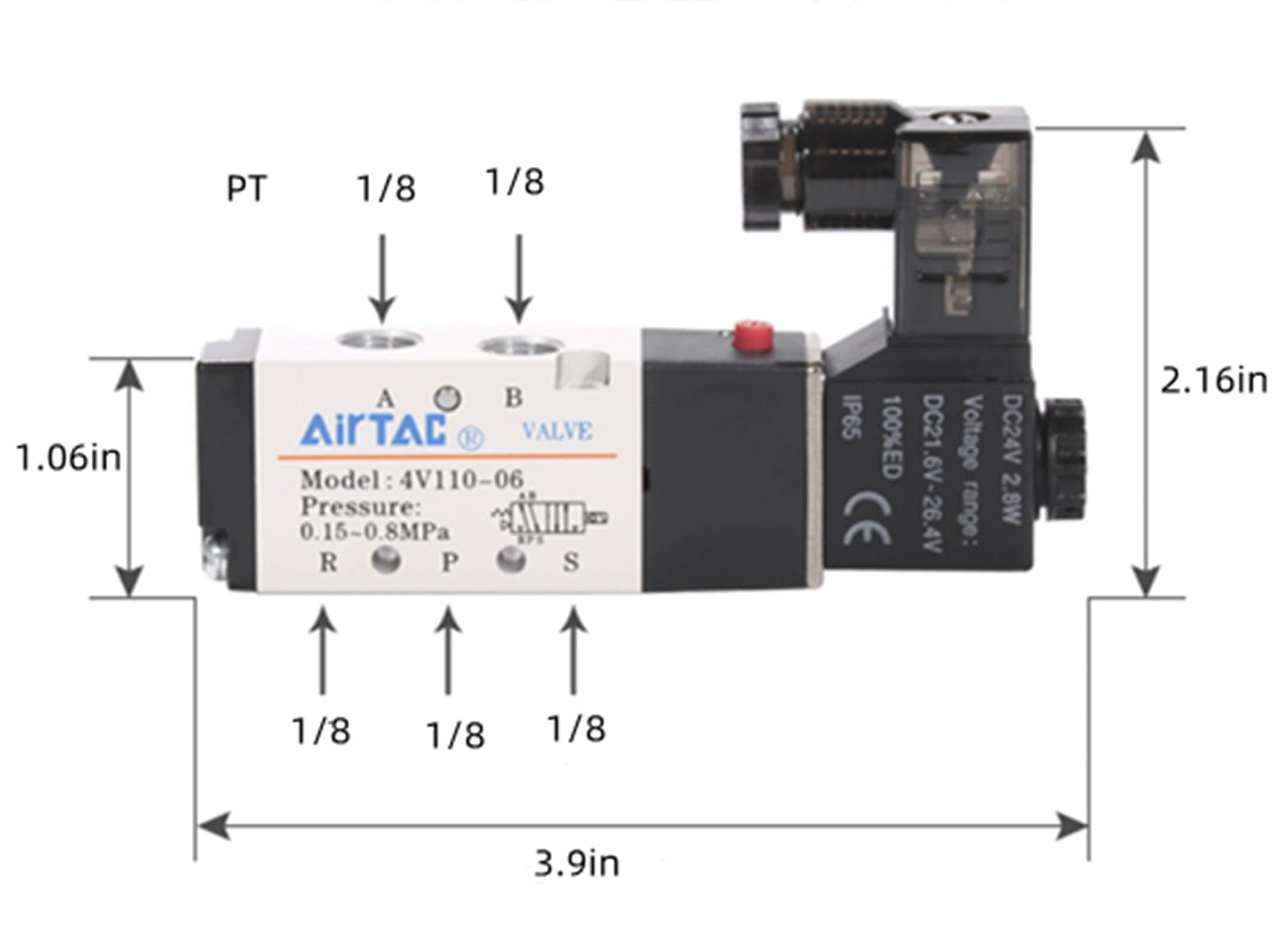

• Port Size: G1/8"
• Effective Area: 5.5 mm²
• Cv Value: 0.30
• Working Pressure: 0.15 – 0.8 MPa (1.5 – 8 bar)
• Temperature Range: -10°C ~ 50°C (14°F ~ 122°F)
• Medium: Filtered Air (40 μm)
• Operating Frequency: Up to 5 cycles/second

Application Scenarios

Designed for AC220V-powered automation lines and pneumatic control systems. The 5/2 single solenoid with spring return offers dependable switching and long service life.

Advantages

• High-strength AC220V coil
• Excellent voltage tolerance (±10%)
• Fast switching speed
• Corrosion-resistant aluminum body
• Supports individual or manifold mounting
