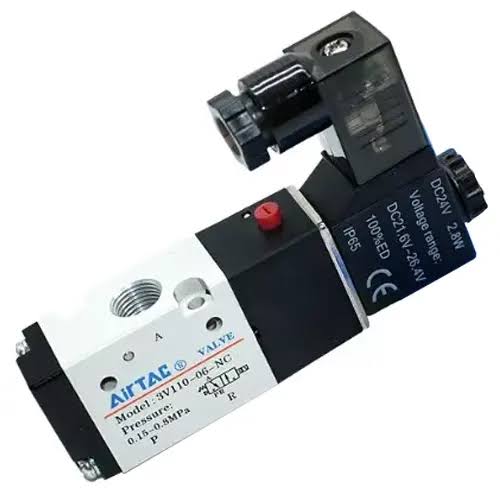

Airtac 3V110-06-NC Solenoid Valve (3/2 Way) - 3V11006NCBIG-

Product Overview

Upgrade your pneumatic control systems with the 3V11006NCBIG-W, a premium 3/2-way solenoid valve. Manufactured by airtac industrial co ltd, this 100 series valve delivers exceptional reliability, low friction resistance, and a long service life. Designed as a direct functional replacement for the SMC SYJ300 series, it provides high-performance automation for professional industrial applications.

Key Product Features

• Optimized Sliding Column Structure: Ensures excellent sealing performance and a highly sensitive response. The inner hole utilizes special processing technology to guarantee low starting pressure and extended durability.

• Space-Saving Design: Can be easily combined with a base to form an integrated valve group. This is particularly advantageous when paired with compact sda cylinders, helping you save valuable installation space in tight machinery layouts.

• Maintenance-Free Operation: No lubrication is required for standard operation. (Note: If oil lubrication is applied, it cannot be stopped mid-operation. ISO VG32 or equivalent oil is recommended.)

• Versatile Functionality: Features an external pilot guide mode (internal optional) and double control with memory function. The three-position solenoid valve also offers three central functions to choose from.

• Seamless Compatibility: Whether you are driving a standard sda pneumatic cylinder or upgrading older systems, this valve offers effortless integration.

Technical Specifications

Internal Structure & Components

Understanding the robust construction of your valve ensures easier maintenance. The unit consists of precision-engineered parts:

1. Fixed iron / 2. Manual pin / 3. Spring / 4. Special-shaped O-ring / 5. Guide body / 6. Special-shaped O-ring / 7. Axis / 8. O-ring / 9. Ontology (Body) / 10. Spring / 11. Anti-drain pad / 12. Bottom cover / 13. Round head screws / 14. Wear ring / 15. Piston / 16. Countersunk screws / 17. O-ring / 18. Movable iron / 19. Coil / 20. Retaining nut / 21. Terminals.

• Replacement Solenoid Valve Spool Accessory: 3V110-002-P1 Spool

Click to download Airtac product catalog

Product Features

1. Pilot guide mode: optional internal or external

2. Sliding column structure: good sealing, sensitive response

3. Three-position solenoid valve has three central functions to choose from

4. Double control solenoid valve with memory function;

5. The inner hole adopts special processing technology, low friction resistance, low starting pressure and long service life

6. No need to lubricate

7. It can form an integrated valve group with the base, saving installation space

The Airtac 3V100 valve series is a functional replacement for the SMC SYJ300 series.

Global Quality & Supply Support

When you purchase this component, you are investing in global reliability. Customers across North America trust the robust quality standards set by airtac usa, and this 3V100 series valve perfectly aligns with the high-performance expectations demanded by airtac usa networks. Furthermore, our global reach ensures seamless support in manufacturing hubs worldwide, with strategic regional entities like airtac industrial m sdn bhd guaranteeing rapid deployment and reliability for your automation projects.
