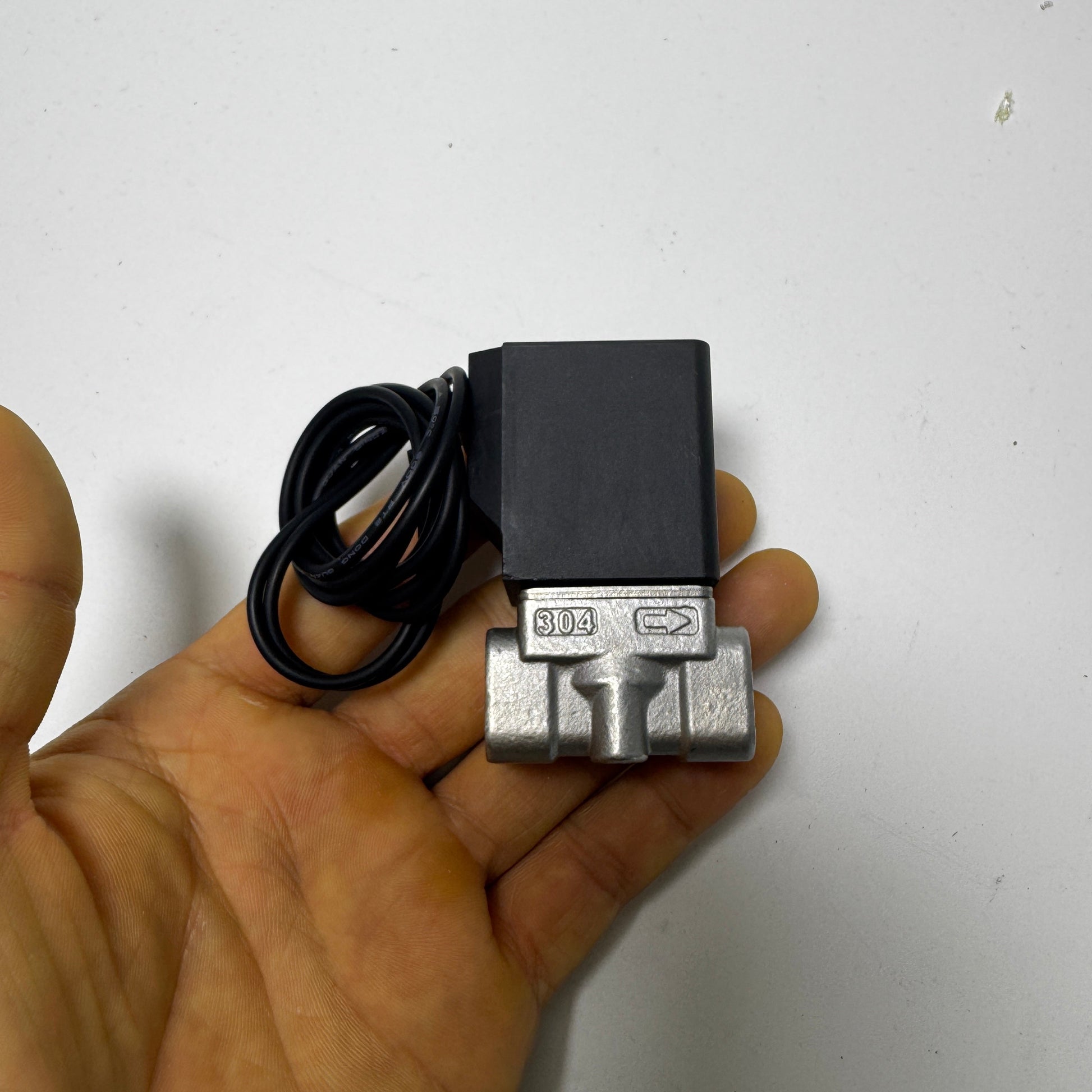

Airtac 2SAX030-06: 2-way solenoid valve - 2SAX03006AI

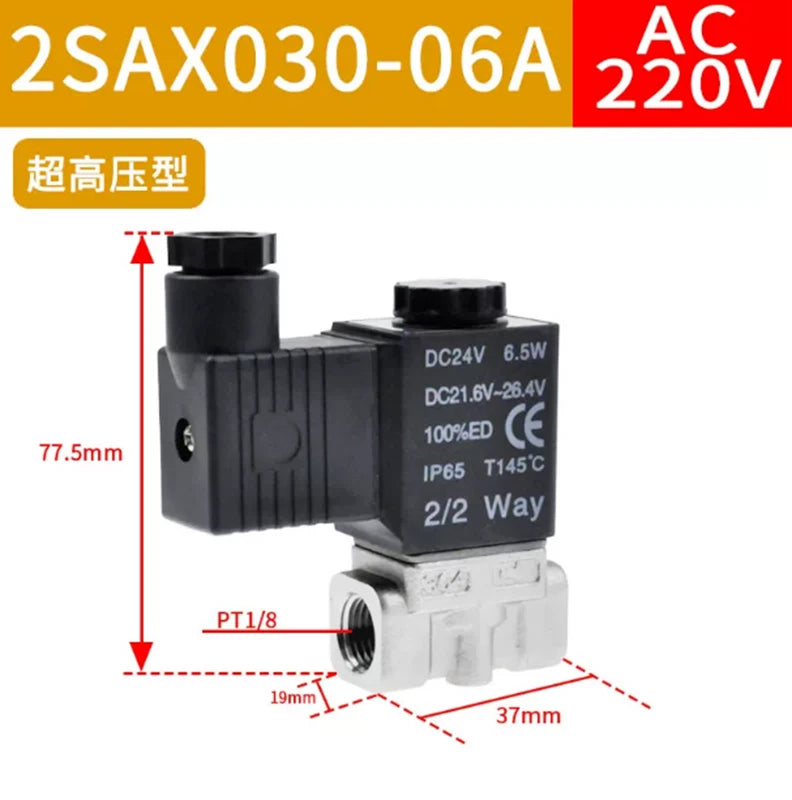

Specifications: 2 port two-position normally closed solenoid valve Pressure conditions: ultra-high pressure type Series: 030 series Nozzle caliber: 1/8" Coil voltage: AC220V Power connection mode: outlet type Tooth type: PT tooth

Click to download Airtac product catalog

Product Features

1. Direct-acting normally closed two-position two-way solenoid valve, high sensitivity, can quickly switch direction;

2, a wide range of pressure, high pressure (X), high pressure (H), standard large capacity (L), large capacity (T) to choose from;

3. Small size. Light weight, installation. Easy disassembly.

4. The valve body is made of SUS304, and the coil heat resistance grade is Class B. The standard sealing material is FPM-F. For other materials, please contact us.

5. The protection grade is IP65, and the guard ring or terminal electrical entrance can be selected.

The Airtac 2S valve series is a functional replacement for the SMC VX2 series.

The Airtac 2S series has been updated to the Airtac 2SA series.
