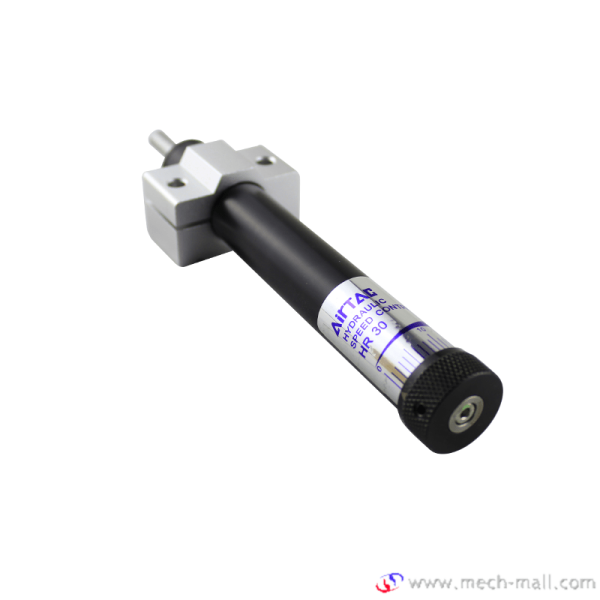

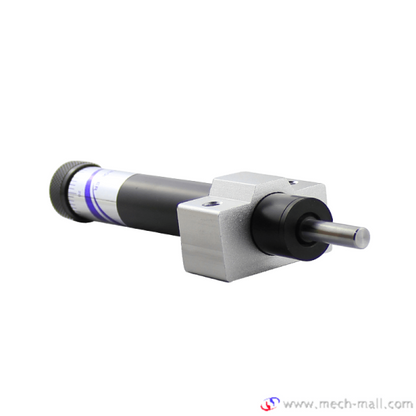

Airtac HR:Auxiliary Components – Hydraulic Speed Controller-Airtac HR30

Name: Airtac HR:Auxiliary Components – Hydraulic Speed Controller-Airtac HR30
Brand: AirTAC
Price: 144.40 USD
Availability: InStock

$144.40 USD

Sale Sold out

Taxes included.

Adjustable oil pressure governor/stroke 80mm/ Auxiliary Components — Hydraulic Speed Regulator

SKU: HR30

Specification

Model	Maximum stroke (mm)	Maximum load (kgf)	Adjustable speed range (m/s)	Allowable impact kinetic energy (kgf.m)	Temperature (℃)
HR15	15	15~550	0.5~30 (load 100kg)	0.23	-10~80
HR30	30	15~550	0.5~30 (load 100kg)	0.23	-10~80
HR60	60	15~550	0.5~30 (load 100kg)	0.23	-10~80
HR80	80	15~550	0.5~30 (load 100kg)	0.23	-10~80
HR100	100	15~550	0.5~30 (load 100kg)	0.23	-10~80

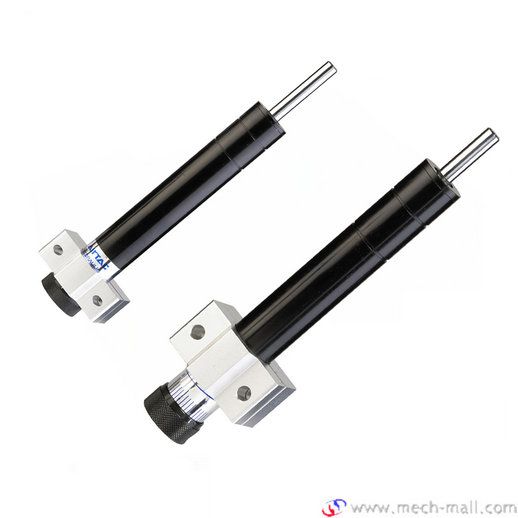

Construction of AirTAC HR Series Hydraulic Speed Stabilizers

Shock Absorber Body (Housing): The housing is the external component of the AirTAC HR series. It is typically a cylindrical tubular structure made of high-strength materials such as steel, aluminum, or alloy. The body serves to protect the internal components and functions as a reservoir for the hydraulic oil.

Piston (Internal Cylinder): The AirTAC HR stabilizer contains a piston that moves within the tube. Constructed from durable materials, the piston's shape and dimensions are precision-engineered to travel smoothly inside the housing and generate the necessary damping force.

Hydraulic Oil: The HR series is filled with high-grade hydraulic oil or specialized fluids featuring anti-oxidation and high-temperature resistance. The hydraulic oil is used to transfer the force from the piston to the housing and effectively absorb impact energy.

Damping Valve: AirTAC HR stabilizers are equipped with a damping valve that regulates the flow rate of the hydraulic oil passing through the piston, thereby controlling the stroke speed. Depending on the specific model and application requirements, the damping valve can be either adjustable or fixed.

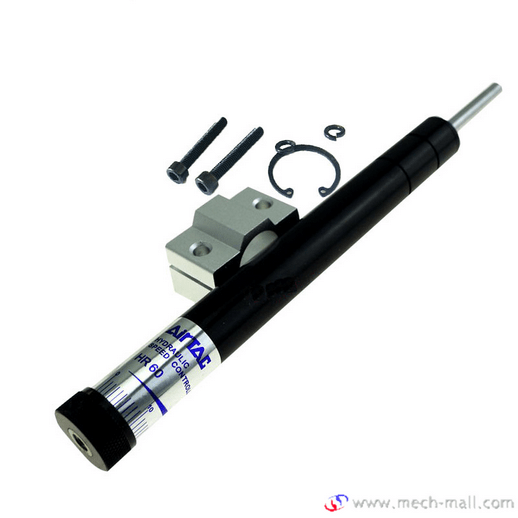

Mounting Accessories: To ensure easy integration into various surfaces or equipment, AirTAC HR stabilizers may come with mounting accessories such as base plates, rubber gaskets, or mounting screws.
