Airtac DPS: Digital Display Pressure Switch - DPSP1-10032T

Digital display pressure switch, NPN output type, plug-in connector electrical entry, -14.5 psi - 145 psi measurement range, 2m wire length, male thread NPT 1/8; female thread: 10-32UNFMounting Accessories Included F-DPSEB Panel mount adapter front protective cover F-DPSLB Mounting bracket

Click here to access CAD models of this component

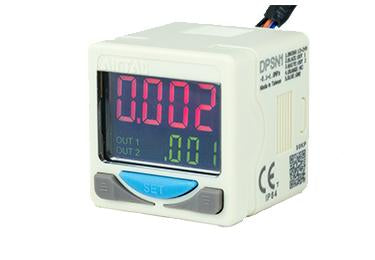

The Airtac DPS Series Digital Display Pressure Sensor
The Airtac DPS Series Digital Display Pressure Sensor is designed for accurate, real-time pressure monitoring in pneumatic and compressed air systems.

Equipped with a clear LED display and precise electronic sensing technology, the DPS series offers high stability, fast response, and easy adjustment for industrial automation, CNC machinery, packaging equipment, and laboratory test setups.

Key Features
• High Precision Sensing – Ensures accurate pressure readings with minimal deviation.
• Digital LED Display – Provides clear, real-time pressure measurement for operators.
• Compact Design – Space-efficient structure ideal for confined installations.
• Adjustable Settings – User-friendly configuration for desired pressure limits.
• Fast Response Time – Allows timely detection of fluctuations in pneumatic systems.
• Signal Output – Available with NPN or PNP output for automated control systems.
• Versatile Mounting – Suitable for panel-mount or inline installations.

Technical Specifications
• Series: Airtac DPS Series Electronic Digital Pressure Sensor
• Type: Pneumatic pressure switch & monitoring device
• Pressure Range: –100 kPa to 1 MPa (model specific)
• Accuracy: ±1% F.S.
• Supply Voltage: DC12–24V
• Operating Medium: Compressed air & neutral gases
• Operating Temperature: 0 °C to 50 °C
• Body Material: High-quality engineering plastics / aluminum alloy

Typical Applications
- Automation Lines: Real-time pressure feedback for system safety.
- CNC Machinery: Ensuring consistent air pressure for tool changers.
- Packaging Equipment: Monitoring vacuum levels or positive pressure.
- Laboratory Testing: Precise measurement for pneumatic experiments.
